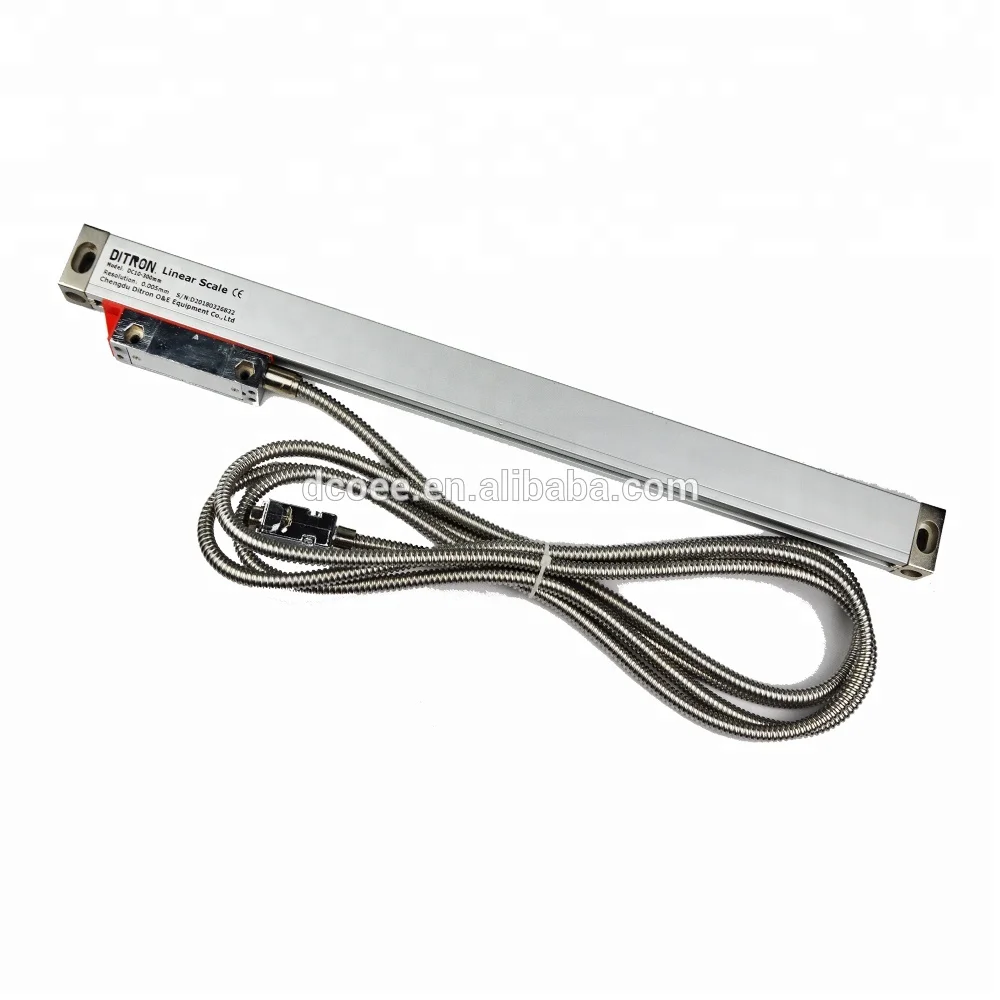

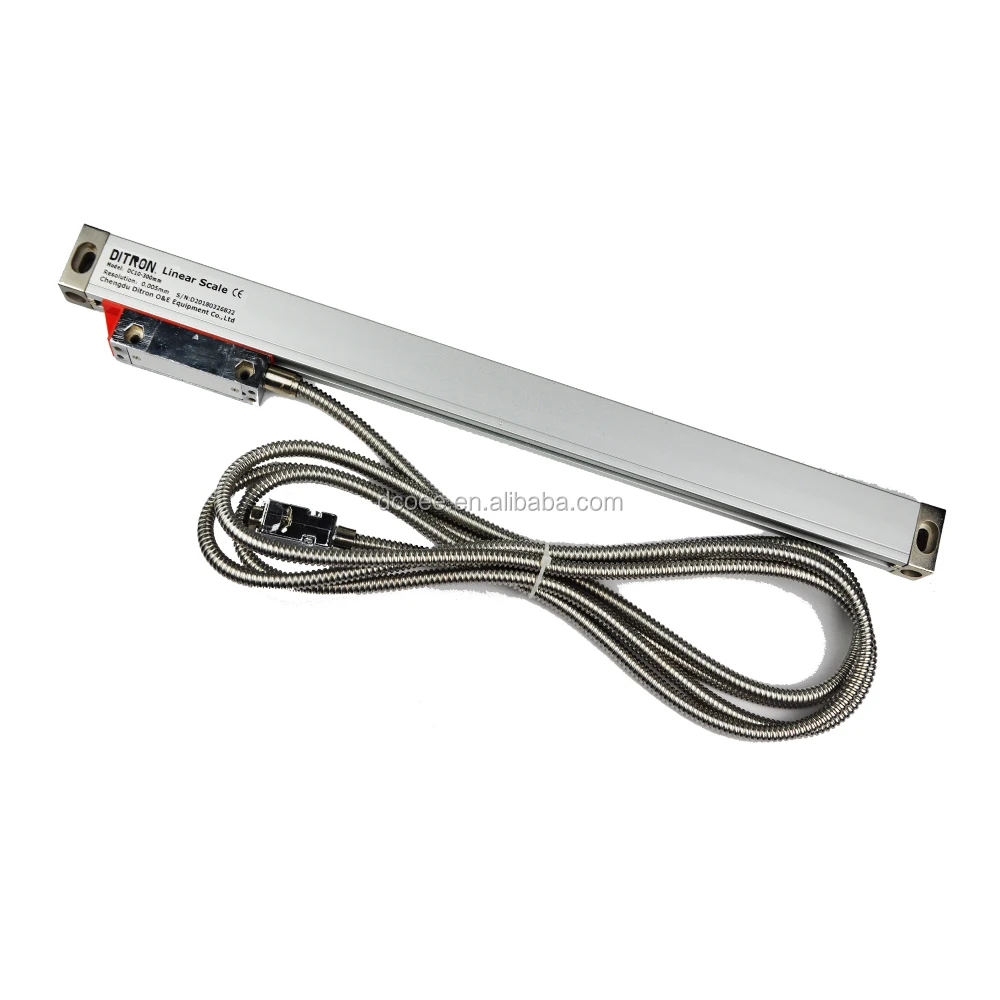

1 um / Linear encoder Ditron Sensor for Milling Machinr
- Category: >>>
- Supplier: Chengdu Ditron Opto-Electronics Equipment Ltd.
Share on (544567772):
Product Overview
Description
Product Description

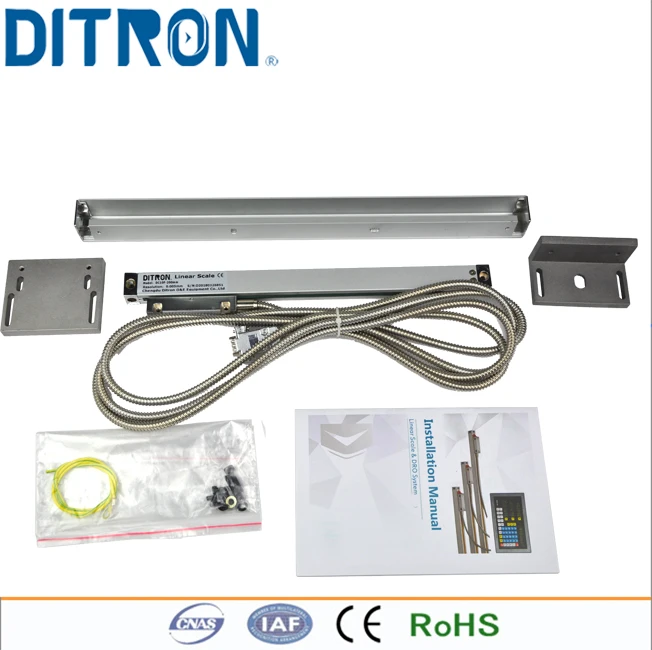

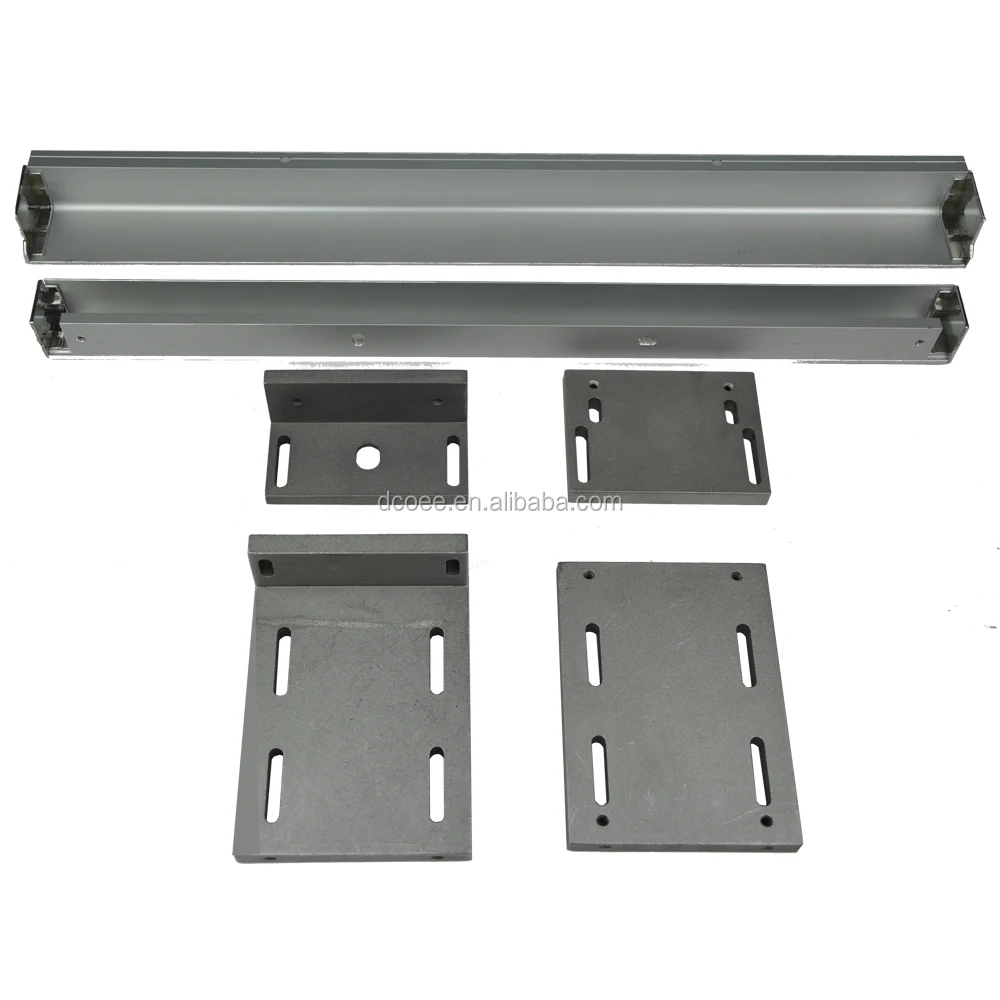

Linear Scale(One full set includes:linear scale,screws,dust cover,operation manual,mounting annexes)
MODEL: DC10(5um),DC11(1um)(50mm-1100mm): the series of Universal scale,Resolution:10um,5um,1um,0.5um,0.25um,0.1um
DC10F(5um)(50mm-600mm):the series of Slim Size linear scale.Resolution:5um,1um,0.5um
DC20(5um),DC21(1um)(1100-3000mm):Incremental linear scale.Resolution:5um,1um,0.5um
MODEL:
DC10 (50mm—1000mm,5um)
DC11 (50mm—1000mm,1um)
DC20 (1100mm—3000mm,5um)
DC21 (1100mm—3000mm,1um)
Some specification:
Measuring range:50mm-3000mm
Grating space:20um,10um
Infrared wave length:88omm
Rolling system: vertical five bearing rolling system
Output signal: TTL,EIA-422-A(RS-422),~1VPP
Resolution:1um,5um,0.5um,0.1um,0.2um
Environment temperature:-10~45°C
humidity:<=90%
working speed:(resolution)>=5um:>=60m/min
<=1um:>=20m/min
Superiority:
1)The reading head adopts ball bearing to position and guide with high sensitivity & long life.
2) Adopting metrology grating as measuring datum with high accuracy.
3)Adopting sealed structure that has reliable performance & is convenient for installation.
4)Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision
5)Individualized components makes it very easy to install, maintain and repair the linear Encoder
