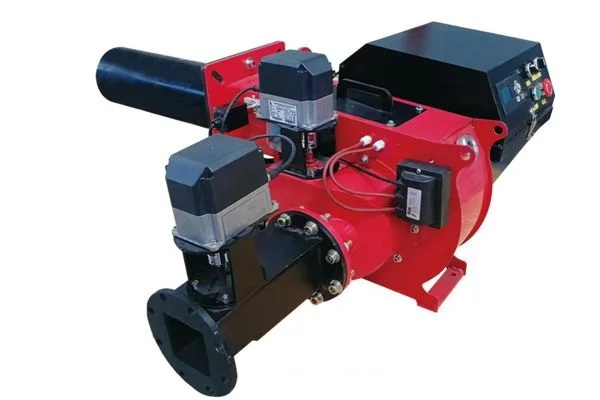

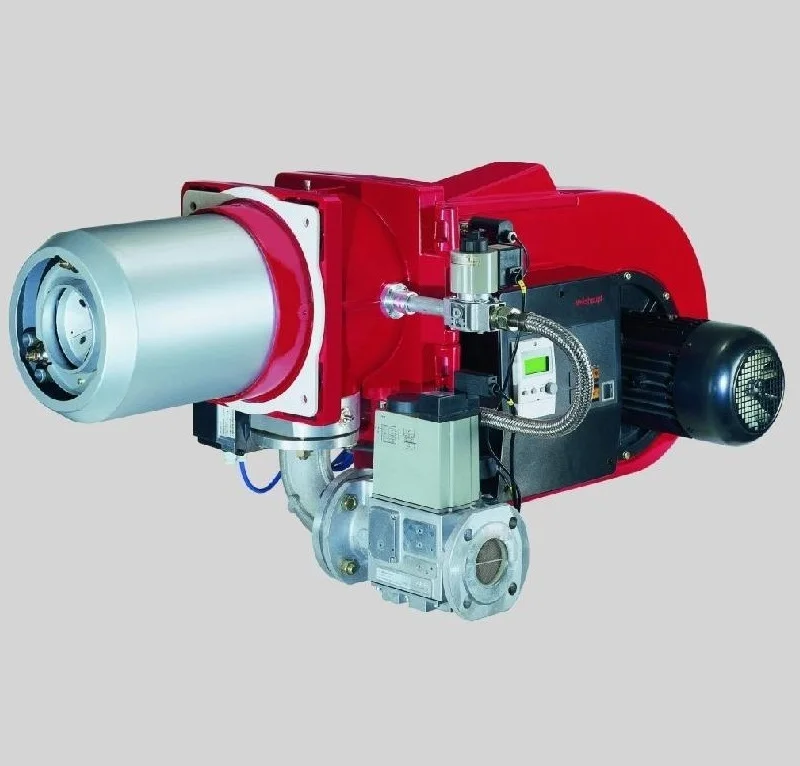

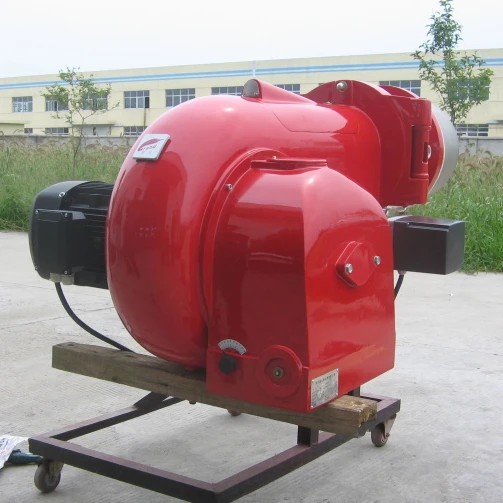

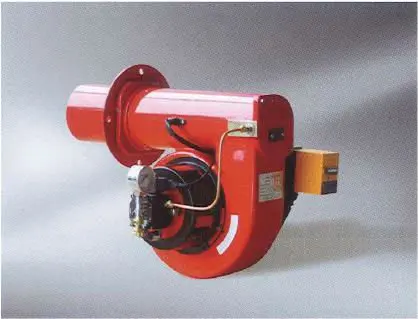

Light Oil Burner Of The Boiler

Product Overview

Description

We have many kinds of oil burners.

The specifications are below:

Item	Burner output	Width	Height	Thk	Weight	Air consumption
	kW(kcal/h)	mm	mm	mm	kg	m3
ZJ-300	190-465	630	400	480	32.2	3.8-9.3
ZJ-400	300-697	670	450	530	42.8	5.8-13.9
ZJ-600	486-1279	710	500	580	52.9	15.9-23.8





Composition:

1.   Burner fan

2.   Micro pressure gauge

3.   Burner nozzle

4.   Photoelectric switch

5.   Ball valve

6.   Fire solenoid valve

7.   Small fire solenoid valve

8.   Igniter

9.   Mother fire solenoid valve

10. Tile presssure switch

11. Micro pressure gauge
