Тандемные осевые закрытые Грузовые прицепы 10x5x6 с гидравлическим дисковым тормозом
- Category: >>>
- Supplier: G & W World Trading Co. Ltd.
Share on (544892219):
Product Overview
Description

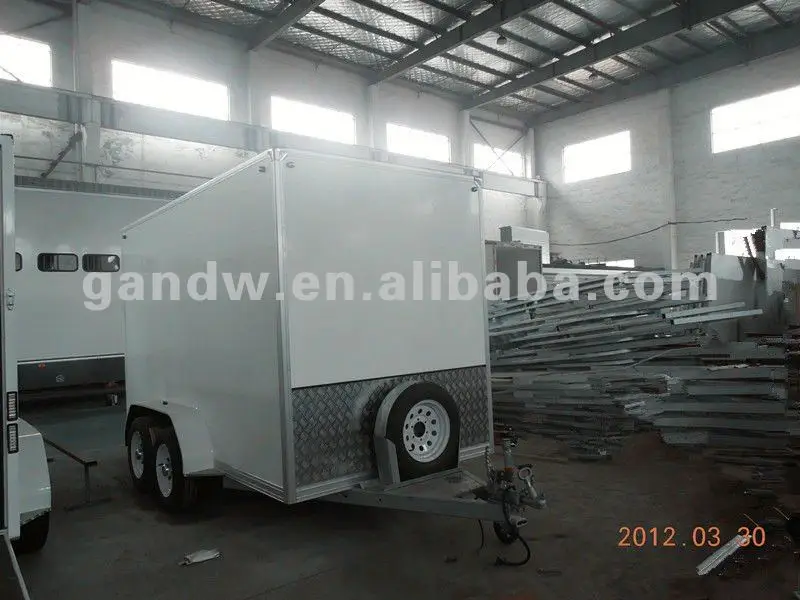

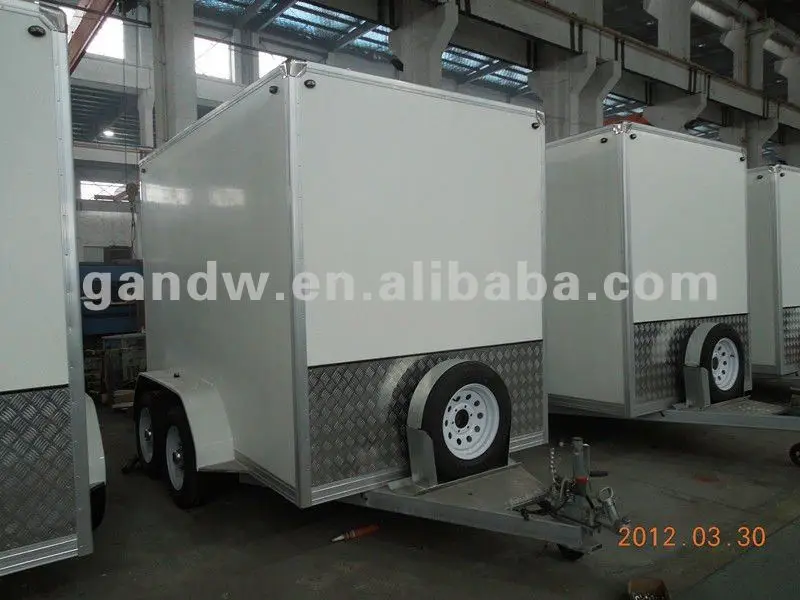

Tandem Axles Enclosed Cargo Trailer 10x5x6 With Hydraulic Disc Brakes
| Over Dimension | (LxWxH:mm):4248x1924x2238 |
| External Dimension | (LxWxH:mm):3048x1524x1878 |
| Inner Dimension | (LxWxH:mm):2988x1464x1793 |
| Trailer Weight | 750 KGS |
| Max Payload | 1250 KGS |
| Chassis | Hot dipped galvanised, 50x50x2.5mm, 70x50x3mm |
| Safety chain | Safety chain D-ring, d=10mm, weled chain 2500kgs, 550mm length |
| Coupler | D= 50mm load 3000kg , with hand brake lockable |
| Brake | Hydraulic disc brakes or electric drum brake |
| Hand brake with soft axle function | |
| Shock brake (electric break away brake) | |
| Suspension | 5 leaf spring, 60x6x700or 80x80x5=d=25 rubber bar |
| Body frame | Tube 30x30x1.5mm, |
| Drawbar | 100x50x5mm, 1300mm |
| Body material | 1.5mm outer fiberglass, middle 31mm sponge, inner 1.2 fiberglass moulded in one pc with steel tube inside |
| Rim | 5hole /6hole 15X6J |
| Tire | 5pcs 195/70R15C, load 850kgs, tire is outside the box |
| Axle | 2pcs 20#square steel 40x40mm, |
| Axle distance | 840 mm |
| Mudguard | Fiberglass mudguard |
| Jack | BD-03A2 |
| Door | Rear ramp door with high quality spring assist |
| Floor | 3mm checker plate or 18mm plywood +1.5-3mm checker alu |
| Light | LED light, rear lights 2pcs, internal roof light 1pc |
| Outer view width light 2pcs, licence board light 1pc | |
| Plug | 7 pin plug round or flat |
| Spare wheel bracket | 1pc galvanised with lock in front |
| Alu decoration | Stainless steel wrapped corner, aluminum wrapped round corner and downside |
| Packing | 1x40'hq container can load 3pcs |
| Option | Alu roller shutter door |
| Rear ramp door with high quality spring assist or double open door | |
| Side door | |
| Square shape or V shape | |
| Break away switch with 12V battery | |
| Alloy wheel | |
| Gas strut for rear door |
