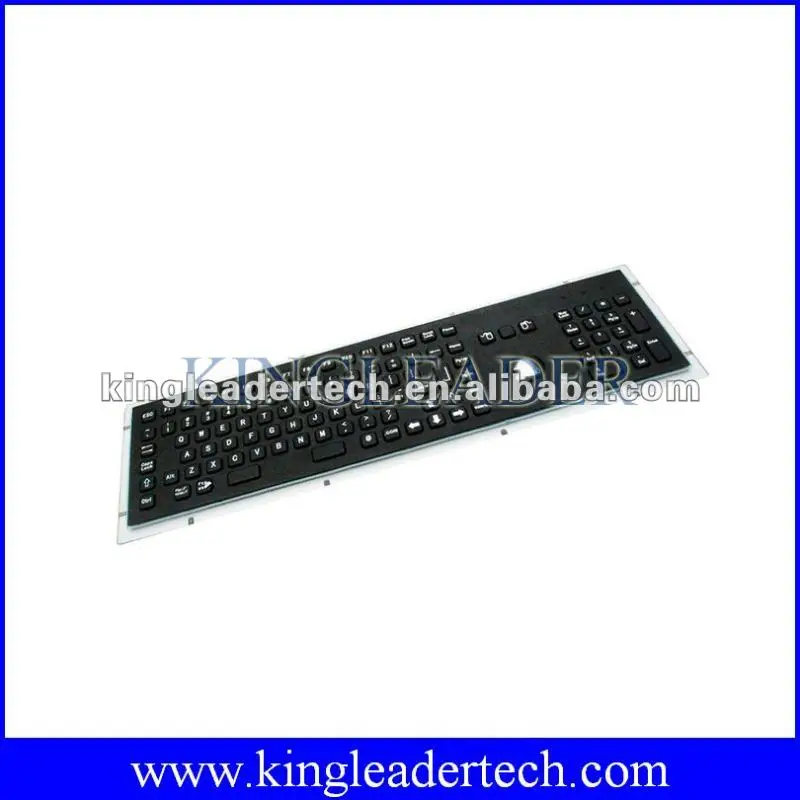

anti vandalism black metal keyboard with Function keys and number keypad

Product Description

-Electroplated black,rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 103 customizable, full travel keys(12 function keys), integrated OPTICAL trackball and numeric keypad

Key Features

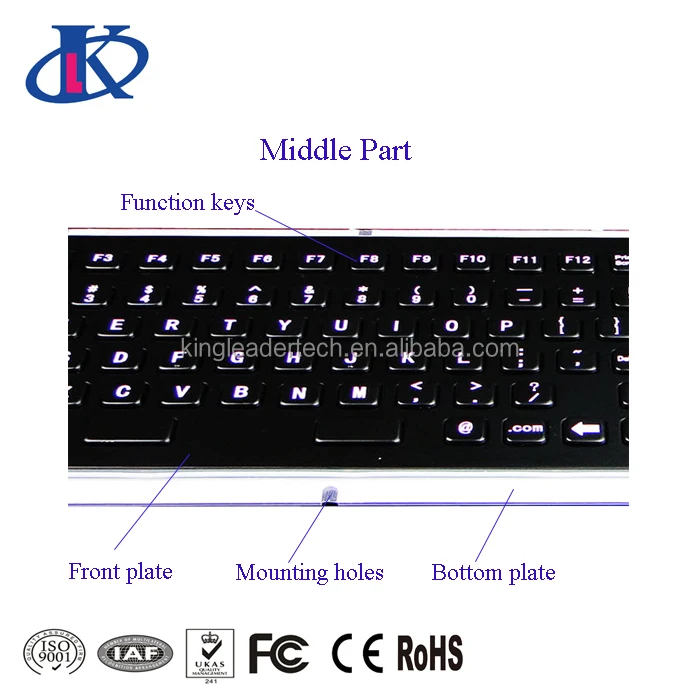

-103 keys(of them 12 function keys) panel mount

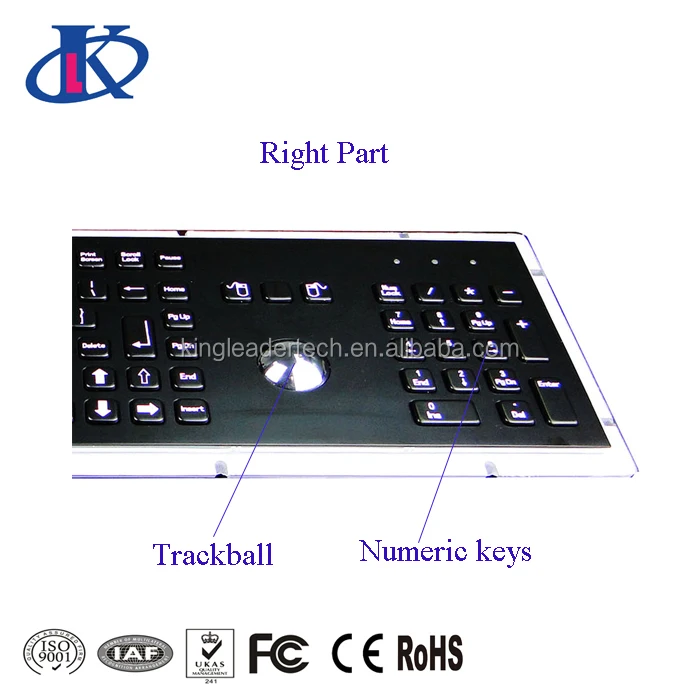

-Integrated optical trackball and numeric keypad
-Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feel
-Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
-Built from stainless steel, high vandal-proof.
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface for option
-Customizable layout upon customer’s request

Material

- Front panel & Keys: Brushed stainless steel

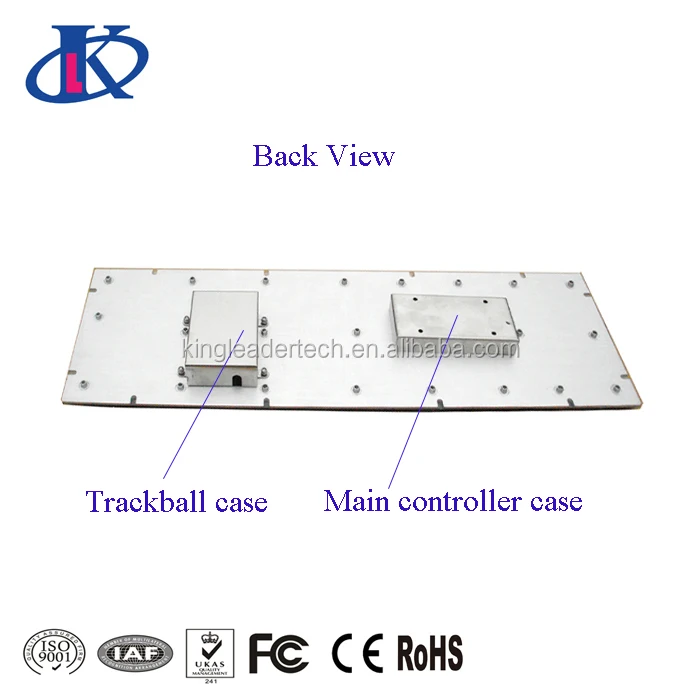

- Back panel: Aluminum alloy

- Trackball: Stainless steel(Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
  Emission: EN 50081-1
  Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics

- Operating temperature: -30º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification

-FCC,CE,RoHS

Dimension

-Front panel: 478.00 x 135.00
-Back panel: 502.00 x 159.00, thickness:49.10mm (to the tallest component)

Weight

-2.20 kgs
