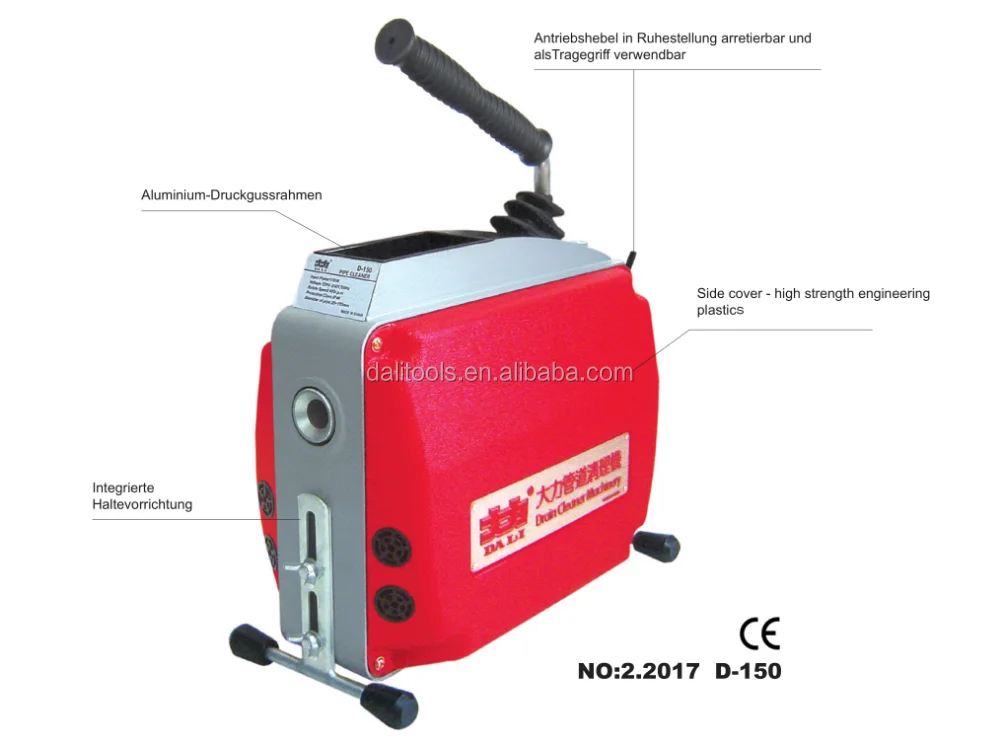

D-150 Professional Drain Cleaning Machine

Applicable for all kinds of indoor and outdoor pipes of 20-150mm.
Compact, robust and powerful,wide application scope, even by the toughest pipe obstructions
Support is provided, to adjust the height and angle of the machine to accommodate different working environment.

Main Features

1) Capable of running three different sizes soft shafts Φ8mm, Φ16mm and Φ22mm.

2) Direct up take from 16 mm and 22 mm spirals

3) Working length 5m with Ø 8 mm adaptor magazine.
4) Maximum working length 50 m, with Ø 16 mm sectional soft shafts(cables).
5) Maximum working length 60 m, with Ø 22 mm sectional soft shafts (cables).
\t
TECHNICAL DATA
\t
For Diameter of pipes:
\t
Φ20mm-150mm
\t
Input Power:
\t
570W
\t
Max working length:
\t
30M
\t
Rated Voltage:
\t
220-240 V;110V optional
\t
Soft Shaft Spec.:
\t
Φ8mm Φ16mm and Φ22mm
\t
Rated Frequency:
\t
50 Hz;60Hz optional
\t
Machine Weight:
\t
18.2Kg
\t
Rotate Speed:
\t
400 rpm
\t
Dimensions(L×W×H):
\t
47*21*46cm
\t
Protection Class:
\t
IP 44

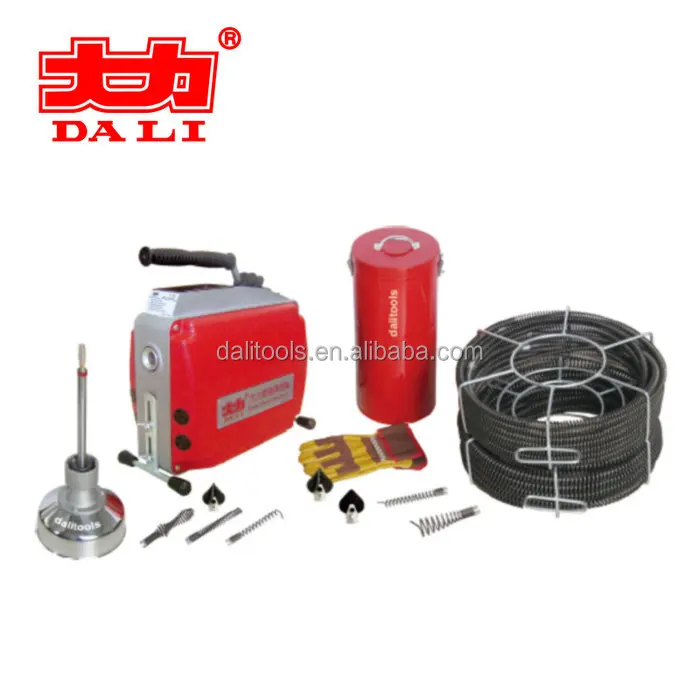

Accessories List
\t
Catalog No.
\t
Type.
\t
Description
\t
Quantity
\t
\t
\t
Main Machine
\t
1
\t
2.0141
\t
R-4-1
\t
Φ16mm*2.3M soft shafts
\t
6
\t
2.0142
\t
R-4-2
\t
Φ22mm*4.6M soft shafts
\t
3
\t
2.0211
\t
T-1-a
\t
Φ16mm Straight Auger
\t
1
\t
2.0231
\t
T-3-a
\t
Φ16mm Flexible Bulb Auger
\t
1
\t
2.0251
\t
T-5-a
\t
Φ16mm Retrieving Auger
\t
1
\t
2.0261
\t
T-6-a
\t
Φ16mm 4-Blade Cutter
\t
1
\t
2.0212
\t
T-1-b
\t
Φ22mm Straight Auger
\t
1
\t
2.0242
\t
T-4-b
\t
Φ22mm Funnel Auger
\t
1
\t
2.0262
\t
T-6-b
\t
Φ22mm 4-Blade Cutter
\t
1
\t
2.0272
\t
T-7-b
\t
Φ22mm Grease Cutter
\t
1
\t
2.0316
\t
F-1-f
\t
Φ430mm Soft shaft holder
\t
2
\t
2.0321
\t
F-2-a
\t
Φ8mm*5m Soft shaft combination
\t
1
\t
2.0331
\t
F-3-a
\t
Φ4 Key
\t
1
\t
2.0332
\t
F-3-b
\t
Φ5.5 Key
\t
1
\t
2.0351
\t
F-5-a
\t
Protection Gloves
\t
1
\t
2.0361
\t
F-6-a
\t
Accessory barrel
\t
1
Packing & Delivery
\t
Packaging
\t
Size
\t
64(L) * 50 (W) * 48 (D)
\t
Gross Weight
\t
46 KGS
\t
    Net Weight
\t
44 KGS
\t
Packaging Details
\t
The normal package is carton.
 1 set / carton
\t
Delivery
\t
Packaging
\t
1 set / carton
\t
      20' Quantity
\t
198 cartons
\t
40' Quantity
\t
396 cartons
\t
 40' H Quantity
\t
 468cartons
Related Products

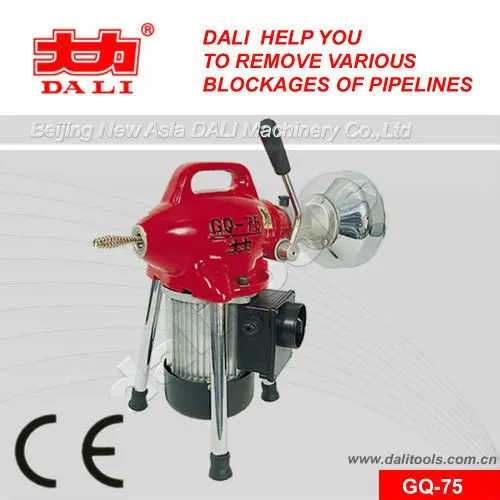

GQ-75 Drain Cleaner
