Y2 series three phase motor
- Category: >>>
- Supplier: Zhejiang Hongda Group Dafeng Electronics Co. Ltd.
Share on (545800969):
Product Overview
Description

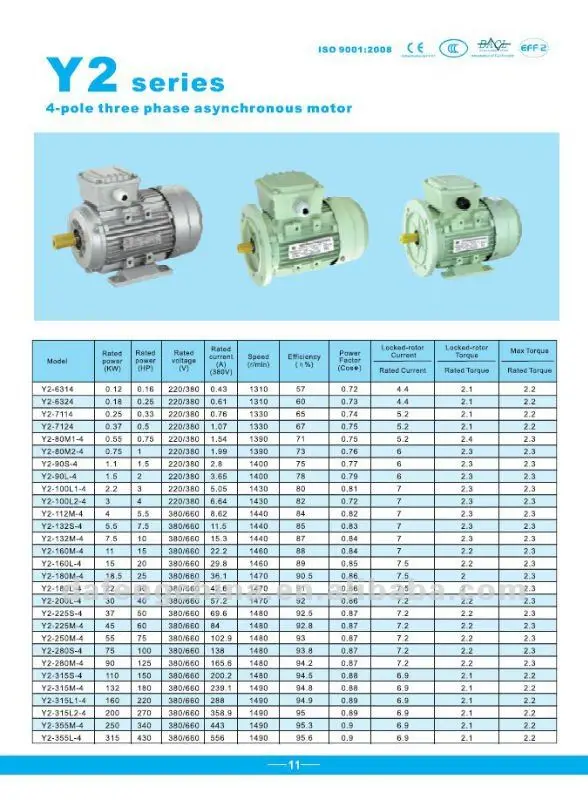

Y2 series three phase motor
Brief introduction:
Y2 series three-phase electrical motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
We can also supply aluminum housing type for frame size below IEC160.
We can supply cast rion housing type for frame size from 56-315.
Operating Conditions:
Ambient temperature: -35≤θ≤40
Altitude: Altitude should be lower than 1000meters above sea level.
Rated voltage: 380V Rated frequency: 50Hz
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Continuous (S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K (by resistance method).
Protection class: The main body of the motor is IP54
Cooling method: IC411.
Motor features:
1, Frame Size: 63-355;
2, Rated Output: 0.12-315 KW or 0.16—430 HP;
3, Rated Voltage: 220/380 V, 380/660 V or to be your request;
4, Rated Frenquency: 50 Hz ,60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10
6, Speed: 590 —2980 r/min
7, Model of CONEECTION: Y-Connection for 3 KW motor or less
Δ-Connection for 4 KW motor or more;
8, Mounting: B3, B5,B35,B34,B14
9, Current: 0.43—556 A (380V);
10, Duty: continunous (S1)
11, Insulation Class: B / F;
12, Protection Class: IP44 / IP54;
13, Cooling Method: ICO 141 Standard;
14, Ambient Temperature: -15°C—40°C
15, Altitude: No more than 1,000 meters above sea level;
16, Packing: Frame 63-112: Cartons
Frame 132-315: Wooden boxes
Y2 AC Asynchronous electric Motor
1)High efficiency energy saving
2)Large starting torque
3)Excellent performance
4)High reliability

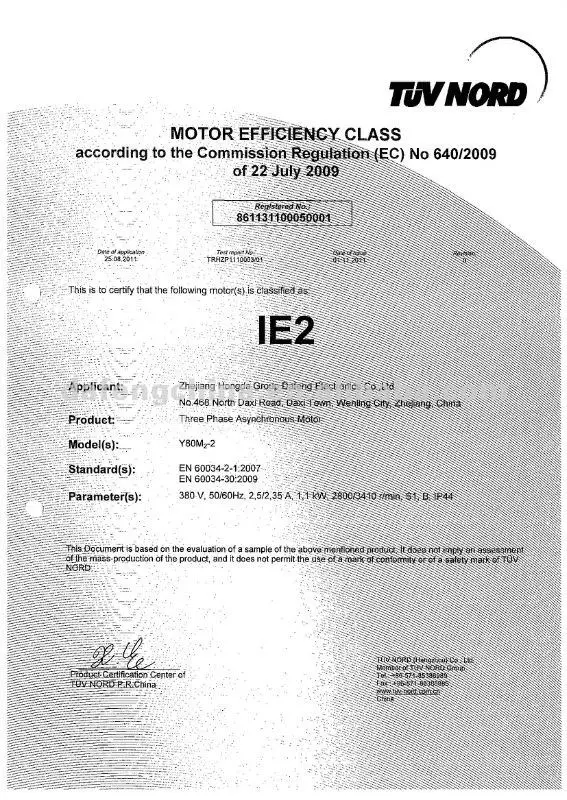

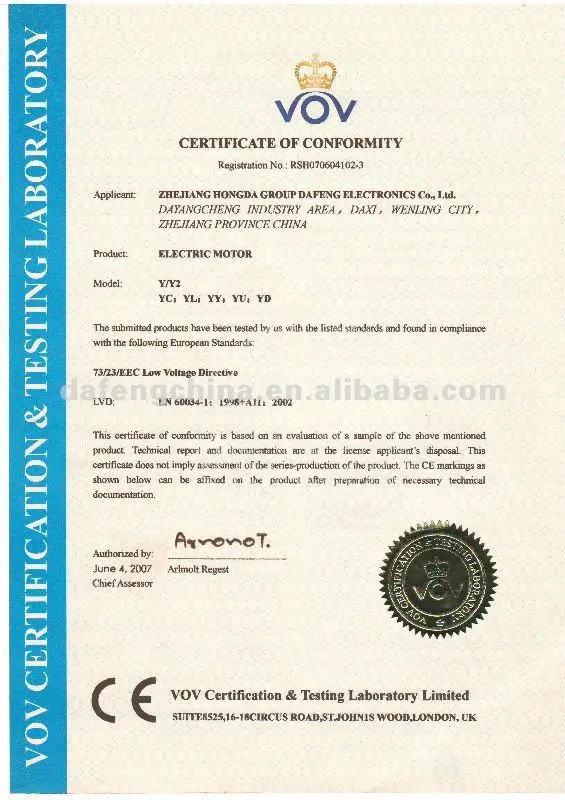

Certificate:
