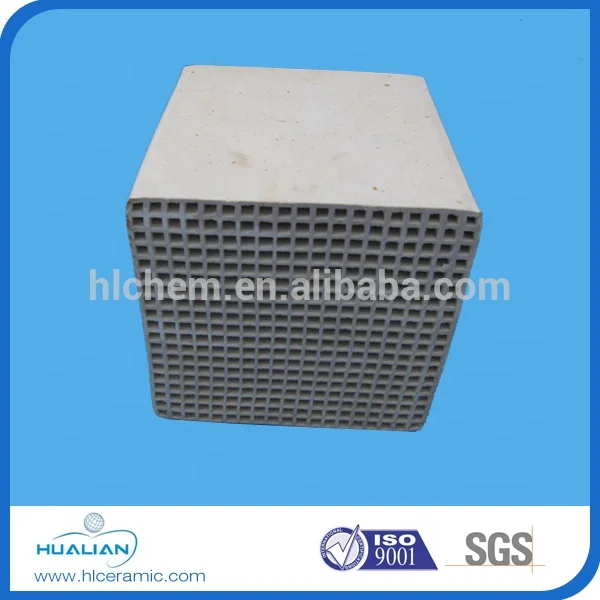

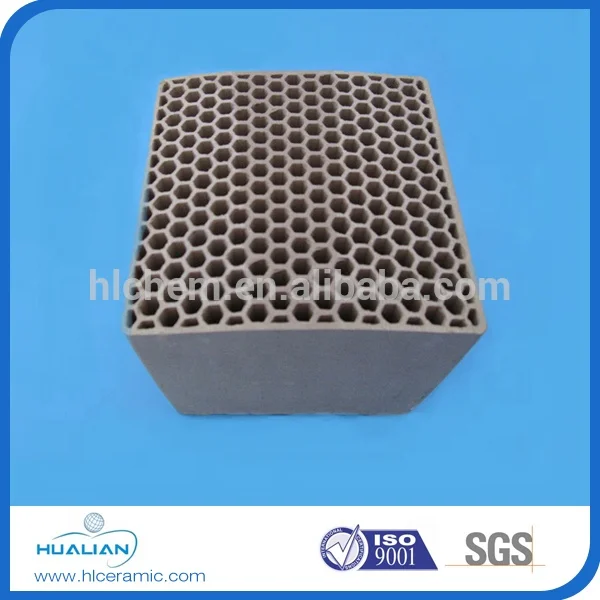

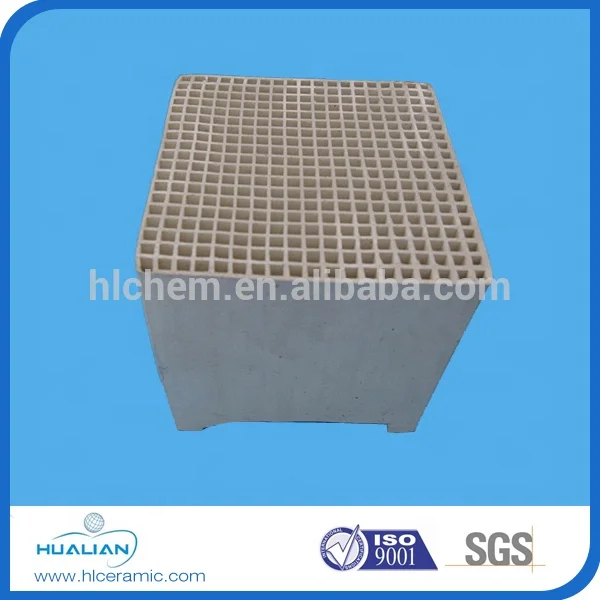

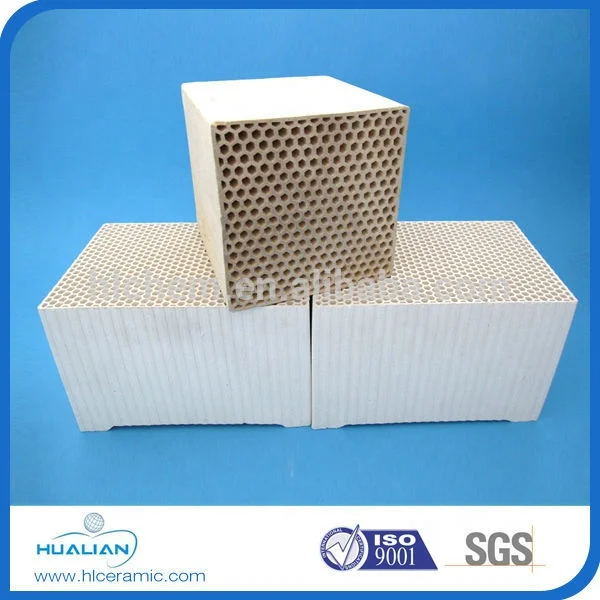

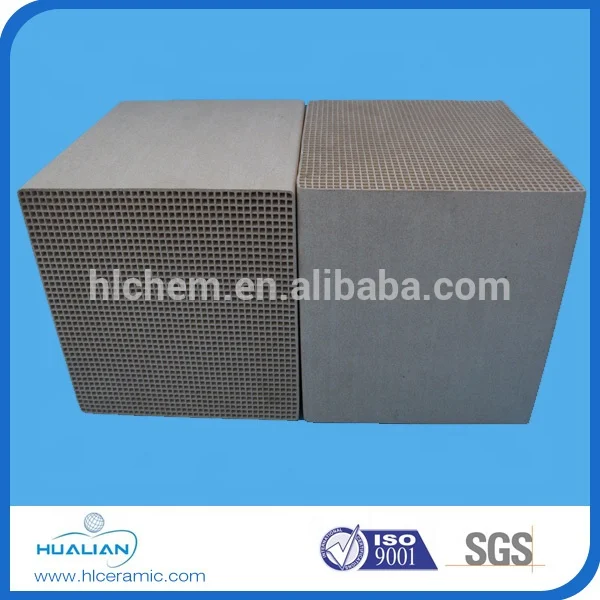

(150*150*300mm)High strength honeycomb ceramic heat accumulation substrate

Product Overview

Description

honeycomb ceramic heat accumulation substrate



Honeycomb ceramic are a new kind of industrial ceramic product developed in recent years. They have a large

surface area, higher air vent rate, good heat functions, stable chemical properties etc. At present, ceramic honey

-combs are being used to purify industrial waste gas, automobile emissions, eliminate noise, deal with waste

water, to dry air, incineration, used in the manufacture of infrared ray instruments, to filter metal liquids etc. All

ceramic honeycombs can be produced in conformance with customer requests.



The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly. At present, our products have already been approved by numerous iron and steel enterprise and exported to Japan, South Korea and Europe and America market.



Physical Prosperities

Index	Metric Unit	Value	British Unit	Value
Material Density	g/cm3	2.3-2.6	Lb/ft3	151
Average Linear Expansion (20-800)	10-6/k-1	<2.5
Special Heat Capacity	KJ/Kg	900-1200
Heat Conductivity	W/MK	1.8-3.0
Maximum Application Temp.	°C	1350		2450
Acid resist strength wt.loss	%	<4
Water Absorption	%	<5



 The Size and Specification

(mm)	Quantity of channels	Wall thickness(mm)	Channel Width(mm)	Surface area(m2/m3)	Void section (%)	Packaging density(kg/m3)	Weight per piece(kg)
150*150*300	25*25	1.0	4.96	580	68	696	4.7
150*150*300	40*40	0.7	3.03	891	65	814	5.5
150*150*300	50*50	0.6	2.39	1090	63	903	6.1
150*150*300	60*60	0.5	1.99	1303	63	932	6.3
150*100*100	40*40	1	2.5	784	49	799	1.2
150*100*100	33*33	1.1	3.0	691	52	750	1.13
150*100*100	20*20	2.0	5.0	392	49	692	1.04
100*100*100	40*40	1.0	2.5	784	49	810	0.81
100*100*100	33*33	1.1	3.0	691	52	750	0.75
100*100*100	20*20	2.0	5.0	392	49	680	0.68

 The product of other specifications can be prepared according to customer's requirement.
