Single extruder screw barrel for plastic extruder machine

Product Overview

Description

  We (OUSHENGDA) can offer you all kinds of screws and barrels you need ,and also repair old ones and design for you without drawings.





Single extruder screw barrel for plastic extruder machine
Diameter	45-120mm	Min.Order	1 set
Materials	38CrMoAIA 42CrMo(JIS SCM440) 9Cr18MoV sKD61	Discount	Available
Application	PP,PE,PS Film,Pipe,Sheet,Profile	Payment  Term	T/T, L/C
Technical  Process	1.Rough Machining 2.Quenching  and Tempering 3.Finish Machining 4.Nitriding 5.Spraying and welding with alloy power 6.Screw polishing	Technological  Parameter	Roughness	Ra 0.4um
			Hardness of Quenching  and Tempering	HB 240-280
			Depth of Nitride Layer	0.5~0.8mm
			Hardness of Nitride	HV 960-1060
			Alignment of Screw	0.015mm
Packing	Wood Case	Port Departure	Ningbo Port
Guarantee	Single extruder screw for plastic extruder machine : more than 2 years



Performance and specification for single extruder screw barrel for plastic extruder machine:



1)With more than 20 years' experience in plastic machinery,we have a well quality

control system.Screws are processed by high-precision special NC screw milling

machines to ensure high consistency extruding performance. We try our best to

lower the cost of your budget and supply high quality screw and barrel .The special

design of distribution cainet enlarges thrust bearing and adopts original bearings,

guaranteeing the long service life .

2)With suitable moulds,our screw and barrel can make PP,PS,PE FILM,SHEET

PIPE,PROFILE .

3)According to customer requirements , most reasonable screws and barrrels

can be configured to achieve optimal plasticization and logistic quality.

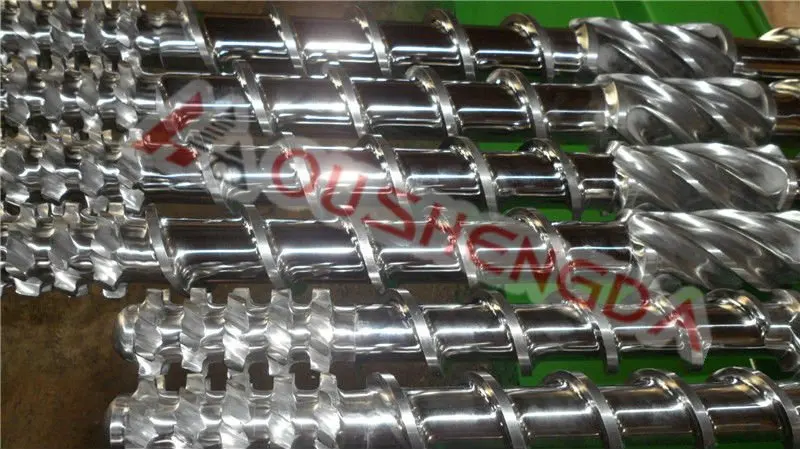

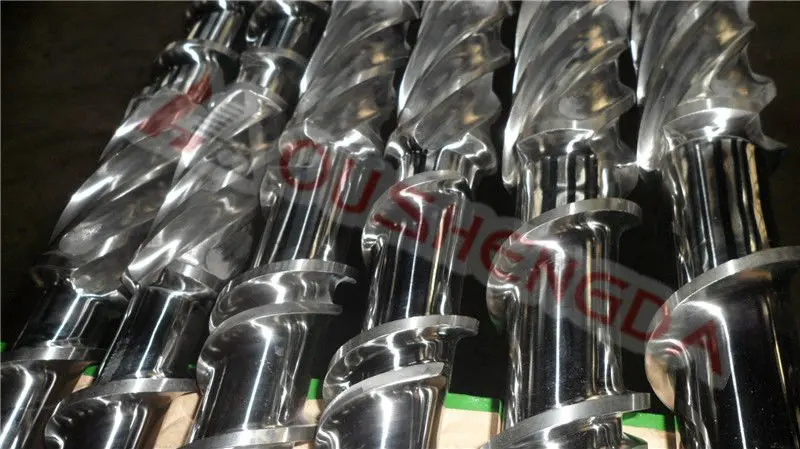

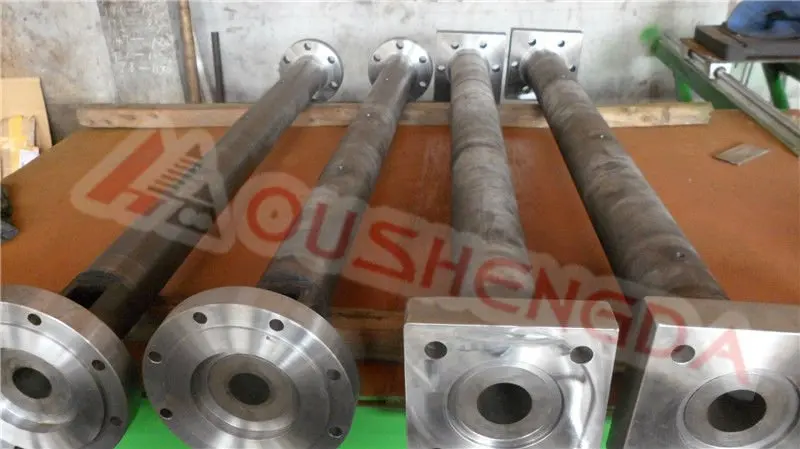

Single extruder screw barrel display:







 With the most extensive experience in the design of extrusion processing units,

our screws are custom designed to meet the demands of a broad range of applications and process requirements. Each design provides our Customer with the widest possible processing window. Cincinnati Milacron uses sophisticated computer modeling to design screws to meet your application. Information is provided by the Customer regarding the formulation, tooling, and desired throughput rate. This information is incorporated into the computer model to determine the optimal shape of eachzone on the screws.



 We can make any specification of extruder screw barrel and injection screw barrel for Haitian, Demag, Engle, Klausmaffei, Nigro bossi, arburg,NPM, BOY, Husky, Fanuc, billion, Sumitomo, Nippon Steel, Toshiba, Nissei, Mitsubishi and etc. We also can supply all types of screw and barrel according to your different requirements.
