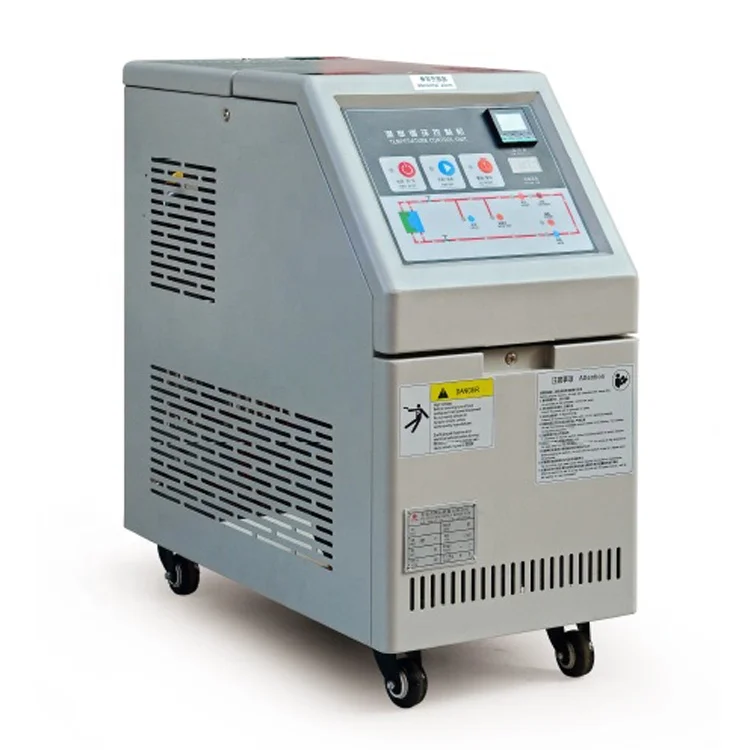

Регулятор температуры формы

Product Overview

Description

mould temperature controller:

1.PID adopted to control the temperature

2.Keeping the error within + / - 0.5degree

3.Six protective measures,pump protact



 Features:

 1.PID adopted to control the temperature ,keeping the error within  +0.5 or -0.5 ,keeping long  time constant temperature,high efficiency and energy saving.



2.Six protective measures:alarm for thermocouple open circuit,phase fault protect,pump protect,overheat protect,oil shortage protect.



3.Dual digital display shows the actual temperature and the set temperature.

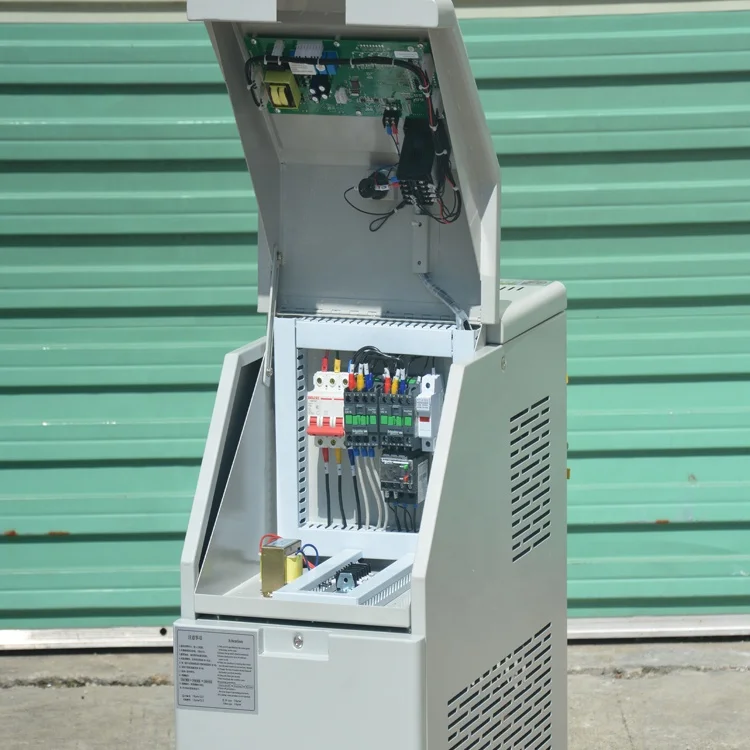

4.Microcomputer chip control panel with lighttouch swith to start the maching with only one press.



5.Visual and easy to operate,easy to maintain,



6.Exquisite appearance and small in size.

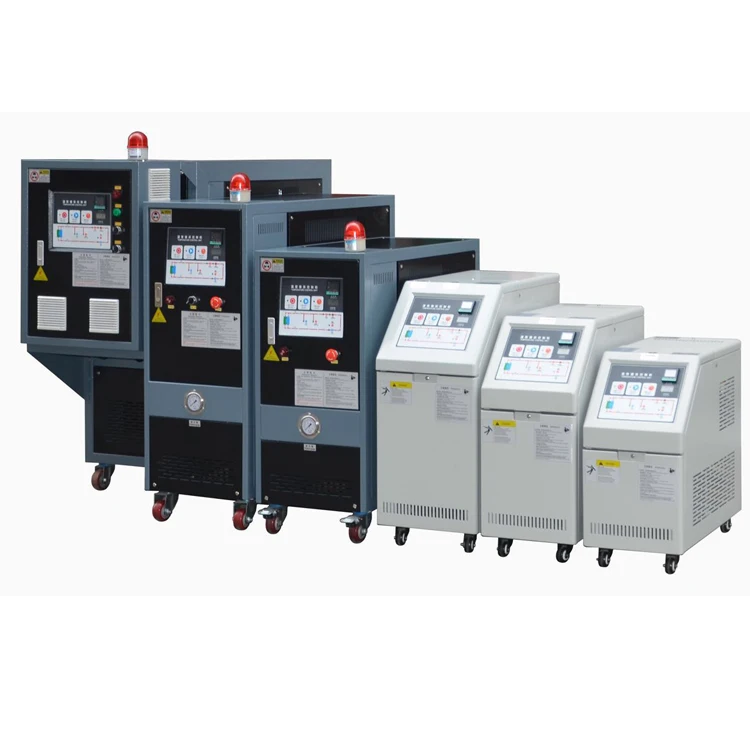

Model	Max.  Temp.	Pipe  heate (KW)	Pump power (KW)	Max.pump flow (L/min)	Max.pump pressure (Bar)	Heating tank number	Heating tank capacity (L)	Cooling method	Mould coupling (Inch)	Inlet/Outlet (Inch)	Dimensions (mm)	Weight (Kg)
GTM-06-W	120°C (140°C)	6	0.55	27	3.8	1	3.0	Direct	3/8”(2*2)	3/4 / 3/4	635*280*740	55
GTM-06W-D		6*2	0.55*2	27*2	3.8	2	3.0*2		3/8”(4*2)	3/4 / 3/4	655*510*740	95
GTM-09-W		9	0.75	42	5.0	1	3.0		3/8”(2*2)	3/4 / 3/4	655*280*740	60
GTM-09-W-D		9*2	0.75*2	42*2	5.0	2	3.0*2		3/8”(4*2)	3/4 / 3/4	655*510*740	105
GTM-12-W		12	1.5	74	6.2	2	6.0		3/8”(4*2)	1 / 1	695*340*815	120
GTM-24-W		24	2.8	130	8.0	2	7.4		1” (1*2)	1 / 1	870*360*930	140
GTM-36-W		36	4.0	170	8.0	4	17.7			1 / 1	980*415*930	150
