China Supplier Great Quality Dust Control Coal Machine Water Mist Sprayer For Air pollution In Industry

Product Overview

Description

China Supplier Great Quality Dust Control Coal Machine Water Mist Sprayer For Air pollution In Industry

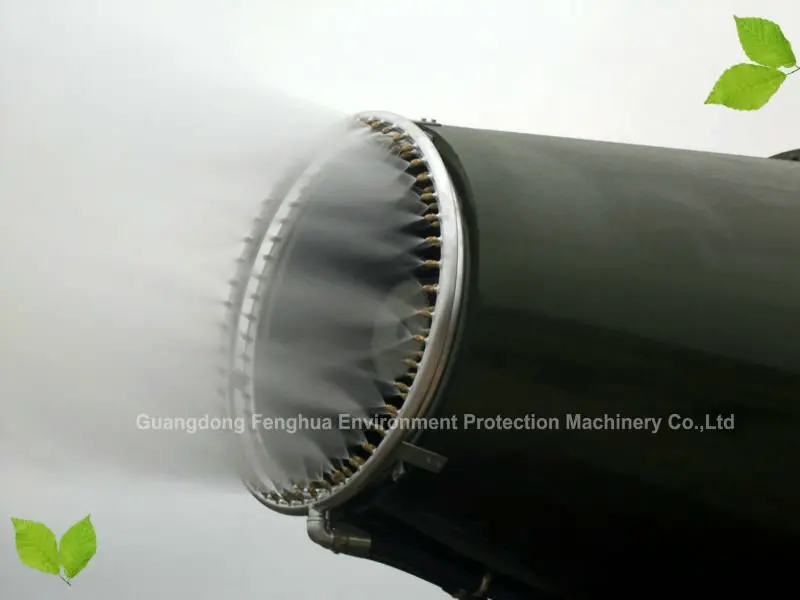

The DS-150 uses a series of specially-designed brass nozzles to atomize water droplets within arange of 50-300 microns, the optimum size for particle attraction and coverage area, then launches them with a powerful (90 KW)axial fan.



The ducted fan generates 4500 cubic meters of air flow per minute through the barrel, giving the unit a range of more than 150 meters.



Application

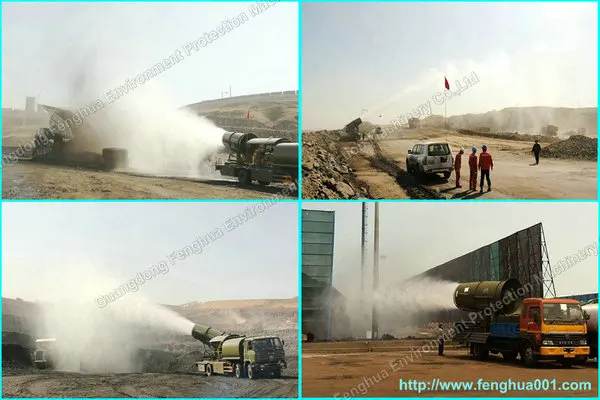

• Suppresses dust in open air (quarries, job-sites, squares, etc.);

• Suppresses dust concentrations (loading/unloading trucks, transfer by conveyor belt, unloading hoppers, etc.).

• Quarries and mines;

• Cement factories and steel mills;

• Demolition;

• Crushing machines;

• Storage and handling of bulk materials;

• Parks carbon storage;

• Discharge hoppers;

• Points of loading and unloading ships;

• Points fall in conveyor belts or transfer of material;



TYPE	DS-150
Throw	140-150m
Volume Flow	150-200L/min
Fog Droplet Size(adjustable )	50-300μm
Water Pressure(Mpa)	2.5-3.5Mpa
Water Pressure(bar)	25-40bar
Water Pressure(kg)	25-40kg
Motor/rpm	2900rpm
Horizontal Rotation Angle(adjustable )	340°
Pitching Angle(adjustable )	-10°-40°
Coverage Area	42390m2
Total Power	112KW
Product Size(L*W*H)	3130*1540*2800mm
Net Weight	1350kg
MOQ	1
Payment	deposit received by T/T; L/C at sight; ect
Diesel Generator Set Power	250kw
