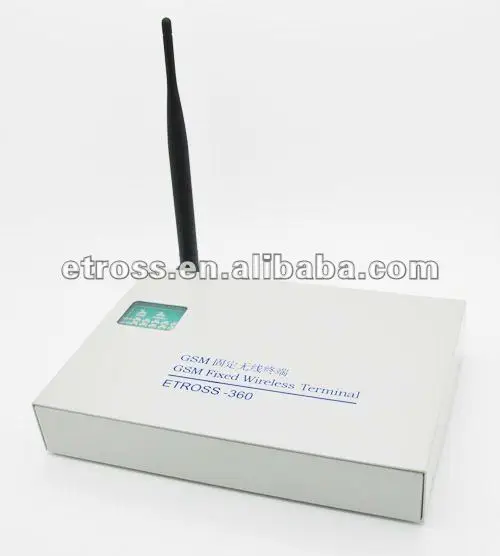

Конвертер GSM в Стационарный с 2 слотами для SIM карт

Product Overview

Description





Etross 360  GSM Fixed Wireless Terminal / Dialer / Phone line converter / Fixed Cellular Terminal / FWT / FCT





Brand: Etross or OEM brand
Model no.: Etross-360
Frequencies: GSM 900/1800Mhz Dual band





Features and Functions:
1) Simple to install and easy to maintain
2) Steady industrial module(MC388) and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for Extensions
4) Compatible to most telephones, PBX and VoIP gateways (for call Termination)

5) Connect to Alarm systems to realize wireless alarm(for security use)
6) Strong signals with high gain antenna
7) Support SIM card (1.8V,3V)
8) Support FSK/DTMF 2'nd dialing out

9) DTMF CLIP(Caller ID display)
10) Hide subscriber caller id (been sent out)
11) Provides reversal polarity signal for metering
12) Signal indiator and power indicator and working status indicator

13) Suitable for wide voltage range and low power consumption
14) Suitable for all kinds of weather and environment
15) Locking PIN / network (optional)

16) GPRS function(optional)
17) Back up li-ion battery(optional)



Specifications:
1) Air interface standard: GSM 900/1,800Mhz phase 2+ full band

2) Frequency ranges:
    GSM 900: GSM 1800:
   I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
   Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz

3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W

6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity: -105dB

8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10°C ~ +40°C
10) Relative humidity: 45% ~ 90% (without frost)

11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /
Chosen direction)

14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)

18) Connector of power: US or European type
19) Dimensions (L x W x H) (average): 200 x 140x 33mm
20) Weight:
     A) FWT: 700g
     B) Full set with AC adapter, antenna and box: 1000g

21) Colors: Grey
22) Connection mode: RJ-11 phone sockets
23) Antenna connection: SMA antenna connection

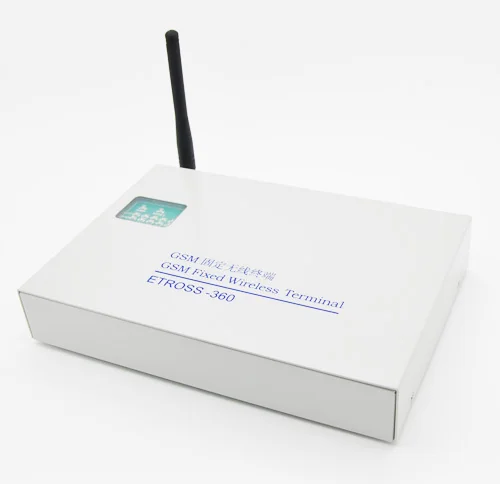

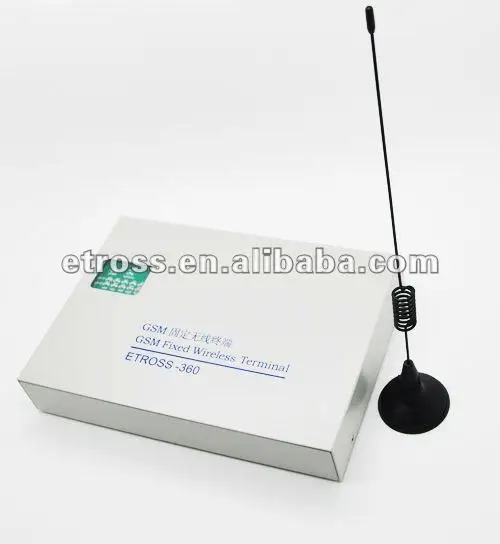

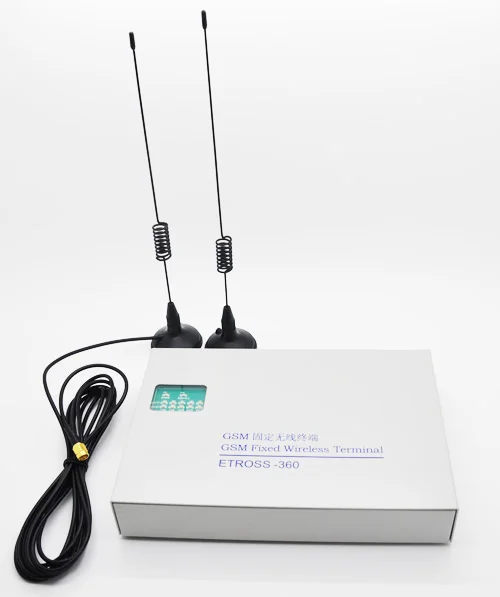

GSM ET360 with 3M antenna:

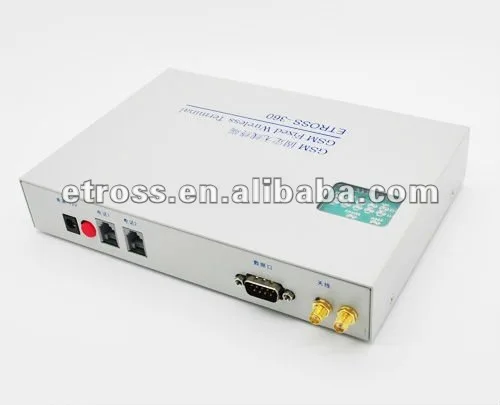

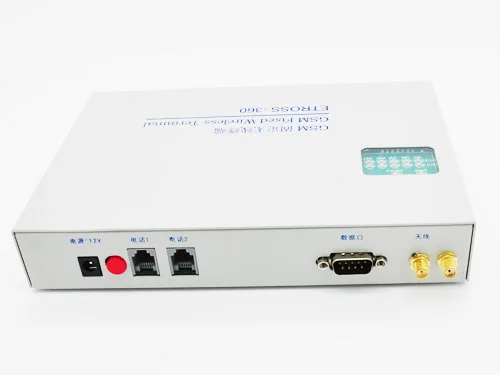

Back view, 2 pieces of RJ11 interface and 2 pieces of antena interface



Bottom view: 2 pieces of SIM card slot:



Led display: Power/Use/Signal:

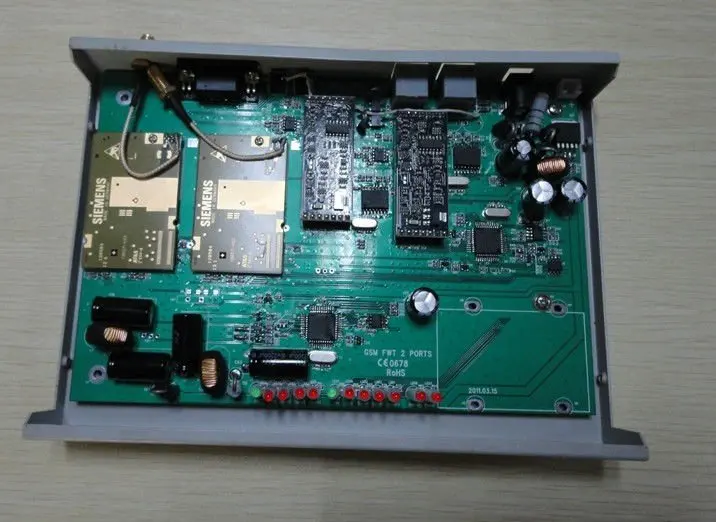

 Inner structure:
