wall mount factory new design Coins operated Alcohol test Multimedia Machine Breathalyzer

Product Overview

Description

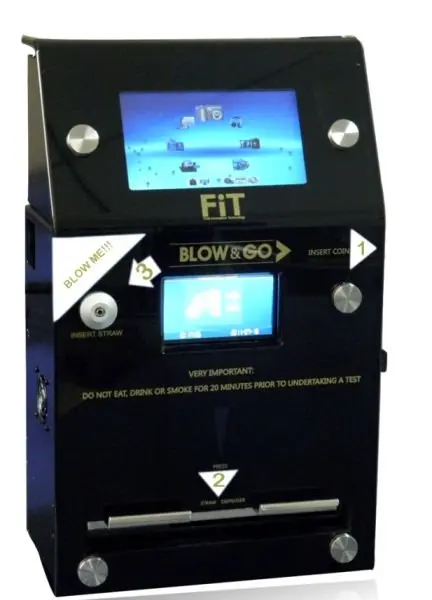

FiT303-FC-7 Coins operated Alcohol test Multimedia Machine Patented (ZL 2009 2 0267870.X)



Coins operated BREATH ALCOHOL COMPUTER

With 7” Multimedia module

Adaptable sensor unit: Replaceable Plug-In sensor module (Patented)

Power: DC9V

Temperature Range: From -20°C to +40 °C, for optimum operation

Accuracy: ±0.006%BAC

Memories: 100 memories or more

Automatic flow detect: to monitor the continuous breath sampling

Calibration: Advance calibration function

Unit Conversion:  %o BAC, %BAC and mg/l

Display: True color 4.3”TFT touch panel display with 0.001%BAC resolution

RTC clock: Real time Clock in 12/24 hour format

Breath sampling: about 6 seconds continuous breath sample

Cycle time: about 60 seconds

Coins Capacity: about 200pcs

Blow tube (Straw): about 200pcs

Blow tube (Straw) type: Diameter 1/4″*8″(L)

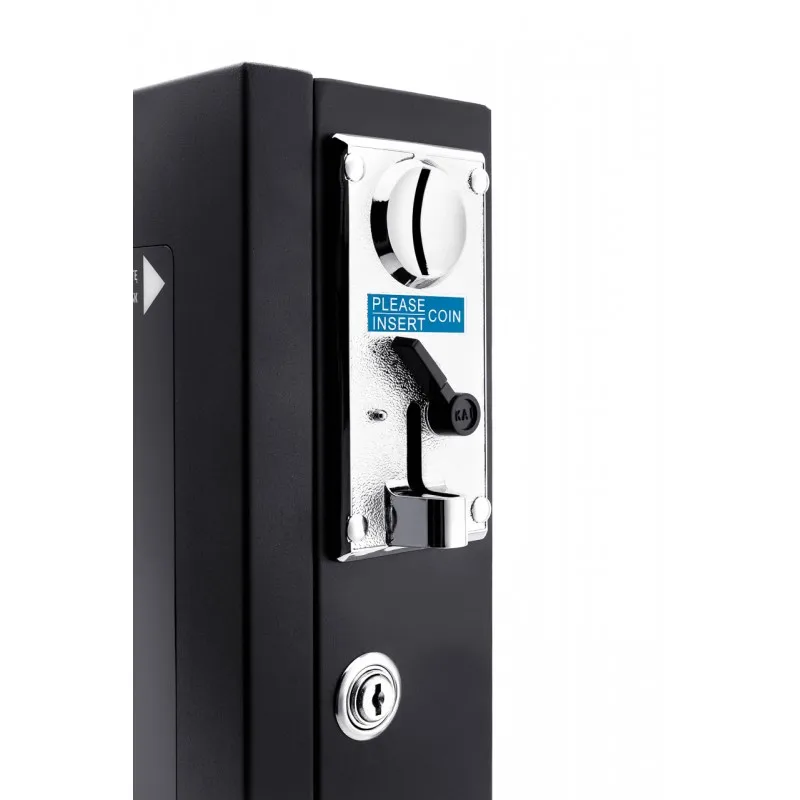

coins machine  the coins size as following:

Coins Diameter: 18-31mm

Coins Thickness: 1.2mm-3.0mm



Multimedia module

Videos (.DAT / .MPG / .VOB / .MP4)*

 music

 slide-shows



Interfaces (from left to right): DC in; USB for external devices; external speaker; USB - stick; SD card reader; FD card reader.

* The file formats depend on the version of the Multimedia module and may change from time to time.
