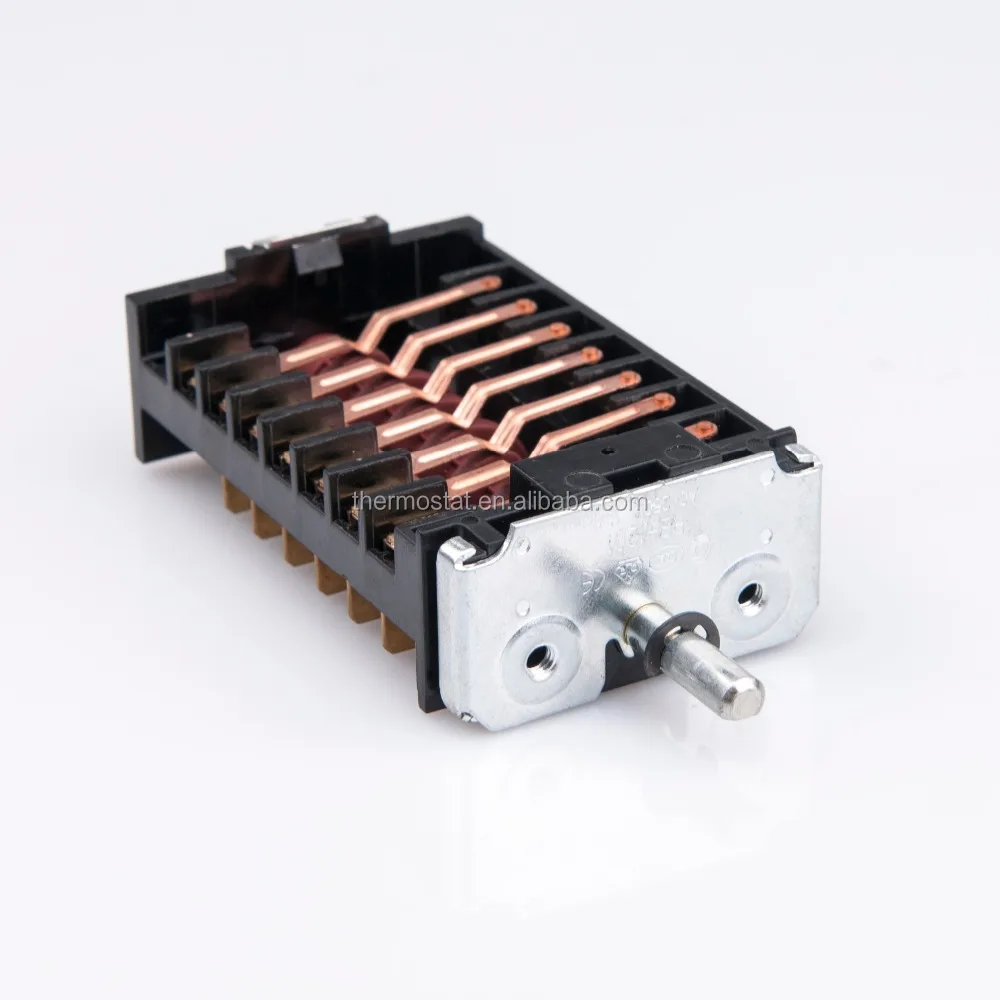

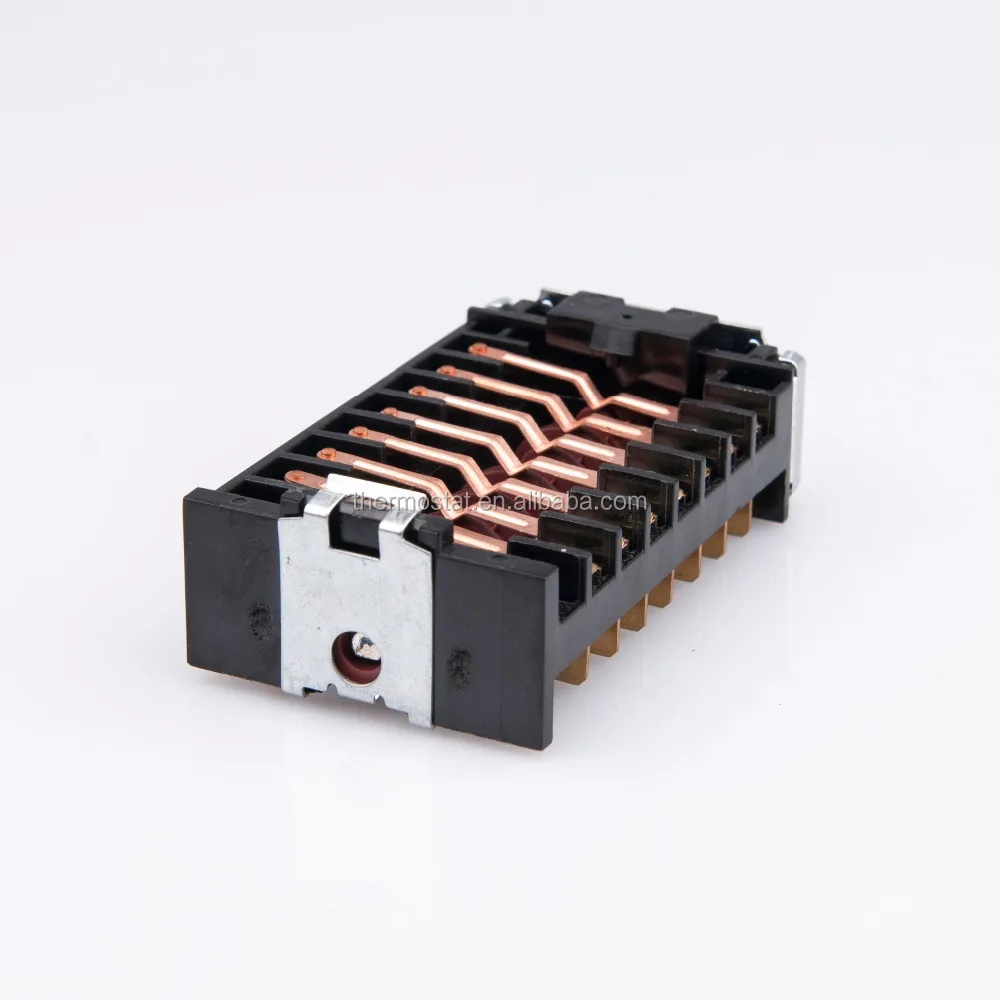

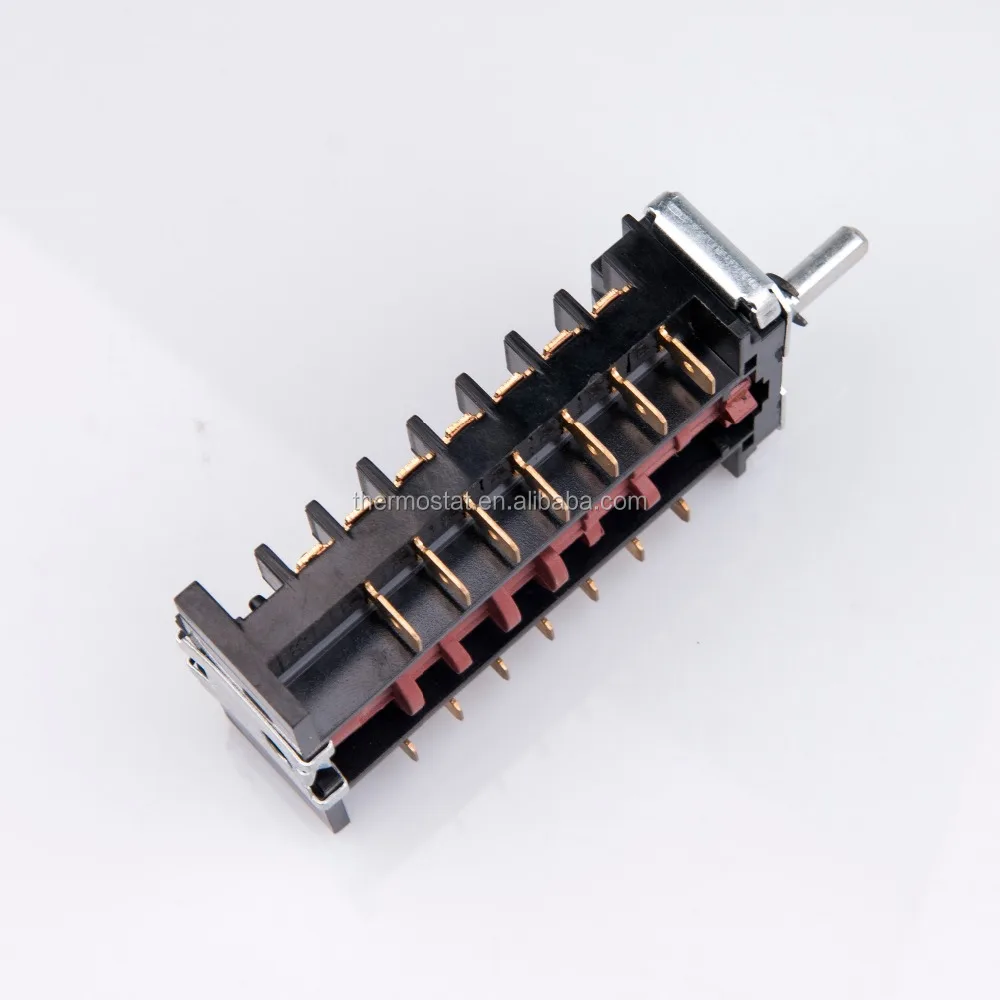

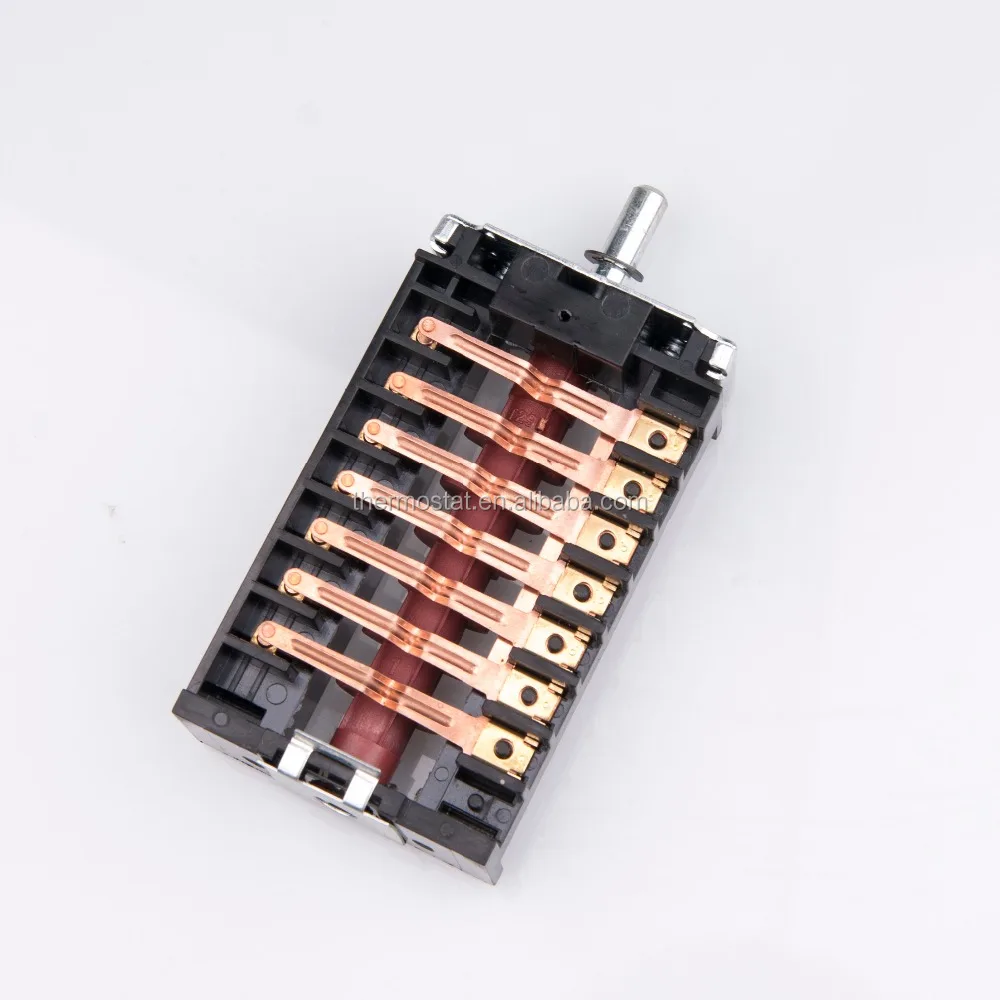

RS Series rotary switch for oven

Product Overview

Description

1. RS series functional rotary switch is developed for household appliances and mechanical equipment. Using multiple-contact combination offers a variety of circuits and achieve the same or different function selection.CAM mechanical on/off mechanism is of safe and reliable.
2. Application: Microwave oven,Induction cooker,Electronic stove,Electronic oven,Baking oven etc.
3. Specifications: 85mm(L) / 50mm(W) / 26mm(H)
4. Operating Requirement: Rated voltage: AC 250V, Rated current: 16A; Environment temperature should be less than 150°C
5. Life Cycle: 10000 times.
