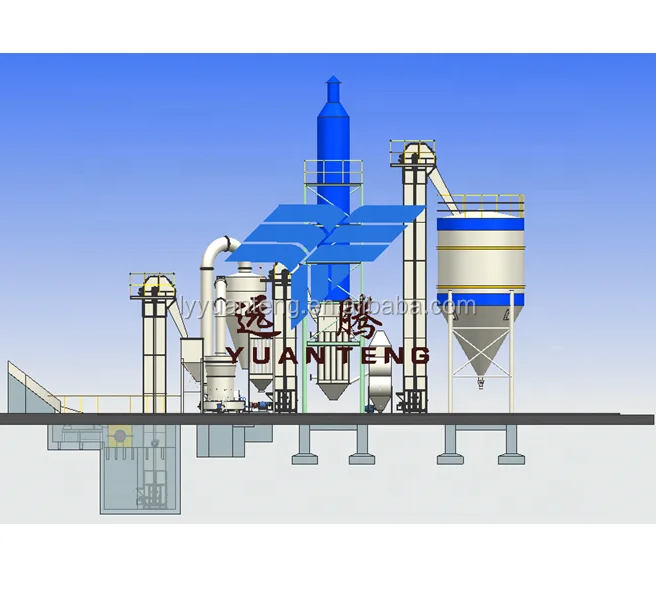

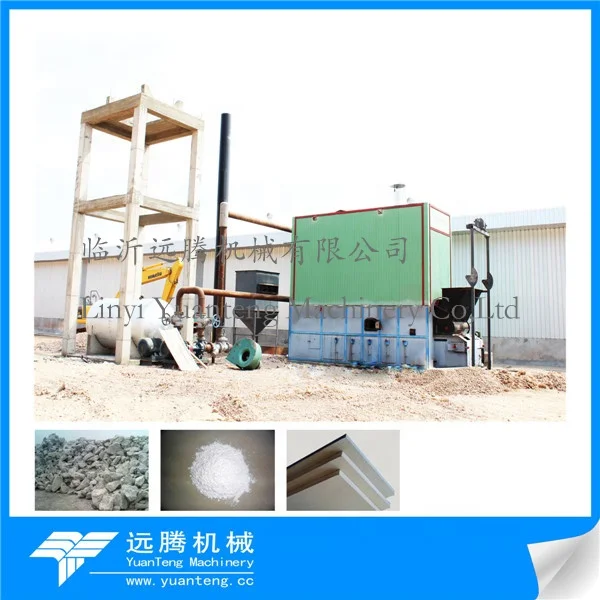

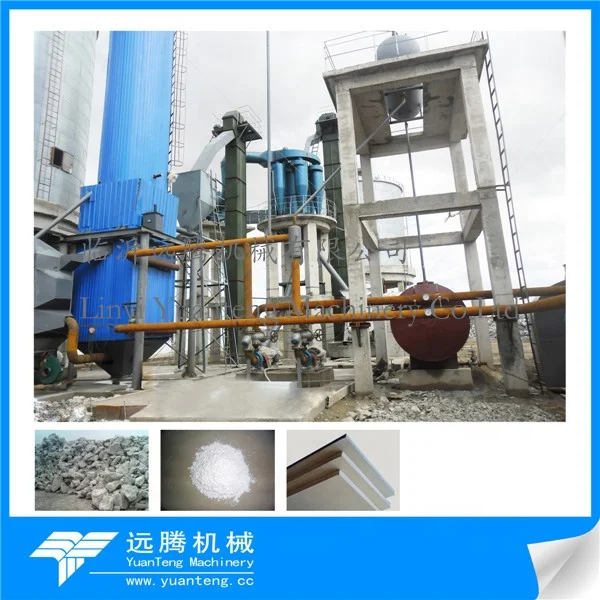

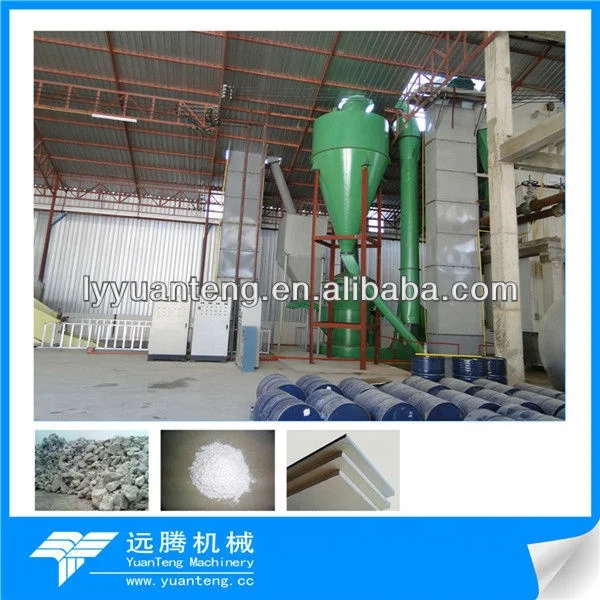

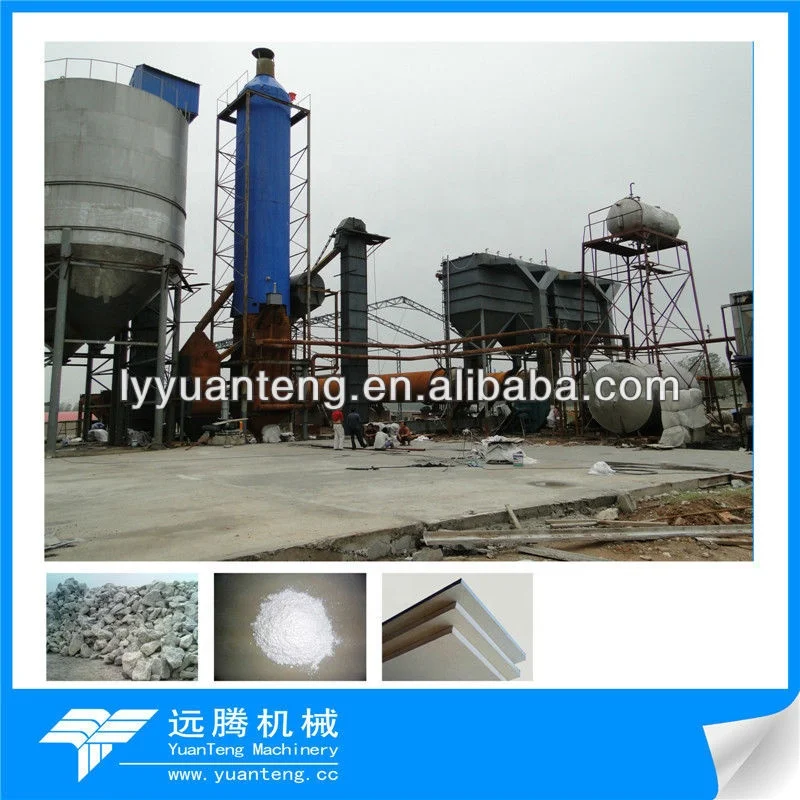

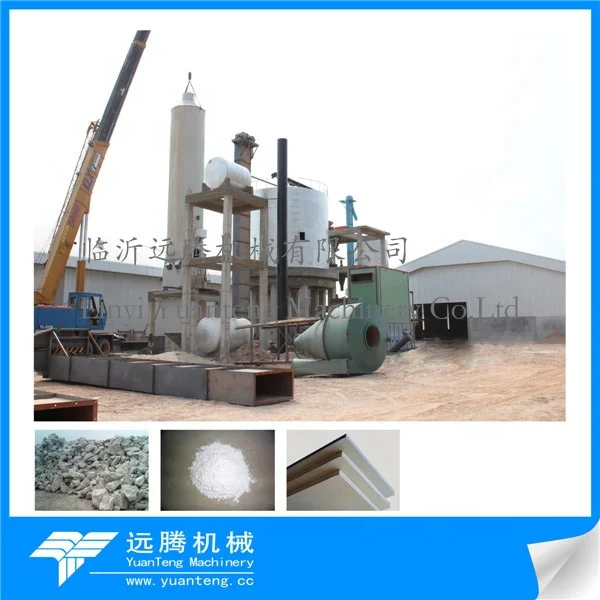

Gypsum plaster powder production line

Product Overview

Description

Gypsum powder production line adopts boiling furnace, high-voltage electrostatic dust removing and other advanced equipment, it

gypsum powder production line capacity list  :

Capacity/T	/ Ton/hour	/ Raw gypsumrock consumption T/year	Heat supplying way	Boiling furnace size
20,000	2.7	24,000	Heat conductive oil or steam	4.5M×1.0M×1.2M
30,000	4.2	36,000		4.5M×1.2M×1.4M
50,000	6.9	60,000		4.5M×1.4M×1.6M
60,000	8.3	72,000		4.5M×1.6M×1.8M
80,000	11.11	96,000		4.5M×1.8M×2.0M
100,000	13.88	120,000		4.5 M×2.0 M×2.2 M
150,000	20.83	180,000		4.5 M×2.2 M×2.4 M
200,000	27.77	240,000		4.5 M×2.4 M×2.6 M
300,000	41.66	360,000		4.5 M×2.6 M×2.8 M



Brief Introduction
Natural gypsum generally includes dehydrate gypsum and anhydrous gypsum. In order to get the valuable materials, generally, we get semi-hydrated gypsum through heating the dehydrate gypsum.

Main Technology
gypsum mine ->first breaking ->second breaking ->grinding ->calcining ->aging ->finished products (CaSO4.1/2H2O)

Raw Materials
Content of CaSO4.2H2O in gypsum mine 80%
The grade of mine and the crystal configuration will influence the quality of semi-hydrated gypsum

If you have more questions about the gypsum powder production line,feel free to contact me.
