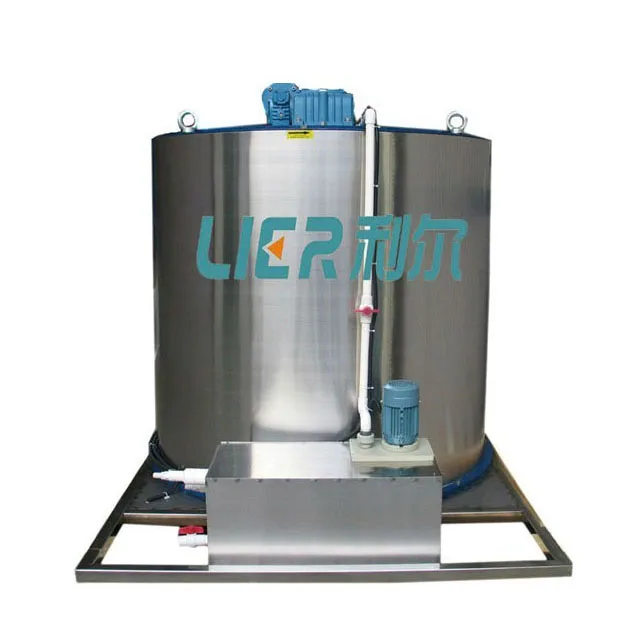

High Performance Freon Flake Ice Making System Evaporator

Product Overview

Description

High Performance Freon Flake Ice Making System Evaporator



Why should choose us:
1. Excellent quality, reasonable price.
2. Stable&reliable performance.
3. CE approval.
4. Long using life.
5. Energy-saving, place saving
6. Low failure and long working life: The system always runs well more than 30000hours.
7. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.
8. High efficiency and capacity
9. Easy to installation with the instruction.

Specification:
1. Standard power supply: 3P/380V/50Hz, can be customized
2. Freshwater(Salt water is available, if you need)
3. Ice thickness: 1.8~2.2mm
4. Flake ice temperature: -5Celsius degree~ -8Celsius degree
5. Standard working condition: 25Celsius degree; Ambient temperature; 20Celsius degree; Water inlet temperature: 15Celsius degree.
7. Evaporating temp.: -22Celsius degree; Condensing temp.: 35Celsius degree;

Quality assurance:
1. CE certificate.
2. Every procedure are strict checked in the production process
3. It will go through long-time ice-making performance testing and commissioning before leaving the factory to ensure its excellent performance.

Evaporator features:
1. Evaporator inner wall: It is made of high thermal conductivity cold-rolled sheet or stainless steel 316 material resistant to salt water corrosion, and it also passes abrasive machining and acoustic detection to ensure the wall thickness well-distributed.
2. Ice blade: Made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
3. Spindle and other accessories: Made of SUS304 material through precision machining, and conform to(/meet/is up to) food hygiene standards.
4. Thermal insulation: Foaming machine filling with imported polyurethane foam insulation. Better effect.
5. Tips: (1)Evaporator size and installation direction can be customized according to customers' requirements;
(2)The material of evaporator wall and up and down pedestal is available (304&316).

Advanced technology: Our flake ice machine evaporator uses annealing heat treatment furnace and vibration aging process to eliminate the welding stress. It can prevent the evaporator inner wall from deformation and eventually prolong the evaporator working life.

Evaporator is made of imported SUS304 or carbon steel with high heat transfer efficiency, whose surface is Nobelium electroplated. The material can ensure the ice burrel excellent corrosion resistant and flake ice clean and hygiene.

Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.



Model	Daily Output	Compressor Brand	Total Power (KW)	Power Supply	Refrigerant	Cooling mode	Weight (kg)	Ice Storage (kg)
LR-0.5T	0.5T/24H	Danfoss	2.5	3p/380v/50Hz	R404A	Air colded	195	400
LR-1.0T	1.0T/24H	Danfoss	4.8	3p/380v/50Hz	R404A	Air colded	227	500
LR-1.2T	1.2T/24H	Bitzer	5.4	3p/380v/50Hz	R404A	Air colded	263	500
LR-1.5T	1.5T/24H	Bitzer	7.3	3p/380v/50Hz	R404A	Air colded	364	500
LR-2T	2T/24H	Copeland	8.5	3p/380v/50Hz	R404A	Air colded	423	600
LR-2.5T	2.5T/24H	Copeland	9.2	3p/380v/50Hz	R404A	Air colded	456	600
LR-3T	3T/24H	Bitzer	12.2	3p/380v/50Hz	R404A	Air colded	530	According to the order
LR-4T	4T/24H	Bitzer	16.3	3p/380v/50Hz	R404A	Water cooling	630
LR-5T	5T/24H	Bitzer	19.6	3p/380v/50Hz	R404A	Water cooling	760
LR-8T	8T/24H	Bitzer	26.6	3p/380v/50Hz	R404A	Water cooling	968
LR-10T	10T/24H	Bitzer	32.5	3p/380v/50Hz	R404A	Water cooling	1260
LR-15T	15T/24H	Bitzer	58	3p/380v/50Hz	R22	Water cooling	2120
LR-20T	20T/24H	Bitzer	63	3p/380v/50Hz	R22	Water cooling	2860
LR-25T	25T/24H	Bitzer	75	3p/380v/50Hz	R22	Water cooling	2940
LR-30T	30T/24H	Bitzer	86	3p/380v/50Hz	R22	Water cooling	3240



































































Our factory





Certificates:



CONTACT US FOR MORE:
What kind of ice machine do you want? Warmly welcome to contact us for more information!

Looking forward to your inquiry!
