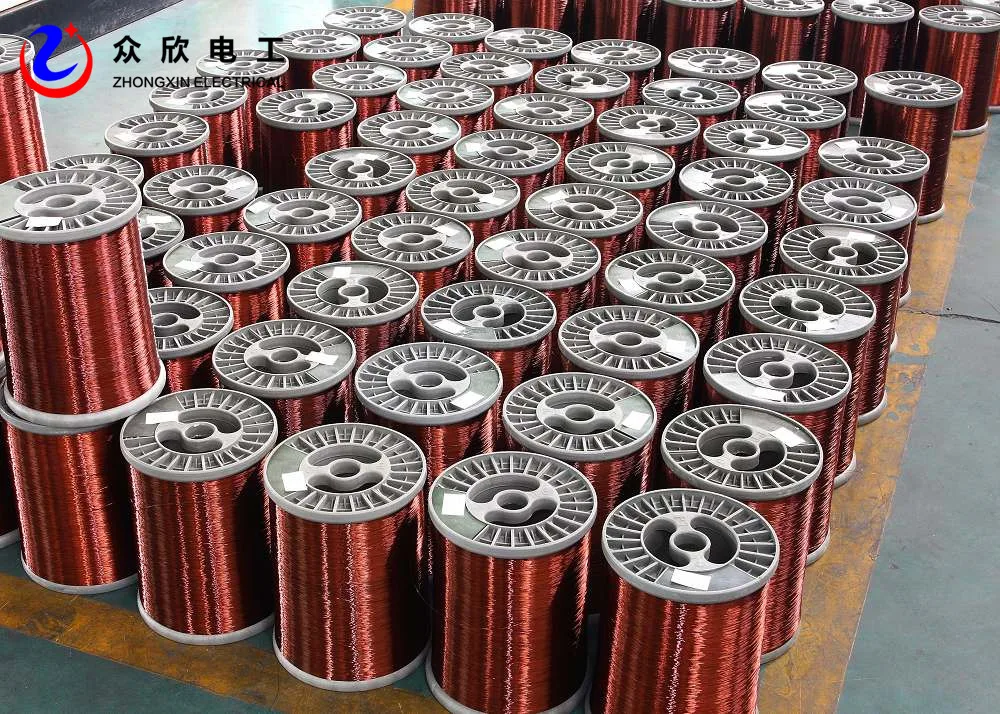

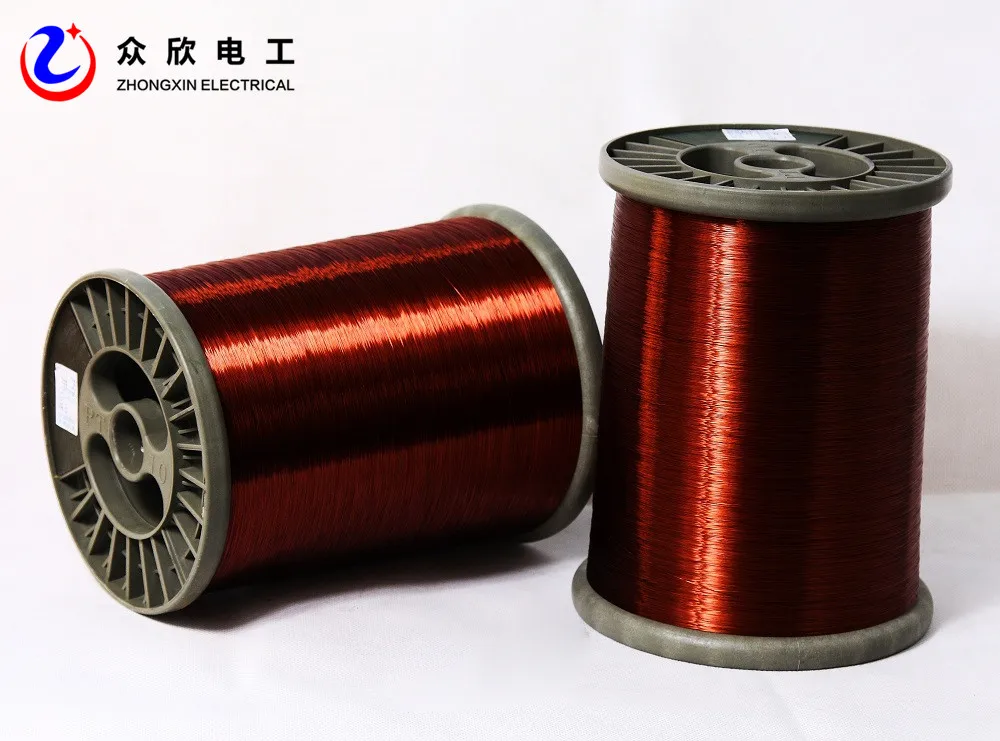

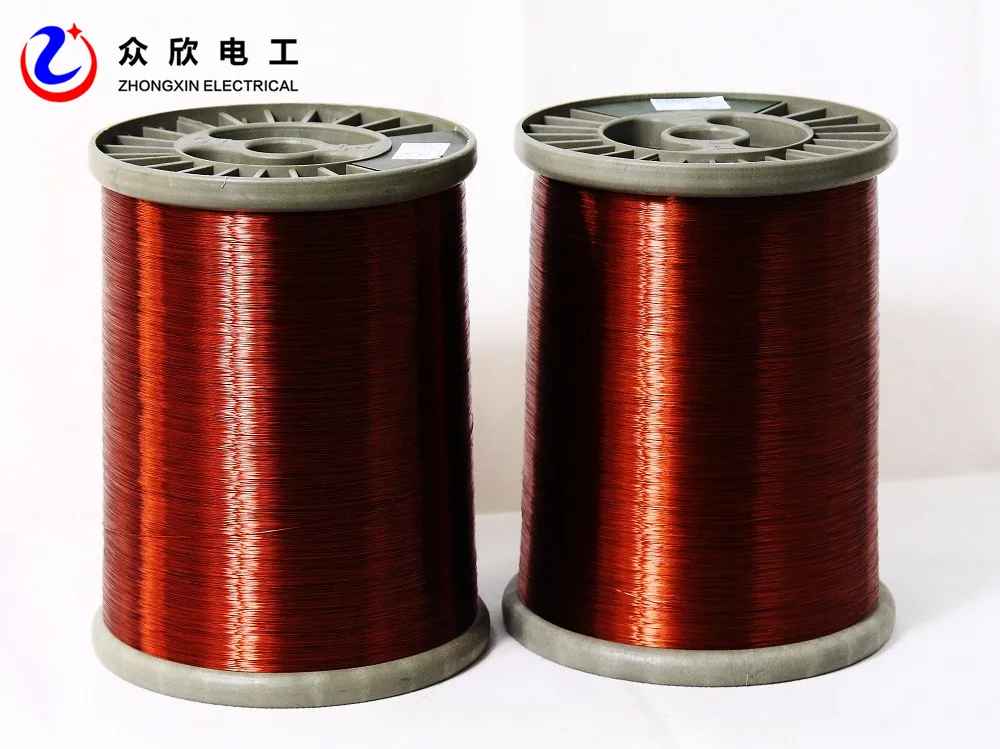

Copper clad Aluminum winding wire for motors

Product Overview

Description

Detailed  Product   Description

product of origin:                                    Jiangsu, China (Mainland)
Conductor Material :                                 Aluminum/Copper Clad Aluminum
Number of Conductors :                           single
Application :                                             fan,pump,motor, ballast, transformer,generator, inductive coil   etc.
Jacket :                                                    polyester or polyurethane  or Polyester imide

Insulation Material:                                  enameled
Payment & Shipping Terms:
Price:                                                        FOB US$ 3.0-6.6Kilogram
                                                                 Get Latest Price
Minimum Order Quantity:                          Negotiable Trial Order
Minimum Order Quantity:                          1000 Kilogram/Kilograms Trial Order
Port:                                                            Shanghai
Packaging Details:                                     1/2 coils in one carton
Delivery Time:                                            15 days
Payment Terms:                                        L/C,T/T
Supply Ability:                                           850000kilogram/kilograms per month



product name: enameled copper clad aluminum winding wire

introduction: Enameled aluminum /copper clad aluminum winding wire is extruded or drawn from oxygen-free aluminum  rod with certain specification mould,then coated with insulating paint on mang times.the product is widely applied in transformer,electromotors,generator and other similar electrical instruments.

product type:
130deg.C of polyester enameled aluminum/copper clad  aluminum  winding  wire
155deg.C of modifed polyester enameled  aluminum/ copper clad aluminum  winding wire
180deg.c of polyedter imide enameled aluminum/ copper clad aluminum  winding wire
220deg.C of polyester imied &polyamide imide compound enameled aluminum /copper clad aluminum  winding wire
120(155)deg.C of acetal enamelled  copper clad aluminum  round wire

production range:
Enamelled aluminum/copper clad  aluminum  winding  wire
Diameter: from 0.13mm--6.0mm

Material:
Enamelled  aluminum /copper clad  aluminum winding wire-soft  aluminum  round wire should confirm GB 5584.2-2009,theresistivity(20'C) is no more than 0.01724.m*m*m/m

If specification is out of range,please also don't hesitate to contact us.Our company is one of the first made of enameled wire, complete specification, price, timely delivery, selling products at home and abroad, welcomed the new and old customers to consult and order
