Stainless Metal Conduit

Product Overview

Description

Stainless Metal Conduit



  Highly appreciated As the following features:



• ♣ SS conduit for Highly resistant to corrosion

• ♣ Long service life

• ♣ Good mechanical protection

• ♣ Medium bending flexibility since square lock

• ♣ Inherent low fire hazard

• ♣ Resistant to high temperature +300°C

• ♣ Operate efficiently in broad temperature range

• ♣ Can bear strong tension





Specification: As below and special non-standard sizes can be customized

No.	Size		Inside Diameter/mm		Outside Diameter/mm
	G system	Metric	MIN	MAX	MIN	MAX
JH-M-006	3/16”	Φ 6	5.70	6.00	7.95	8.45
JH-M-008	1/4”	Φ 8	7.80	8.10	10.70	11.30
JH-M-010	5/16”	Φ 10	9.70	9.70	13.15	13.85
JH-M-012	3/8”	Φ 12	12.3	12.3	15.15	15.85
JH-M-016	1/2 ”	Φ 16	15.7	16.0	19.65	20.35
JH-M-020	3/4 ”	Φ 20	19.7	20.0	23.90	24.70
JH-M-025	1 ”	Φ 25	25.3	25.8	29.85	30.75
JH-M-032	1-1/4 ”	Φ 32	32.3	32.8	37.50	38.50
JH-M-038	1-1/2 ”	Φ 38	38.3	38.8	44.40	45.60
JH-M-051c	2 ”	Φ 51	50.0	50.5	57.00	59.00
JH-M-064	2-1/2 ”	Φ 64	62.5	63.2	71.00	72.50
JH-M-075	3"	Φ 75	73.0	73.7	81.50	85.50
JH-M-100	4"	Φ 100	97.5	95.5	105.5	111.5



 Application of Stainless Metal Conduit:

         Used for wire protection at railways, engines, traffic system engineering, air-conditioners,various machineries, power plants, chemical industries, power distribution system, vessels,mansions, factory buildings as well as the outdoors’ exposed locations.

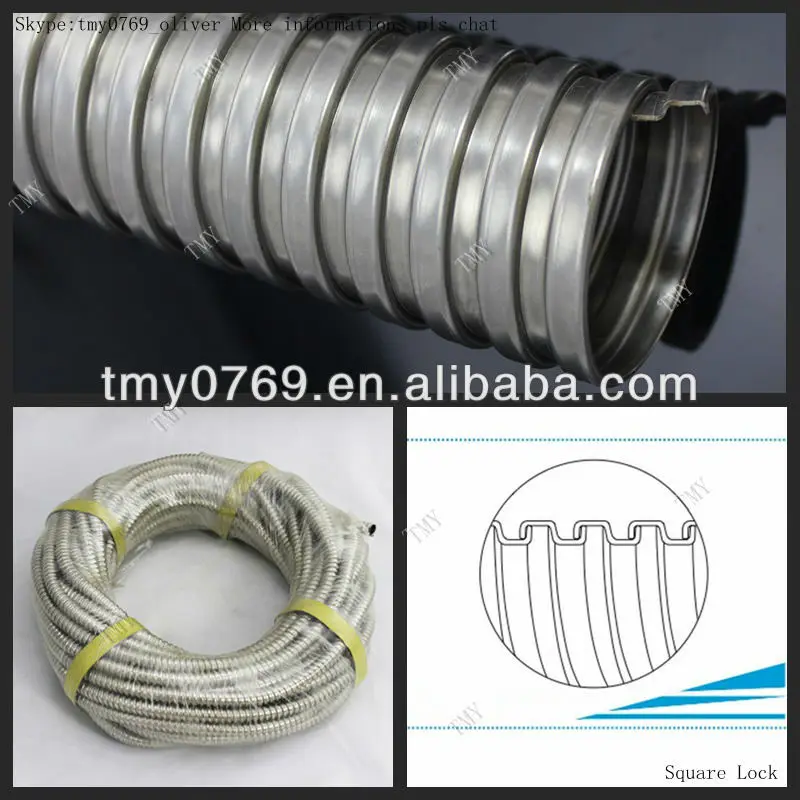

Stainless Metal Conduit

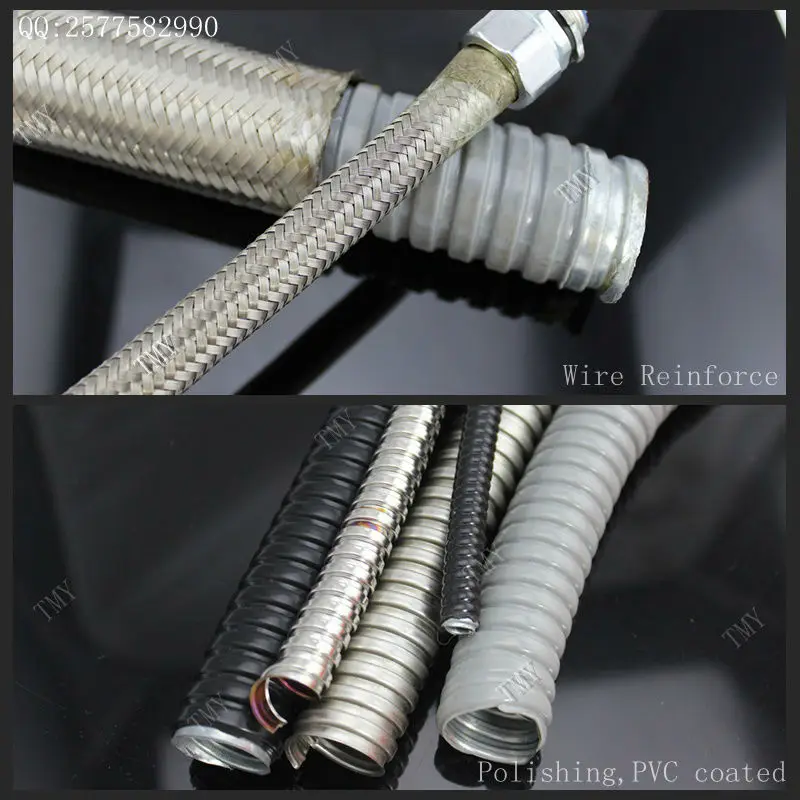

Postprocessing of Stainless Metal Conduit



About us:

• ♣   ISO9001:2008,SGS,UL94

• ♣   Specialise in this field for 10 years.

• ♣   We are manufacturer.

• ♣   Advanced machine to  keep production running smoothy.

• ♣   Rapid logistics system.

• ♣   More than 5000 square meters factory.

• ♣   100 workers and 8 engineers.
• ♣   ISO9001:2008 Quality Management System.
• ♣   Delivery On time.

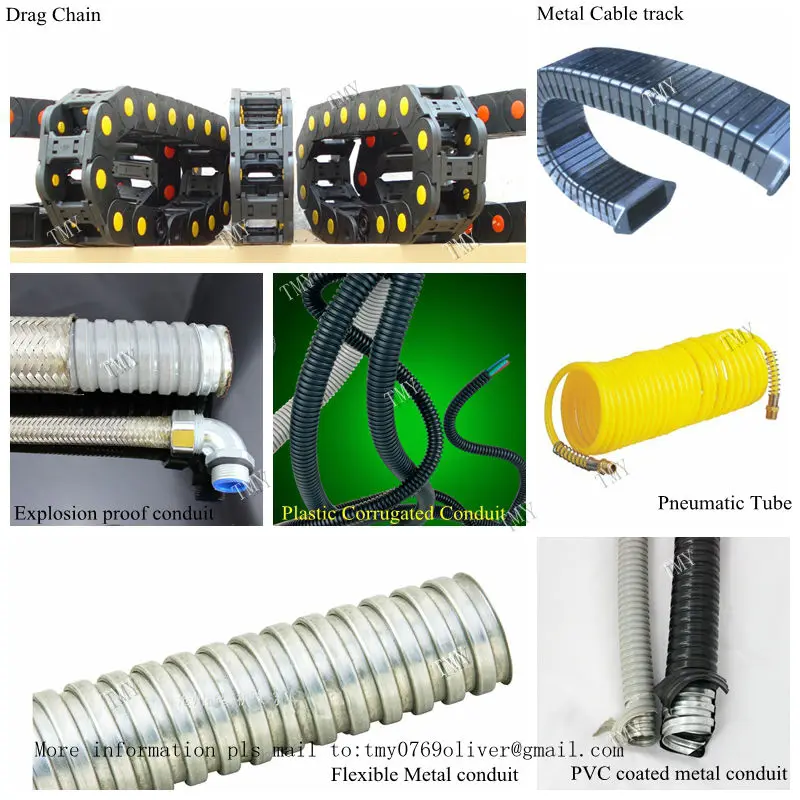

More products of our company



MARKS:

• Stainless Metal Conduit

only for wires and cables protection, not for other usages such as water,gas,food,etc.
• The size above only for reference,more details pls contact us.
