Product Overview

Description


Product Description

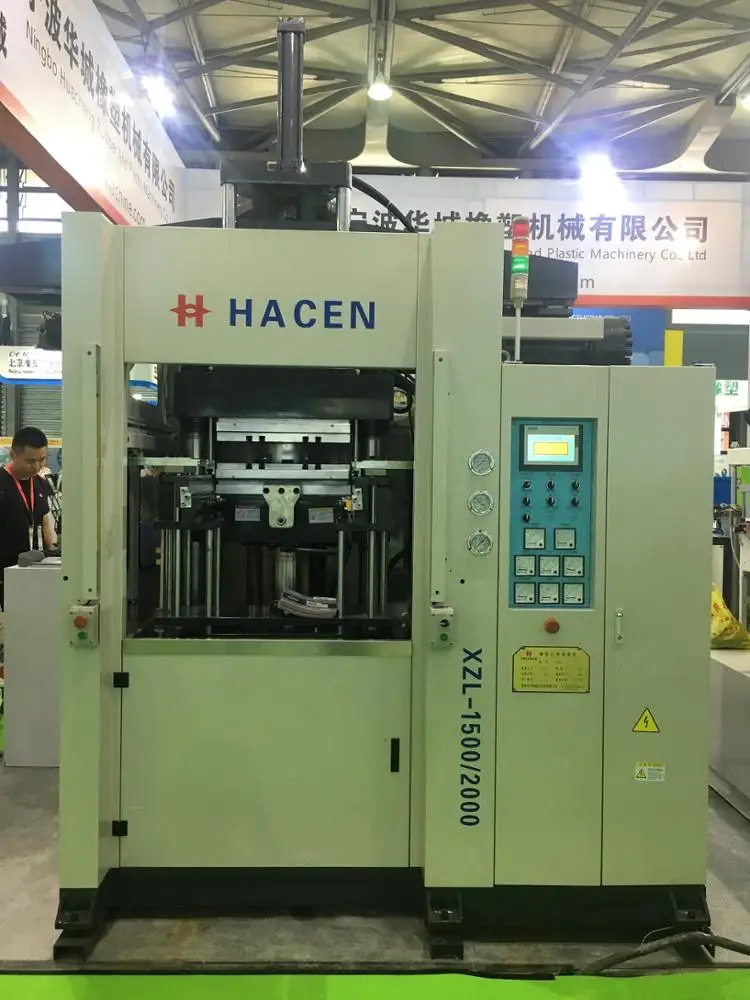

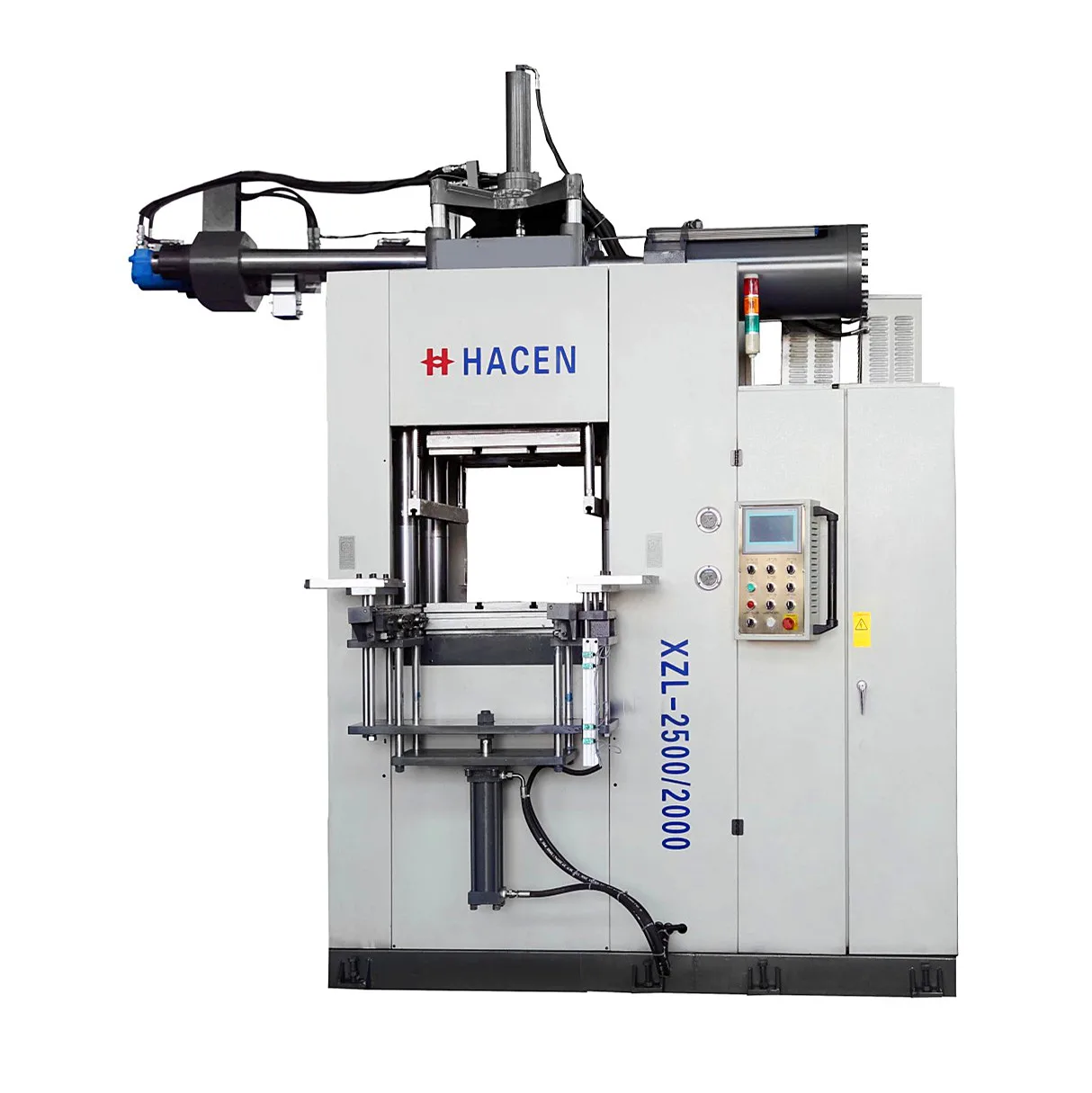

Huacheng XZL series four column rubber injection molding machine uses Germany technology of injection machine. It has high efficiency, high quality, high precision features. Compared with foreign similar machines, the most advantage of our machine is that it has good performance-price ratio. It sells well not only in domestic market but also at abroad.
Product Feature
1. The plasticized rubber will injected early according to FIFO method, largely reducing the production time
2. Large worktable area
3. Imported double-proportion valve or servo system can control any kind of movement without causing shock
4. Save power consumption of motor by 50%~70%
5. German electronic ruler for injection ensures metering accuracy
6. 3-stage injection pressure and flow and 3-stage hold pressure meet various product technological requirements
7. PLC programmable controller + touch screen LCD, technical parameters setting is convenient and intuitive and storable. The whole process is monitored; internal fault is diagnosed and alarmed automatically
8. Safety light curtain protection
9. Precisely positioning when moving in or out the mold
10. the Material temperature control by mold temperature controller
11. Mold temperature control accuracy is ±1℃.
12. Out-moving mold or upper-lower hydraulic boom is optional
13. Double-proportion pump or servo control is optional
14. Shorten flow time and reduce pressure loss
15. Accurate metering of horizontal injection unit
16. Injection piston can move out of material cylinder, largely simplifying the operation to replace rubber
17. Out-moving mold or upper-lower hydraulic boom is optional

FIFO: Higher injection temperature, shorter vulcanizing time.

According to FIFO method, inject the plasticized rubber first. Shorten the time when rubber is in storage cylinder, properly
raises material temperature and then largely shortens the vulcanizing time．

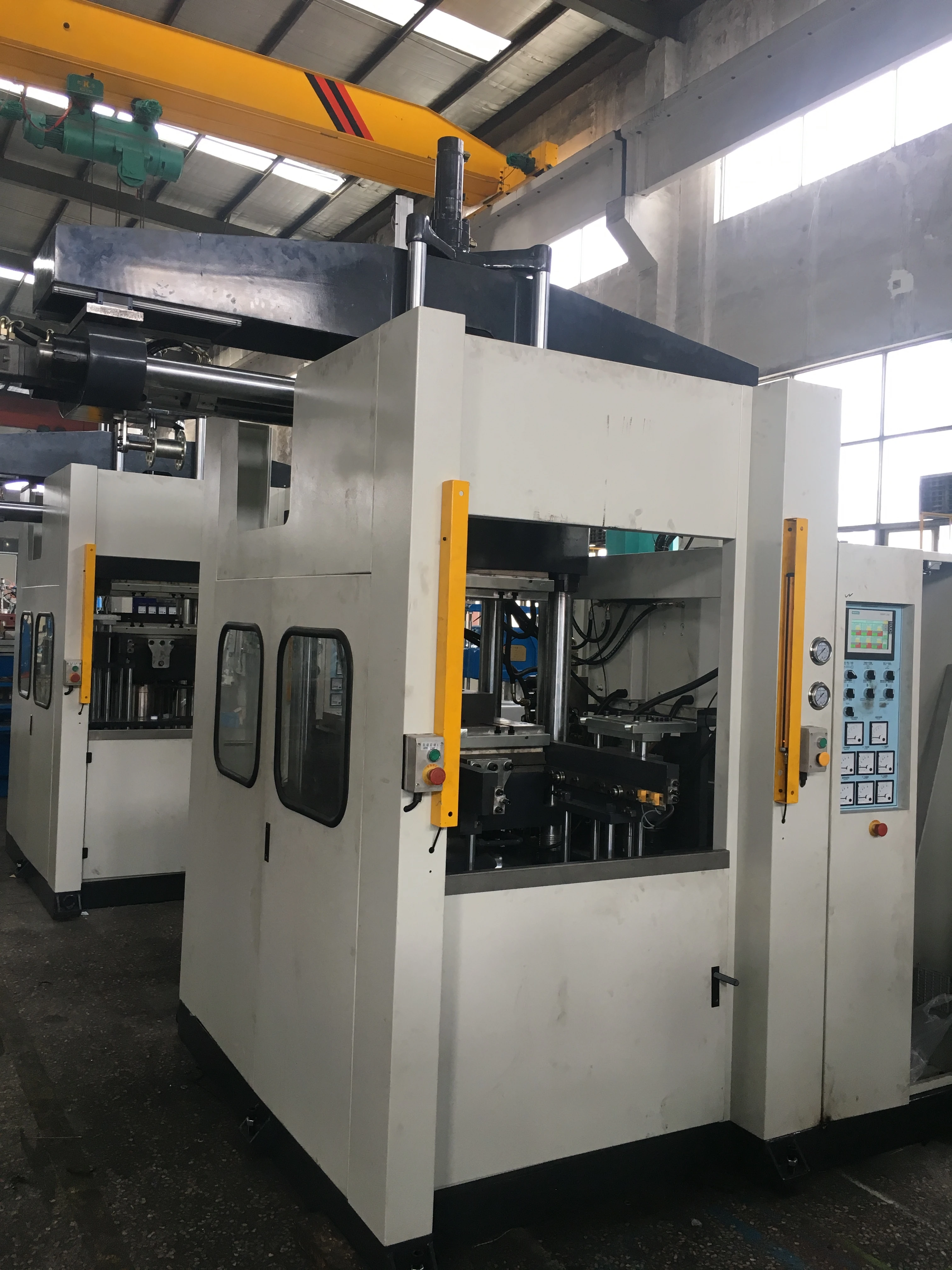

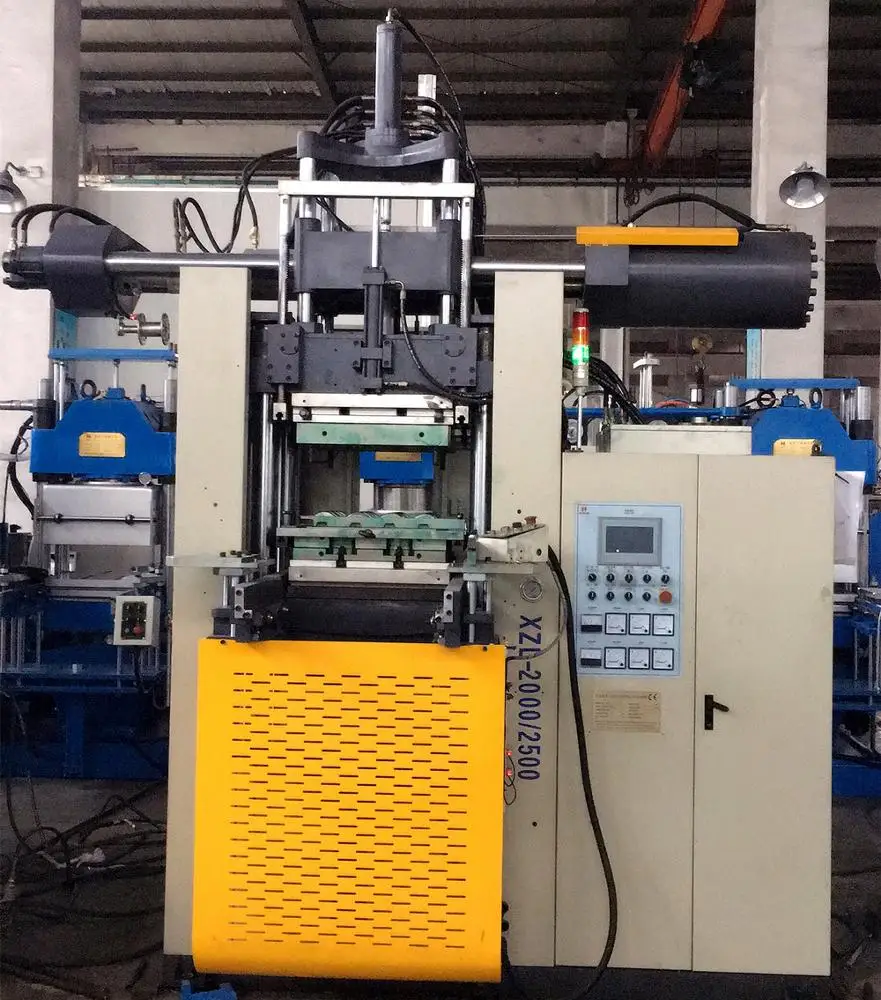

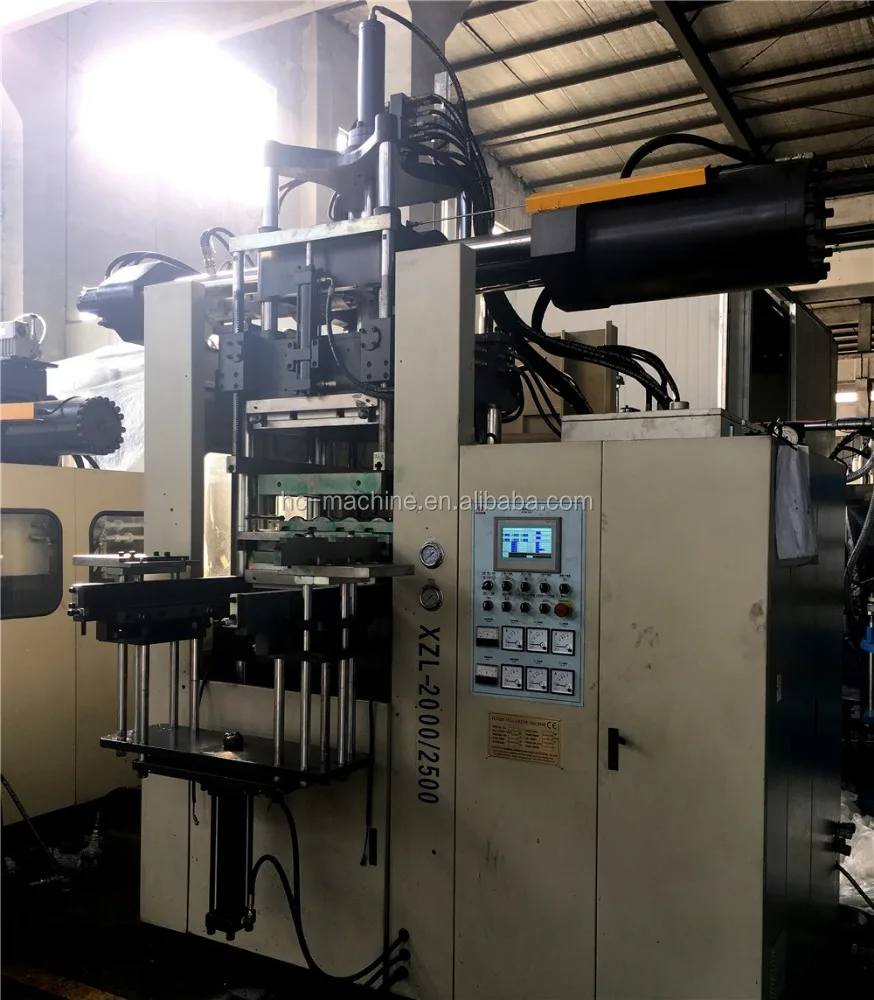

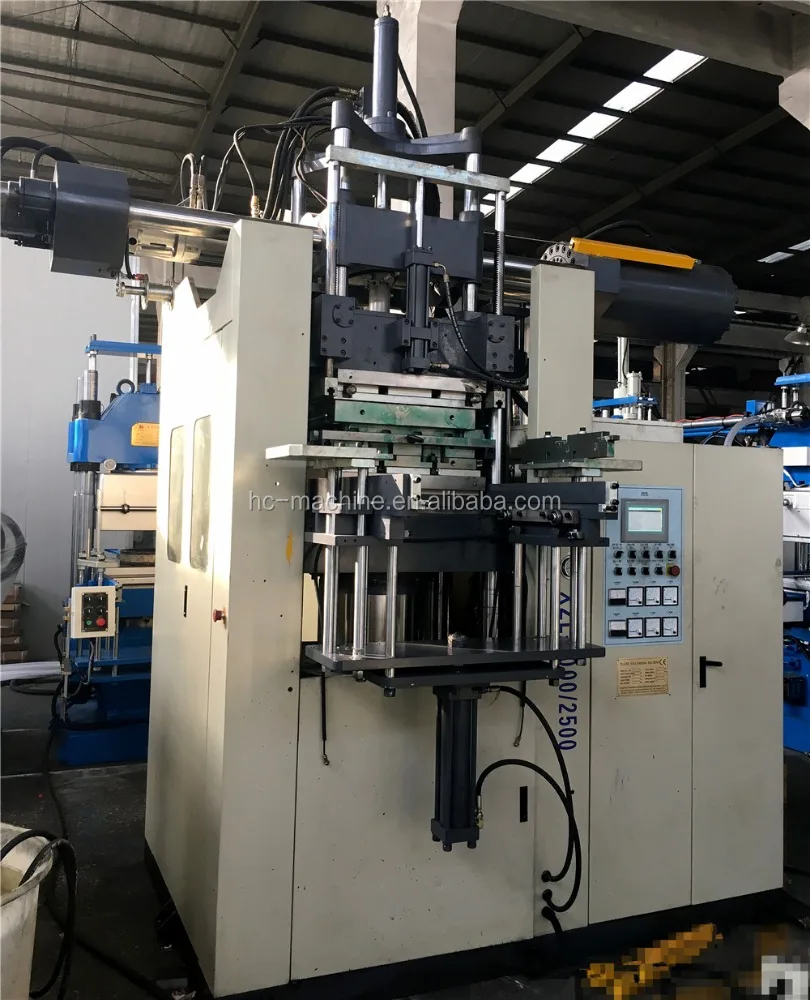

Detailed Images
Product Paramenters
Item
Unit
XZL-200
XZL-250
XZL-400
XZL-500
XZL-600
Clamp force
Kn
2000
2500
4000
5000
6000
Clamp stroke
mm
450
500
600
700
700
Heat plate size
mm
550*600
560*630
670*780
850*850
950*950
Max. opening
mm
550
600
780
900
900
Min. mold thickness
mm
100
100
180
200
200
Up lifter stroke
mm
250
250
250
250
250
down lifter stroke
mm
250
250
250
250
250
Screw diameter
mm
35
45
55
65
65
Screw speed
Rpm
0-100
0-100
0-100
0-100
0-100
Injection capacity
cc
1500
2000
4000
8000
10000
Injection pressure
Bar
1970
2110
2070
2070
2070
Injection plunger diameter
mm
75
85
105
120
135
Number of heating zone
Pcs
2
2
2
2
2
Injection nozzle touch force
Kn
75
75
75
75
75
System pressure
Bar
210
210
210
210
210
Motor power
Kn
11
15
22
18.5
22
Machine dimension L*W*H
m
2.8*2.6*3.3
2.8*2.6*3.4
3.2*3.0*4.0
3.7*3.2*5.0
4.2*3.5*5.5
Weight
Kg
7200
8000
14500
19000
22500
Recommend Products
Our Honor
Factory overview
FAQ
Q: What’s requipments do you have?
A: Our company specialized in Thermosetting material molding, manufacture rubber silicone molding machine, injection molding machine, vacuum press machine, transfer molding machyine, BMC injection molding machine, LSR injection molding machine.

Q: How long has your company been established?
A: Our company established in 1992.

Q: What’s the warranty of your machine?
A: About one year.

Q: What’s the delivery time of your machine?
A; 10-60 work days

Q: Which countries have you exported?
A: We have export to many ccountries, Russia, Ukraine, Turkey, Pakistan, South Afria, Egypt, Poland, Germany, Korea, USA, Brazil ,Peru, Mexico, Indonesia, India, Vietnam, Tailand...

Q: How about the after-sale service?
A: We provide them free training so that they can use and maintain the machine independently. We will answer customer’s questions on technology in time. If needed, we will offer on-site guidance. We can provide free technical guidance if customers need new equipment.
Service

Pre-sale service:
We can provide the good technology and experience, to help the customer manufacture the good products and give the good suggestion.

In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.

After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
