1100RPM DC 12V 9A Motor Powerful High Torque DC Gear Box Motor 16mm 12V 1100rpm DC Gear Motor

Product Overview

Description

1100RPM DC 4V 9A Motor Powerful High Torque DC Gear Box Motor 16mm 4V 1100rpm DC Gear Motor

CONSTAR MICROMOTOR
Brushless DC Motor	DC Coreless Motor	Gearmotor	Sonic Motor



Precision control fields like medical instrument, industrial control and so on.

Motor Characteristics
			1627RCN51-21P-12.0
1	Voltage	V	12.0
2	Terminal resistance	Ω	71.3
3	No-load  speed	rpm	8500
4	No-load current	mA	5
5	Stall  torque	mNm	0.0
6	Stall  current	mA	168
7	Nominal torque	mNm	1.00
8	Nominal speed	rpm	4521
9	Nominal current	mA	81

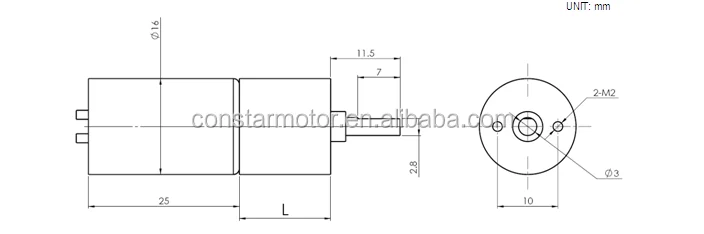

Gearbox Characteristics
	Reduction ratio	Max. rated tuorque		Max. momentary torque		Length(L)
		mNm		mNm		mm
1	4	80		240		15.05
2	14, 16, 19, 29	120		360		18.7
3	53, 62, 72, 84, 104, 128, 157	160		480		22.35
4	231, 316, 370, 455, 561, 690	200		600		26
5	1014, 1621, 1996, 3027	240		720		29.65



Lead wires length, Shaft length, Special coils, Encoder



                           Click here for more information



Series	Voltage (V)	Termanal resistence (Ω)	No-load Speed (rpm)	Reduction Ratio
GB06**R-0615RCN57-2L27-80-3.0	3	8.3	18500	4(3.7)-699
GB08**R-0816RCN51-1-8.0	8	60	15400	4-4096
GB10**R-1016RCN51-90-12.0	7.5	56	10900	4-4096
GB12**R-1230RN51-8-12.0	9	17	6300	4-4096
GB13**R-1230RN51-8-12.0	9	17	6300	4-4096
GB16**R-1627RCN51-21P-12.0	12	71.3	8500	4-3027
GB22**R-2233RCN52C-38L17P-30-12.0	12	70	2300	5-3968
GB28**R-2960ZWND-1-11.0	11	0.5	24500

     1100RPM DC 4V 9A Motor Powerful High Torque DC Gear Box Motor 16mm 4V 1100rpm DC Gear Motor
