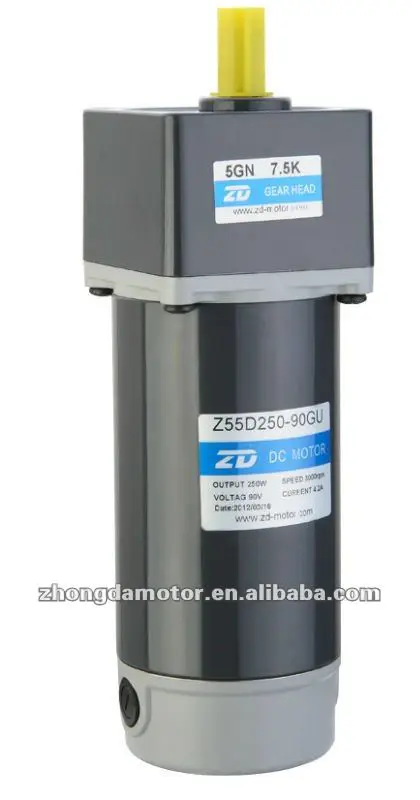

12v 250w zd zhongda dc motor

Product Overview

Description

12v 250w zd zhongda dc motor

Motor Performance Parameters

Model  Type	Voltage     V	Power     W	No-load Parameters		Load Parameters			Brush Life      H	Motor Weight      Kg
			Speed   r/min	Current   A	Speed  r/min	Torque mN.m	Current    A
Z55D250-12	12	250	3400	3.0Max.	3000	796	16.0	2000	3.2
Z55D250-24	24	250	3300	1.2Max.	3000	796	4.2	2000	3.2
Z55D250-90	90	250	3300	0.9Max.	3000	796	2.2	2000	3.2

Motor voltage,power and speed will be customized according to his requestment under the allowed circumstance of adoptable dimension.



Parallel Shaft Gearhead(Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3,3.6,5,6,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180,200
	5GN10XK(Decimal gearhead)

Enter the gear ratio in the box(*)within the model name



Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.



Typical Application:

machine tools,textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machinery, packing machinery, and gumming machinery.



ABOUT US

History of ZD motor:

 March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile,start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standard<Common technical terms of micro asynchronous speed adjustable motor>in 2008;

ZD is the first draft-man of standard<Common technical terms of small gear motor> in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.

Honors:

Ningbo’s well-known trademarks;

Ningbo technology innovation model.

Ningbo patent demonstration enterprise;

Ningbo innovative pilot enterprises;

Ningbo Safety Standardization enterprises;

Chinese micro motor Union;

Chinese gear Union;

Chinese Electric parts Union;

Chinese Micro motor standardized Union;

First draft-man of Chinese standard of micro motor
