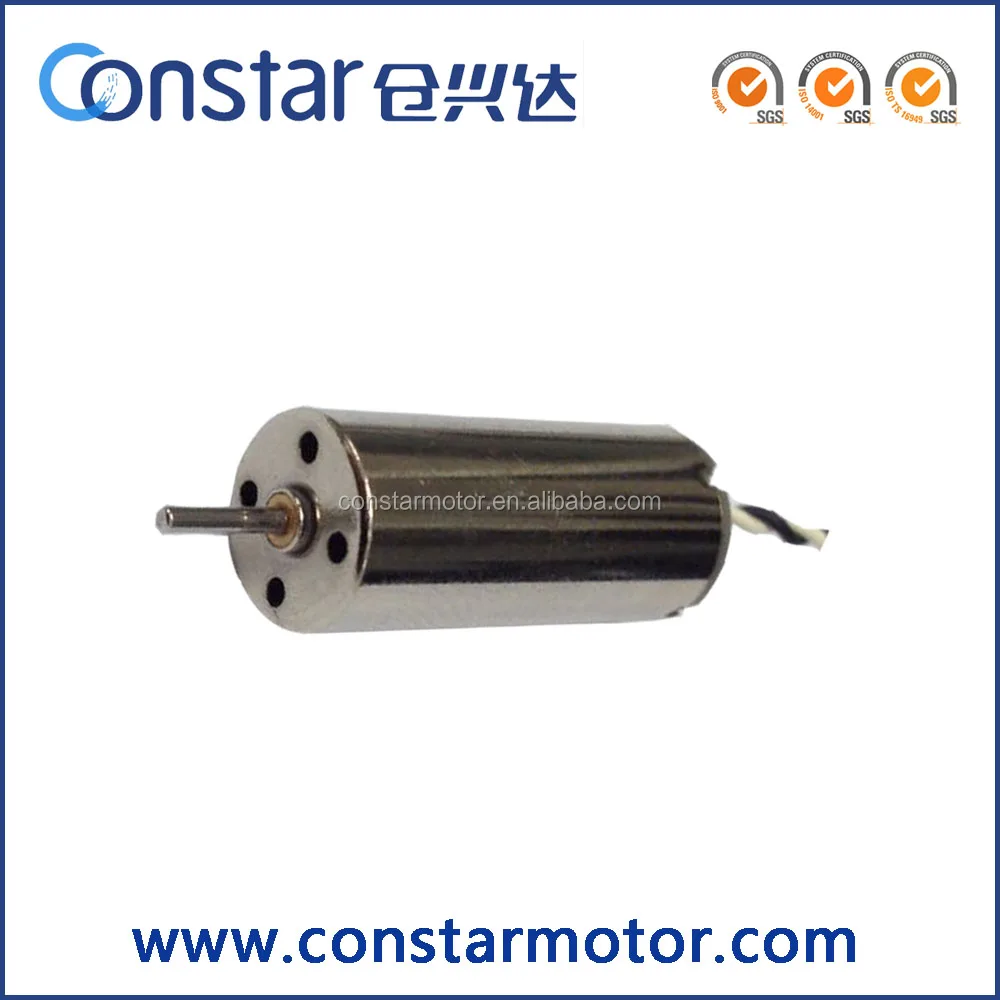

6mm micro DC coreless motor for toy helicopters
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (550015415):
Product Overview
Description
6mm micro DC coreless motor for toy helicopters
| CONSTARMICROMOTOR | |||
 |  |  |  |
| BRUSHLESS DC MOTOR | DC CORELESS MOTOR | DC GEARMOTOR | SERVO MOTOR |
Applications
Remote control toys, aerocrafts, mini household appliances, auto electronics, health care equipment.
Specifications
Standard Size Series | Performance Code | Dimension (mm) | Voltage (V) | Terminal resistance (Ω) | No-load Speed | No-load Current | Load Torque | Load Speed | Load Current |
0610RN | 02-74 | φ6*10 | 3.7 | 39 | 73660 | 83.4 | 0.05 | 64030 | 195.5 |
-59P1 | φ6*10 | 2.5 | 14.6 | 25600 | 17.3 | 0.05 | 15900 | 75.7 | |
-59 | φ6*10 | 2.5 | 14.6 | 25600 | 17.3 | 0.05 | 15900 | 75.7 | |
55-8 | φ6*10 | 3.5 | 8.9 | 35710 | 25 | 0.05 | 30270 | 80.8 | |
55-11 | φ6*10 | 3.5 | 7.1 | 37550 | 28 | 0.05 | 31780 | 84 |
Options
Lead wires length, shaft length, special coils, gearheads

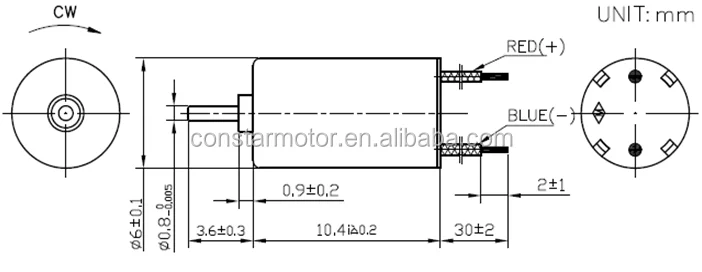

Outline Drawing

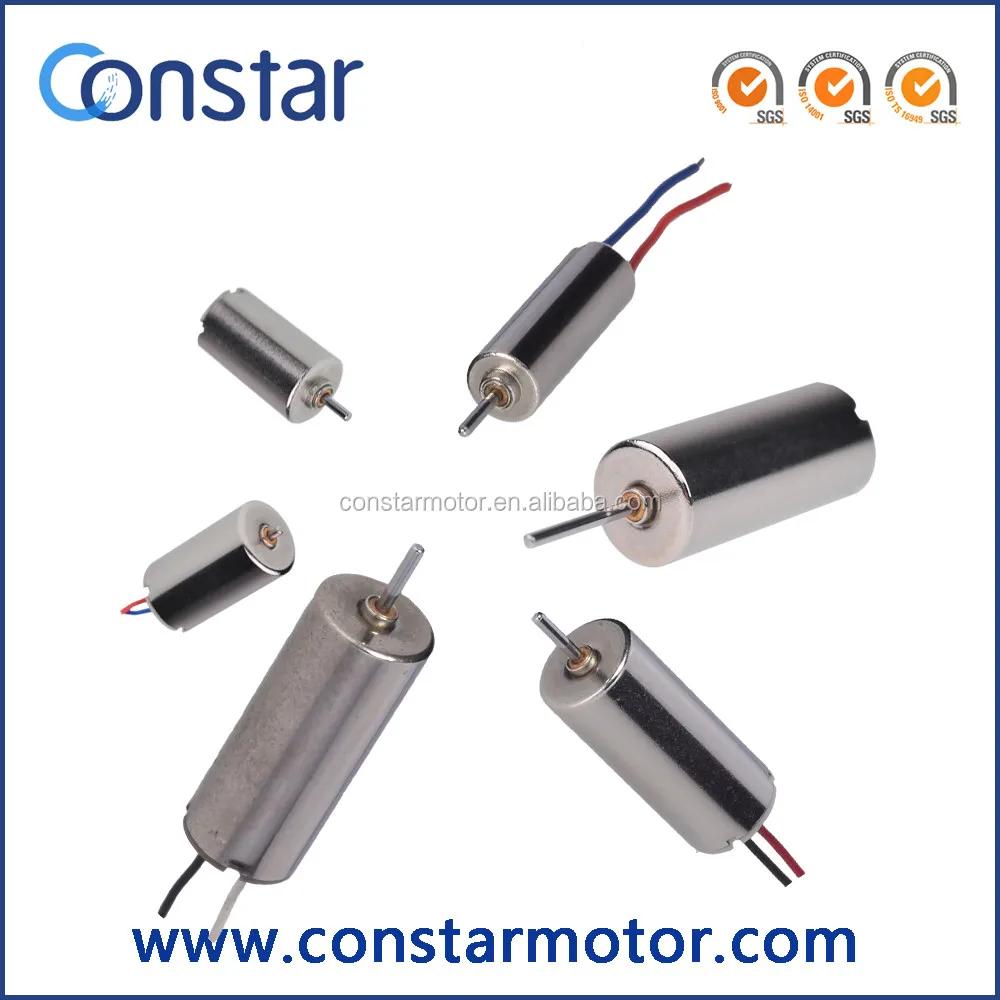

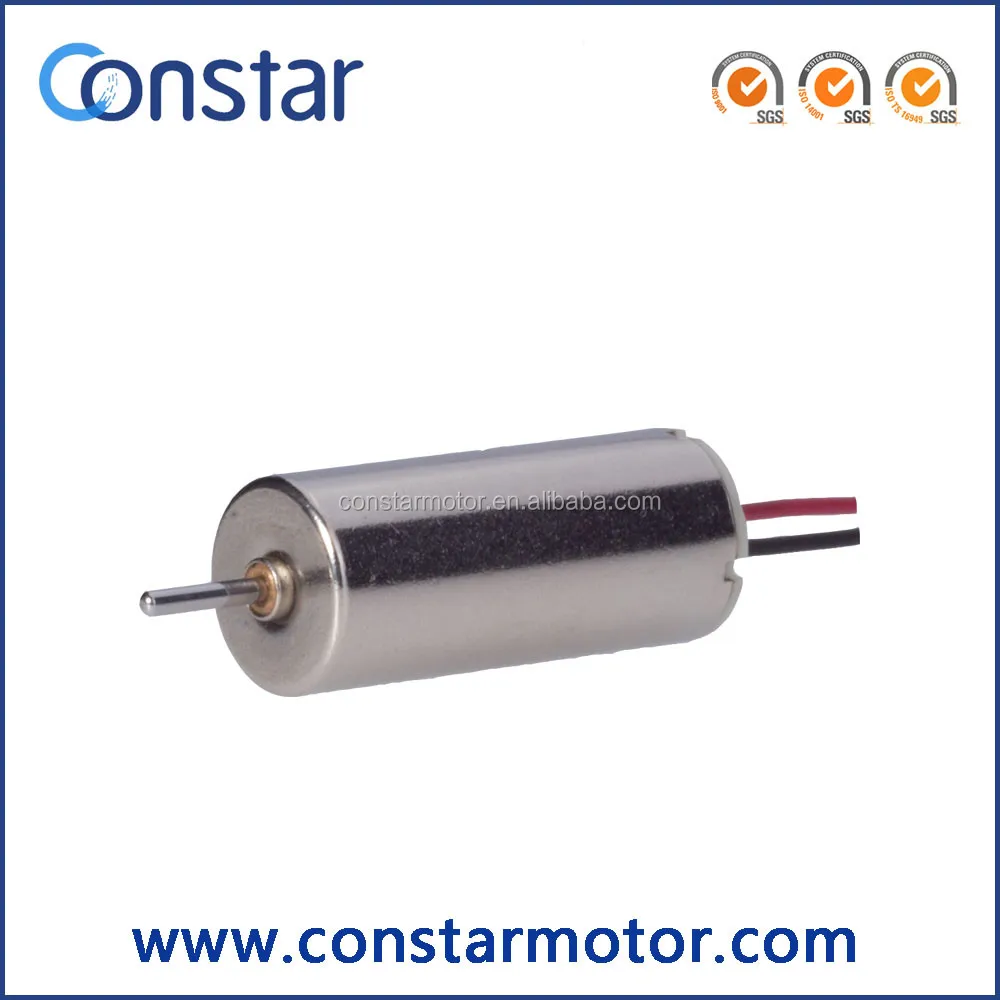

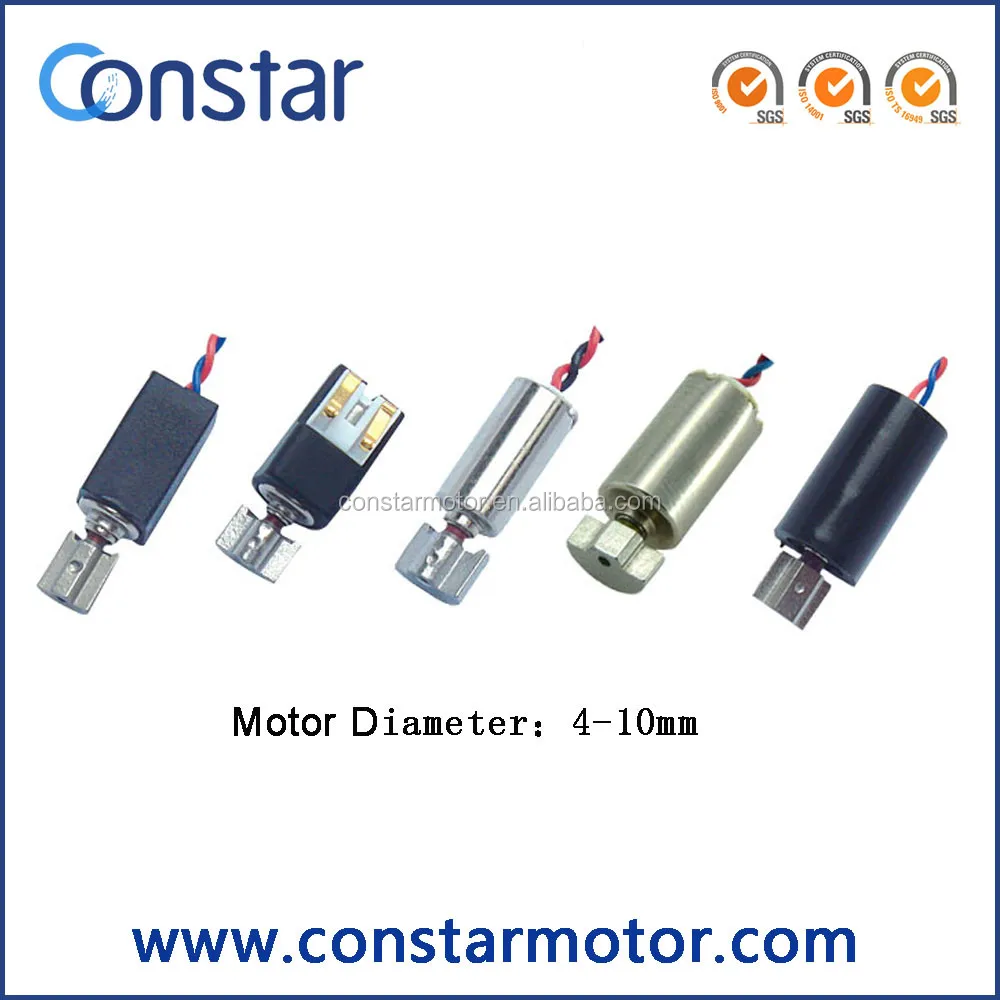

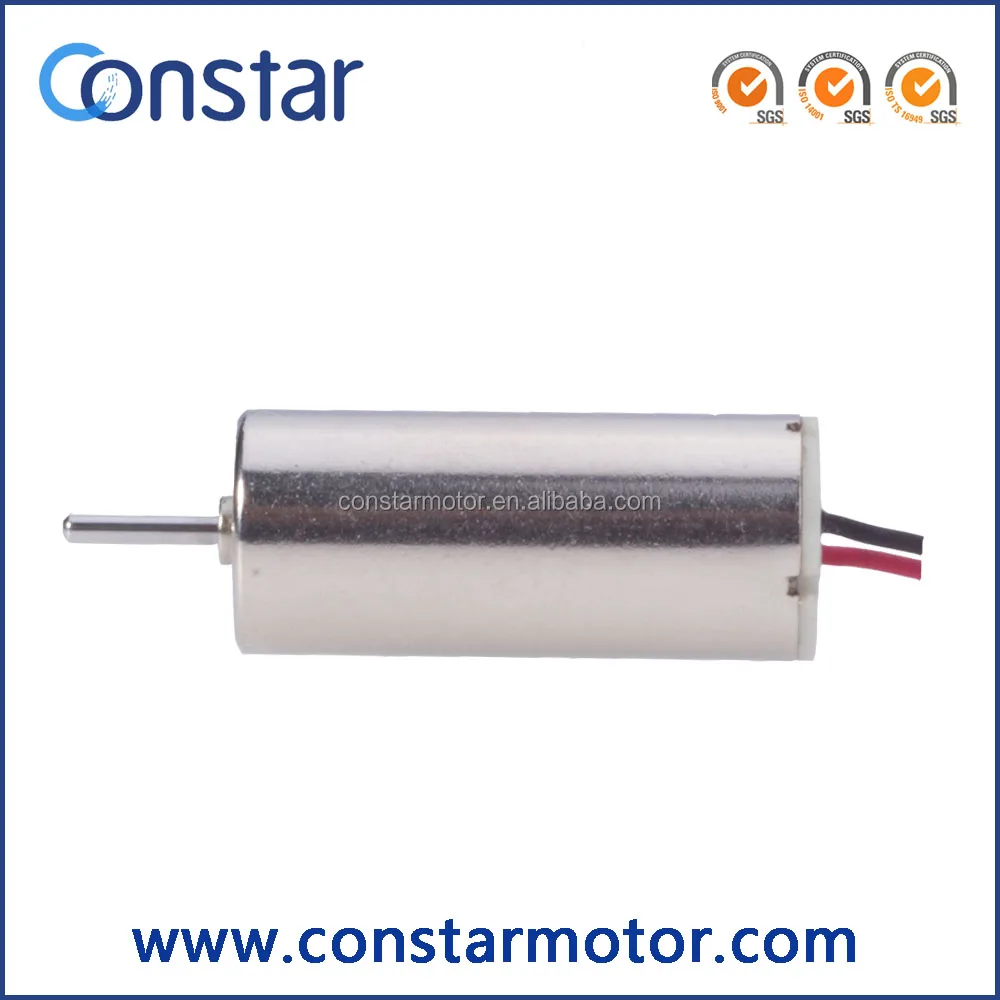

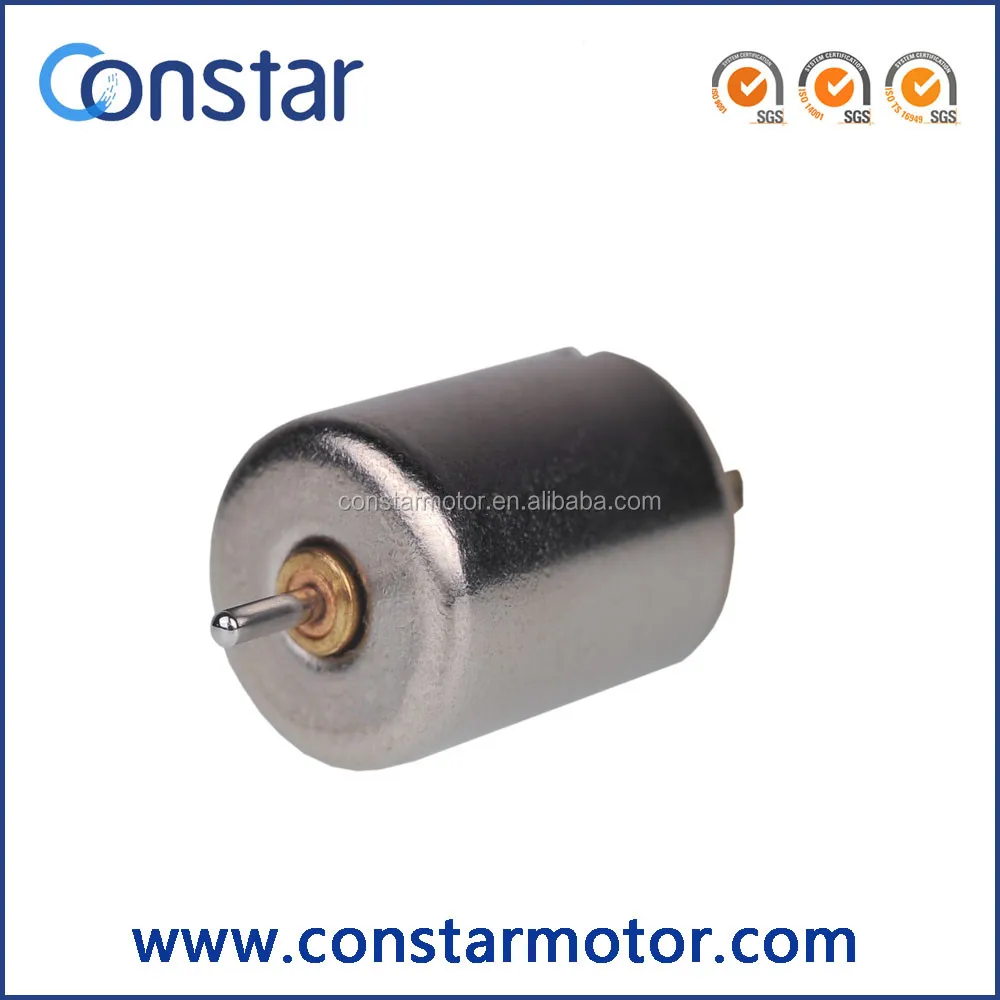

Product Show

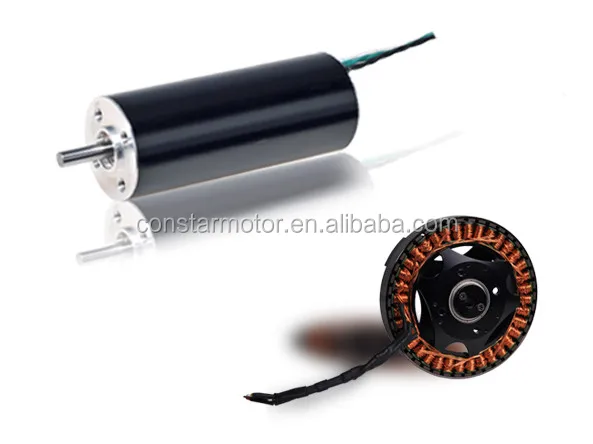

Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0408RN | Φ4*8 | 3.4 | 22 | 58000 | 40 | 0.41 |
| Φ4*8 | 5 | 25 | 78500 | 50 | 0.46 | |
| Φ4*8 | 3.4 | 11 | 75000 | 70 | 0.33 | |
| 0410RN | Φ4*10 | 3 | 45 | 32000 | 15 | 0.69 |
| 0412RN | Φ4*12 | 3.4 | 7 | 68000 | 60 | 0.42 |
| Φ4*12 | 3.4 | 8.3 | 65000 | 55 | 0.43 | |
| 0510RN | Φ5*10 | 3.5 | 15 | 5000 | 30 | 0.58 |
| Φ5*10 | 4.2 | 15 | 55000 | 40 | 0.63 | |
| 0609RN | Φ6*9 | 3 | 14.2 | 34000 | 40 | 0.68 |
| Φ6*9 | 3 | 7.8 | 49000 | 50 | 0.51 | |
| 0610RN | Φ6*10 | 3.5 | 8.9 | 37550 | 28 | 0.83 |
| Φ6*10 | 5 | 7.1 | 58500 | 45 | 0.76 | |
| Φ6*10 | 3.4 | 2.7 | 66500 | 100 | 0.45 | |
| 0612RN | Φ6*12 | 4.5 | 6.5 | 55000 | 60 | 0.71 |
| Φ6*12 | 3 | 39 | 16030 | 8 | 1.6 | |
| 0612RN52 | Φ6*12 | 3.7 | 1.7 | 76400 | 110 | 0.44 |
| Φ6*12 | 3.2 | 2.2 | 50000 | 80 | 0.58 | |
| Φ6*12 | 3.7 | 2 | 73000 | 90 | 0.46 | |
| 0614RN51 | Φ6*14 | 3.4 | 3.7 | 33280 | 37 | 0.94 |
| Φ6*14 | 3.4 | 2.6 | 40850 | 50 | 0.76 | |
| 0615RN55 | Φ6*15 | 3.1 | 2.5 | 36500 | 50 | 0.78 |
| Φ6*15 | 3.1 | 2.2 | 38000 | 52 | 0.75 | |
| Φ6*15 | 3.1 | 1.5 | 47500 | 75 | 0.6 | |
| 0710RN | Φ7*10 | 8 | 7.2 | 78000 | 95 | 0.9 |
| Φ7*10 | 8 | 8.1 | 74000 | 80 | 0.95 | |
| 0714RN | Φ7*14 | 6 | 5.65 | 43300 | 50 | 1.26 |
| Φ7*14 | 7.4 | 6.44 | 42600 | 40 | 1.6 | |
| Φ7*14 | 7.4 | 12.1 | 30450 | 30 | 2.21 | |
| 0716RN | Φ7*16 | 3.4 | 0.8 | 50500 | 110 | 0.63 |
| Φ7*16 | 3.4 | 0.9 | 48000 | 100 | 0.66 | |
| Φ7*16 | 3.2 | 1.1 | 43000 | 90 | 0.69 | |
| 0720RN | Φ7*20 | 3.2 | 0.97 | 34300 | 80 | 0.87 |
| Φ7*20 | 3.4 | 0.73 | 37160 | 100 | 0.85 | |
| Φ7*20 | 3 | 0.67 | 42370 | 100 | 0.66 | |
| 0820RN | Φ8*20 | 3 | 0.53 | 37000 | 130 | 0.76 |
| Φ8*20 | 3 | 0.67 | 32500 | 90 | 0.86 | |
| Φ8*20 | 3.4 | 0.35 | 51000 | 200 | 0.62 | |
| 0823RN | Φ8*23 | 3 | 0.47 | 34400 | 140 | 0.81 |
| Φ8*23 | 3 | 0.45 | 36700 | 160 | 0.76 | |
| 1013RN | Φ10*13 | 4.5 | 3.6 | 35000 | 70 | 1.2 |
| Φ10*13 | 3 | 20 | 11800 | 15 | 2.2 | |
| 1015RN | Φ10*15 | 4.5 | 4.7 | 26000 | 45 | 1.6 |
| 1020RN | Φ10*20 | 3.2 | 0.4 | 40000 | 170 | 0.7 |
| 1215RN | Φ12*15 | 4.5 | 1.9 | 25000 | 45 | 1.7 |
| Φ12*15 | 4.5 | 5 | 16200 | 30 | 2.6 | |
| Φ12*15 | 4.5 | 2.5 | 21000 | 40 | 2.0 | |
| 1620RN | Φ16*20 | 4.5 | 2.2 | 18500 | 35 | 2.3 |
| 1625RN | Φ16*25 | 6 | 3.1 | 8800 | 25 | 0.7 |
| 1630RN | Φ16*30 | 5 | 3.1 | 7600 | 25 | 6.2 |
| 1718RN | Φ17*18 | 6 | 2 | 19000 | 75 | 2.9 |
| 2233RN | Φ22*33 | 12 | 5 | 10500 | 40 | 10.7 |
| Φ22*33 | 12 | 34 | 5200 | 20 | 20.8 | |
| X0816RN | Φ8*16 | 6 | 5.1 | 43000 | 60 | 1.26 |
| Φ8*16 | 5 | 2.65 | 35700 | 40 | 1.31 | |
| X0820RN | Φ8*20 | 3.2 | 0.63 | 37850 | 130 | 0.79 |
| Φ8*20 | 3.4 | 0.5 | 49000 | 180 | 0.65 | |
| Φ8*20 | 3 | 0.45 | 46500 | 200 | 0.6 |
6mm micro DC coreless motor for toy helicopters
