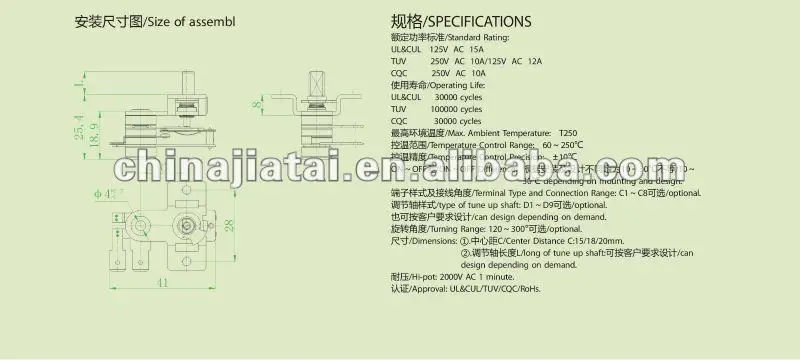

JIATAI KST254 W01 samovars temperature controller

KST254-V SERIES Specification:

Standard Rating:

UL&CUL

125V AC 15A

TUV

250V AC 10A/125V AC 12A

CQC

250V AC 10A

Operating Life:

UL&CUL

30000cycle

TUV

100000cycle

CQC

30000cycle

Max.Ambient Temperature

T250 ^oC

Temperature Control Range

60~250 ^oC

Temperature Control Precision

+- 10 ^oC

ON~OFF Difference

10~30 ^oC, depending on mounting and design

Terminal Type and Connection Range

C1~C8 optional

Type of tune up shaft

D1~D9Optional,candesign depending on demand

Center Distance C

15/18/20mm

length of tune up shaft

can design depending on demand

Hi-pot

2000V AC 1 minute

Approval

UL&CUL TUV CQC RoHS

Applicaton

1)Widely applied for temperature control of dry and steam electric iron etc .

2)Bimetal cling to the heat parts ,sensitive feel ,steady control and low differential

3)Firm configuration ,abundant types and flexible fixing position

4)Contacts act quickly and little electromagnetism infection
