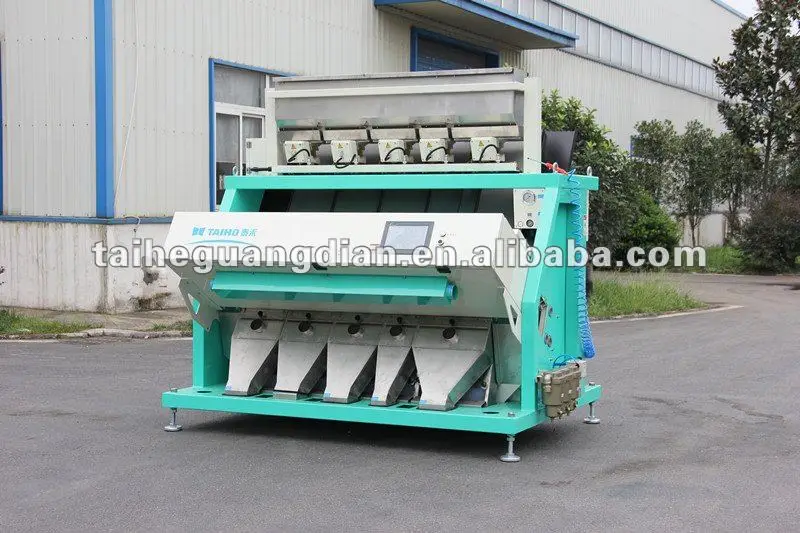

Leaf tobacco color sorter machine

Product Overview

Description



We are a China leading manufacturer of CCD color sorting machine. For the factories who are handling with various beans(soybean, mung bean, coffee bean, cocoa bean, etc.), Seeds(sunflower, pumpkin, melon’s seeds, etc)grains, rice(white, brown, etc.), nuts, kernels, peanuts, sesame, raisin, cashew nuts, corn, wheat, sugar, salt, tobacco leaf, lentil, etc, our color CCD color sorter can help reject flaw from the material, and classify these material with high efficiency and high accuracy, the machine's operation is very easy.

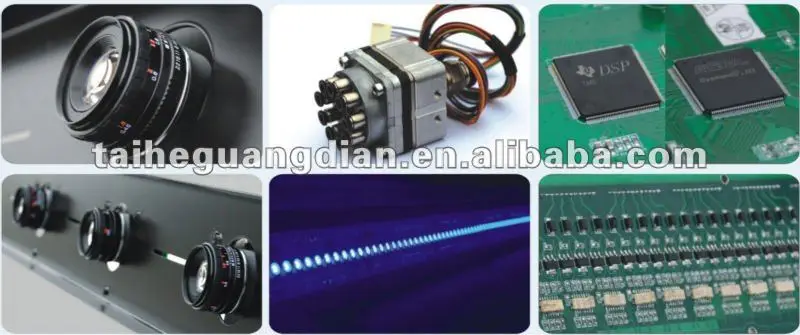

More Details:

1.DSP+FPGA Contron Chips: From American TI, processing much more faster

2.Ejecter: From Italy , more stable and long service life

3.CCD Camera: From American PERKINELMER, high resolution, high sensitivity, low noise.

4.Touch Sreen: From Japan SHARP,more clear and long service life.

Now, our machine is very popular in Southeast Asia, North and South America, Middle East Asia, European Area and Africa.

We hope to make our best service for you.  If you are interested in this machine, please feel free to contact me.

The technical specification is as following:



Product Name	CCD Grain Color Sorter
Model	6SXZ-126	6SXZ-189	6SXZ-252	6SXZ-315	6SXZ-378
Product Output(Mt/h)	1.0~4	2.0~6	3.0~8	4.0~10	5.0~12
Sorting Accuracy(%)	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99
Rejection Rate	≥10:1	≥10:1	≥10:1	≥10:1	≥10:1
Weight(Kg)	670	820	970	1120	1232
Minimum Resolution	0.04	0.04	0.04	0.04	0.04
Whole Power(KW)	1.4	1.8	2.2	2.6	3.0
Warranty	One Year	One Year	One Year	One Year	One Year
Cooling Mode	Wind Cooling	Wind Cooling	Wind Cooling	Wind Cooling	Wind Cooling
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
·The output,sorting accuracy and rejection are all according to testing the standard   peanut samples ,other parameters of minor cereals please consultative the sales from    company. ·If products update, no further notice.Please reference to the machine.
