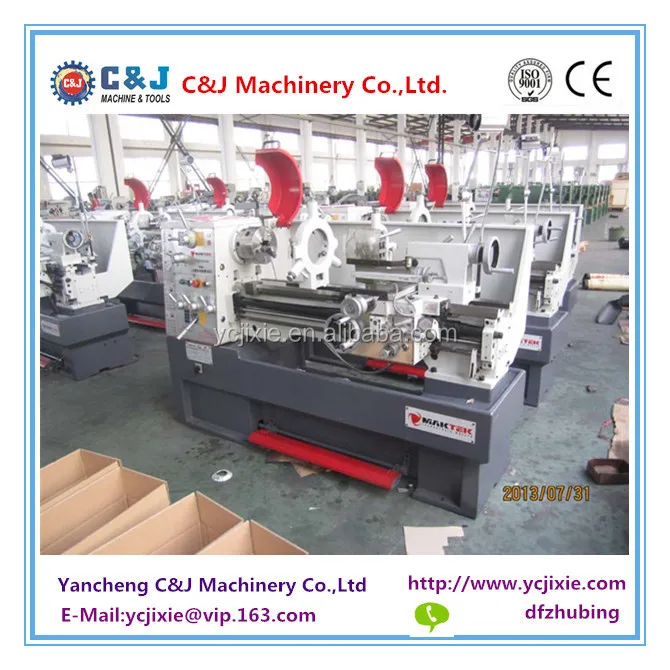

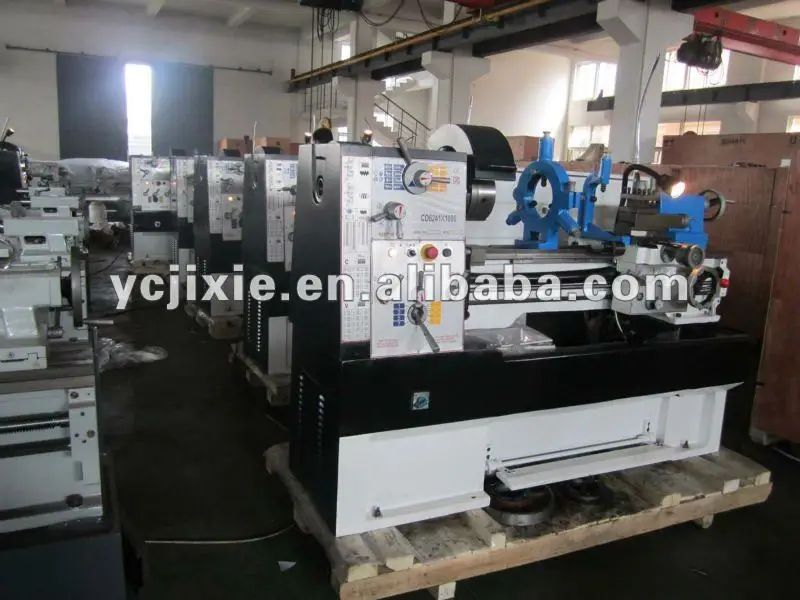

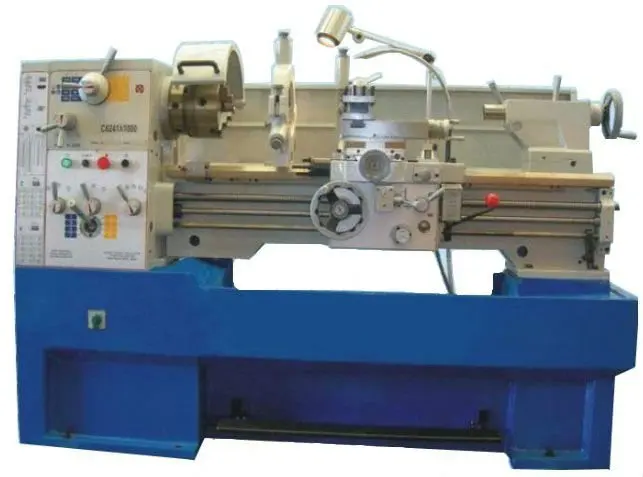

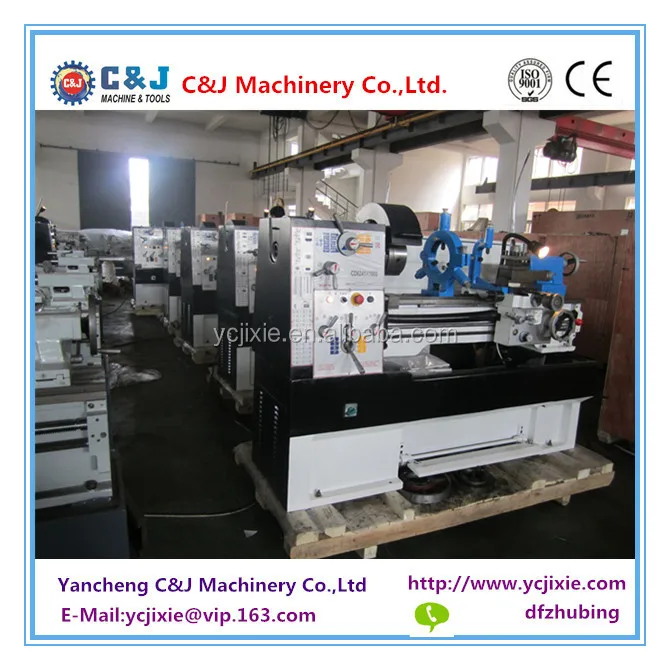

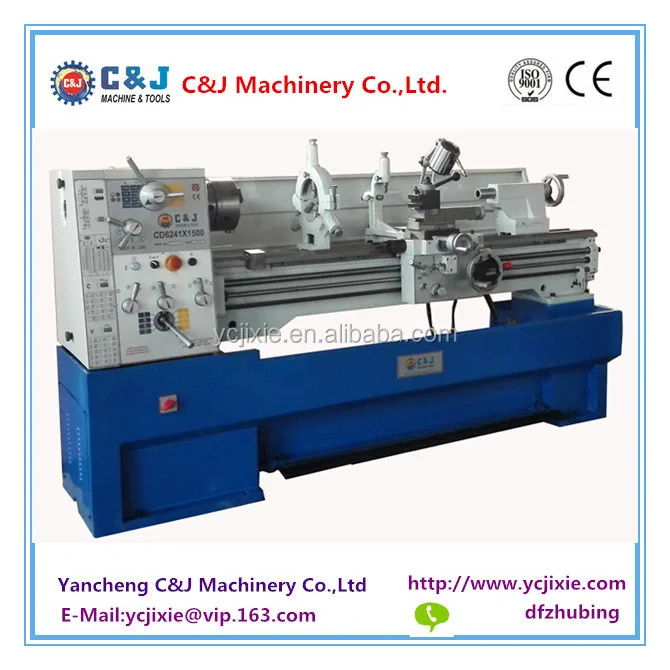

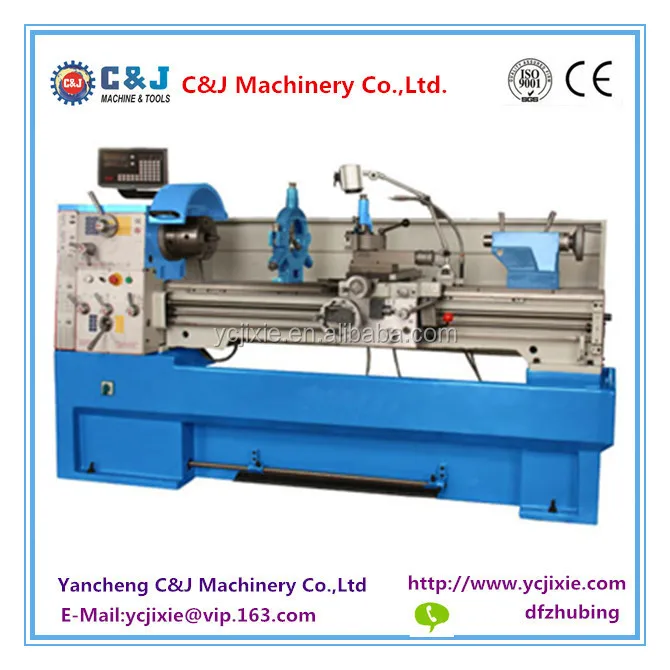

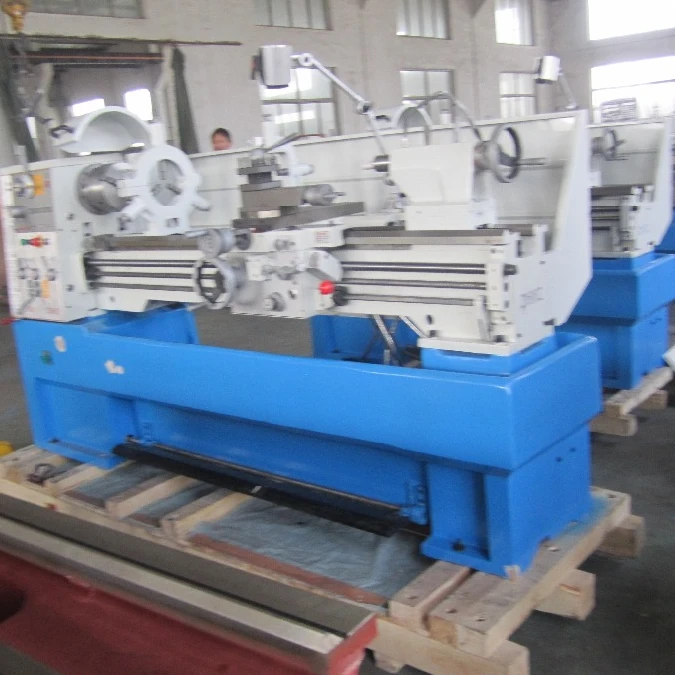

Torno CD6241 centre length 1000mm 1500mm precision Lathe

Top universal lathe CD6241 is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.

Inductive hardened, polished grey cast-iron machine bed
Mechanical foot brake reduces downtime significantly
Centrally located, logical switches for feeds and threads with lead screw and feed rod
State-of-the-art main spindle bearing with high-quality angular ball bearings
3-axis digital readout and quick tool post can be optional
Large, hardened, polished gears
Straightforward speed and feed adjustment
Hardened, polished fears and shafts, also in feed gear unit
The removable bridge allows machining of workpieces with a big diameter, hand wheels feature adjustable sacle (0, 02 mm)
Very robust and professional machine.
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
250mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 580mm
Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 6 position length-stop on bed-way for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Low voltage halogen work light
Lubrication pump on saddle oiling slides
D1-6 camlock spindle for quick chuck removal
Large 52mm spindle bore
2 speedmotor
Torno CD6241 centre length 1000mm 1500mm precision Lathe
Standard accessories:
3-jaw chuck DK11-200 mm / D6
Independent chuck K72-250 mm / D6
Face plate 350 mm
Steady rest
Follow rest
Coolant device
4-way tool post holder
Micrometer-longitudinal stop
Thread dial
Foot brake
Halogen light
Change gears
2 dead centers
Splash guard
Tools
Torno CD6241 centre length 1000mm 1500mm precision Lathe
TOP UNIVERSAL LATHE CD6241 SPECIFICATION
Swing over bed 410mm
Swing over cross slide 255mm
Swing over bed in gap 580mm
Center height 205mm
Distance between centers: 1000mm
Width of bed 250mm
Spindle hole. 52mm
Spindle nose fixture DIN 55029, D1 - 6
Taper of spindle MT6
Number of speeds 16kinds
Speed range:
45 to 70 - 90 - 108 to 140 - 165 - 215-330 - 255-385 - 510-585 - 770-900 - 1170 - 1800.
English threading 2 to 72 TPI. (45 kinds)
Metric threading 0.2 to 14 mm. (39 kinds)
Longitudinal inch feed: 0.002 "to 0.067" per revolution. (17kinds )
Long Metric feed 0.05 to 1.7 mm per revolution. (17 kinds )
Cross metric feed 0.025-0.85mm/rev(17 kinds)
Modular range 0.3 to 3.5 MP. (18 kinds )
Diameter range: 8 to 44 DP. (21kinds )
Type tool post: 4 Way tool post.
Maximum tool diameter in the appropriate container: 20 x 20 mm.
Maximum displacement of the support cone 140 mm.
Maximum displacement of the lateral support 210 mm.
Overhang of the quill 120mm.
Diameter of quill 50 mm.
Taper of tailstock sleeve MT4
Packing Dimensions: 205 x 95 x 160 cm.
Motor 2.2KW / 3.3 KW. (2 speeds 400 volts. )
Weight: Approx. 1350 KG

 Torno CD6241 centre length 1000mm 1500mm precision Lathe

SPECIFICATION	MODELS
	CD6241× 1000
CAPACITY
Swing over bed	410mm(16" )
Swing over cross slide	255mm(10" )
Swing in gap	580(23" )
Length of gap	250(10" )
Distance between centers	1000mm(40" )
Center height	20.5"
Width of bed	250(10" )
HEADSTOCK
Spindle nose	D1-6
Spindle bore	52mm(2" )
Taper of spindle bore	No. 6Morse
Range of spindle speed	16 changes 45-1800r/min
FEEDS AND THREADS
Max. travel of compound rest	102mm(4" )
Max. travel of cross slide	210mm(8-1/4" )
Leadscrew pitch	4T. P. I.
Max. Section of tool	20× 20mm(13/16" )
Longitudinal feeds range	0.05-1.7mm/rev(0.002" -0.067" /rev)
Cross oeeds range	0.025-0.85mm(0.001" -0.0335" /rev)
Metric threads range	39kinds 0.2-14mm
Inch threads range	45kinds 2-72T. P. I
Diametrical pitchesrange	21kinds 44D. P.
Module pitches range	18kinds 0.3-3.5M. P.
TAILSTOCK
Dia. of tailstock sleeve	50mm(2" )
Travel of tailstock sleeve	120mm(4-3/4" )
Morse taper of tailstock sleeve	No. 4 Morse
Cross adjustock	± 13mm(± 1/2" )
MOTOR
Power of main motor	2.8/3.3kw(3.8/4.5HP)3PH
Power of coolant pump	0.1KW(1/8HP), 3PH
DIMENSION AND WEIGHT
Overall dimension(L× W× H) mm	1940× 850× 1300	1940× 850× 1320
Packing size(L× W× H)mm	2060× 900× 1640	2060× 900× 1640
Net weight/Gross weight	1500/1750	1550/1800
STANDARD ACCESSORIES
200mm Three Jaw Chuck and Adapter 320mm Four Jaw Chuck and Adapter 300mm Face Plates Steady Rest Follow Rest Thread Chasing Dial Mt/6/4 Sleeve and MT 4 Center Oil Gun One set of Wrenches Operation Manual
SPECIAL ACCESSORIES
1.200mm Driving plate 2. Quick change Tool Post 3. Taper Turning Attachment
