MB4016F four side moulder for planing wood

Product Overview

Description

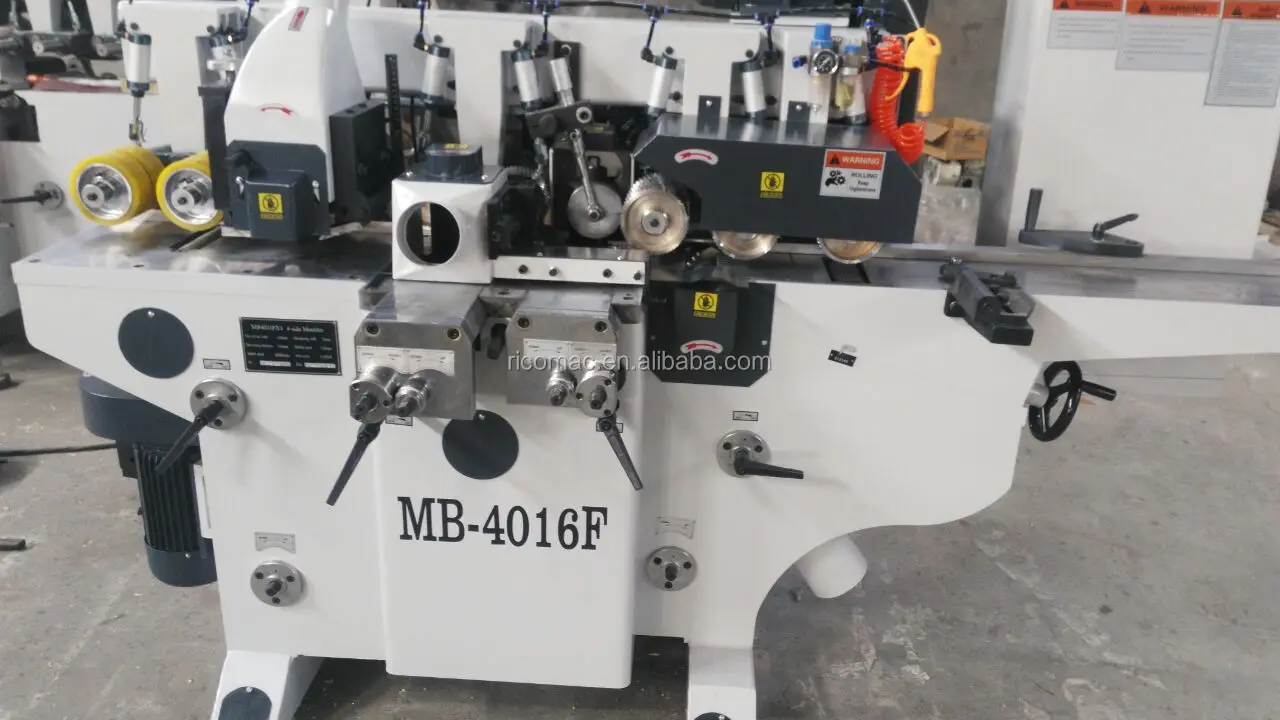

MB4016F four side moulder



Model	MB4012F	MB4016F
Processing width	15-130mm	15-170mm
Processing thickness	8-110mm	8-100mm
Feeding speed	5-20m/min	5-20m/min
Knife speed	6000r/min	6000r/min
Feeding power	1.5kw	2.2kw
First bottom power	2.2kw	3kw
Left cutter power	2.2kw(3kw)	2.2kw
Right cutter power	2.2kw	2.2kw
First top power	4kw	4kw
Beam lifting power	0.37kw	0.37kw
Total power consumption	12.47kw	13.97kw
Max. cutting round	125mm	125mm
Overall dimension	2250*1130*1540mm	2250*1200*1540mm
Net weight	1250kgs	1360kgs





Guarantee&Aftersales service:

1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage

2.24 hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.As the improvement of the products, any change of the machines and parts should not be advised separately.

Pls send us the qty/model/size of the four side moulder machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
