EI 30/18 2.3VA PCB mounting type transformer Encapsulated Transformers manufacturer

Product Overview

Description

EI 30/18 2.3VA PCB mounting-type transformer Encapsulated Transformers manufacturer

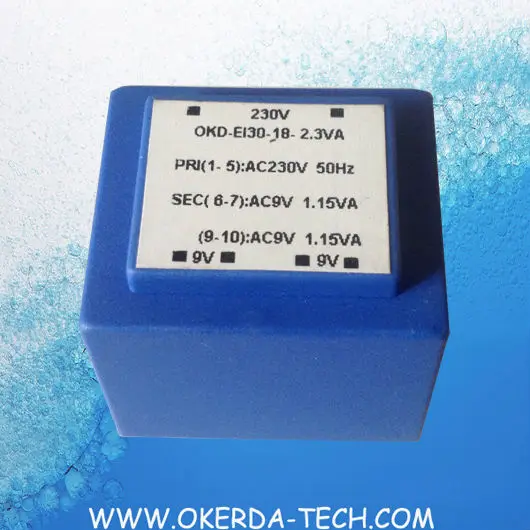

OKD-EI30-18-2.3VA

• Frequency 50/60Hz


• Split-bobbin


• Temperature class ta 70°C/B


• Weight: 0.112kg

Primary (V)	Secondary (V/mA)	No-Load Voltage(V)	Part Number
230	6/384	10.00	OKDEI30-2.3VA-01A
230	9/256	13.80	OKDEI30-2.3VA-02A
230	12/192	18.60	OKDEI30-2.3VA-03A
230	15/154	23.80	OKDEI30-2.3VA-04A
230	18/128	27.80	OKDEI30-2.3VA-05A
230	24/96	34.70	OKDEI30-2.3VA-06A
230	2×6/192	2×9.90	OKDEI30-2.3VA-07A
230	2×9/128	2×14.00	OKDEI30-2.3VA-08A
230	2×12/96	2×17.50	OKDEI30-2.3VA-09A
230	2×15/77	2×24.40	OKDEI30-2.3VA-10A
230	2×18/64	2×29.30	OKDEI30-2.3VA-11A
230	2×24/48	2×35.80	OKDEI30-2.3VA-12A
115	6/384	10.00	OKDEI30-2.3VA-13A
115	9/256	13.80	OKDEI30-2.3VA-14A
115	12/192	18.60	OKDEI30-2.3VA-15A
115	15/154	23.80	OKDEI30-2.3VA-16A
115	18/128	27.80	OKDEI30-2.3VA-17A
115	24/96	34.70	OKDEI30-2.3VA-18A
115	2×6/192	2×9.90	OKDEI30-2.3VA-19A
115	2×9/128	2×14.00	OKDEI30-2.3VA-20A
115	2×12/96	2×17.50	OKDEI30-2.3VA-21A
115	2×15/77	2×24.40	OKDEI30-2.3VA-22A
115	2×18/64	2×29.30	OKDEI30-2.3VA-23A
115	2×24/48	2×35.80	OKDEI30-2.3VA-24A
2×115	6/384	10.00	OKDEI30-2.3VA-25A
2×115	9/256	13.80	OKDEI30-2.3VA-26A
2×115	12/192	18.60	OKDEI30-2.3VA-27A
2×115	15/154	23.80	OKDEI30-2.3VA-28A
2×115	18/128	27.80	OKDEI30-2.3VA-29A
2×115	24/96	34.70	OKDEI30-2.3VA-30A
2×115	2×6/192	2×9.90	OKDEI30-2.3VA-31A
2×115	2×9/128	2×14.00	OKDEI30-2.3VA-32A
2×115	2×12/96	2×17.50	OKDEI30-2.3VA-33A
2×115	2×15/77	2×24.40	OKDEI30-2.3VA-34A
2×115	2×18/64	2×29.30	OKDEI30-2.3VA-35A
2×115	2×24/48	2×35.80	OKDEI30-2.3VA-36A
