Universal Tool and Cutter Grinder Especially for HSS Tungste Carbide Machine MQ6025A
- Category: >>>
- Supplier: Dongguan Gongda Precision Machinery Co. Ltd.
Share on (552307257):
Product Overview
Description
Manual Operate Universal Tool and Cutter Grinder Especially for HSS Tungste Carbide Machine MQ6025A
Product name: | high quality CE-approved tool grinding machine MQ6025A multi-functional Universal sharpening tool grinder | ||
Model Number: | MQ6025A | place of origin: | Guangdong, China (Mainland) |
Brand Name: | GUONGDA | Manufacturers: | Qiandao Precision Machinery |
Type: | Universal | Certificate: | CE,ISO 9001 |
Product Description

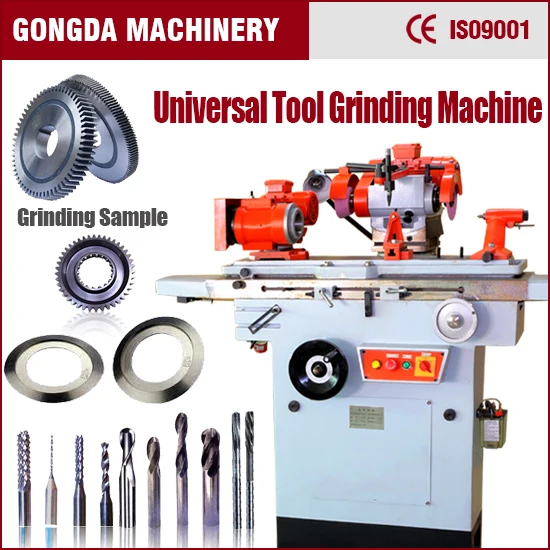

Universal Tool And Cutter Grinding Machine Tool Grinder
The series machine are specially suitable for sharpening tools in HSS,tungsten carbide and other materials ,also for cylindrical ,surface ,slot and profile grinding work .

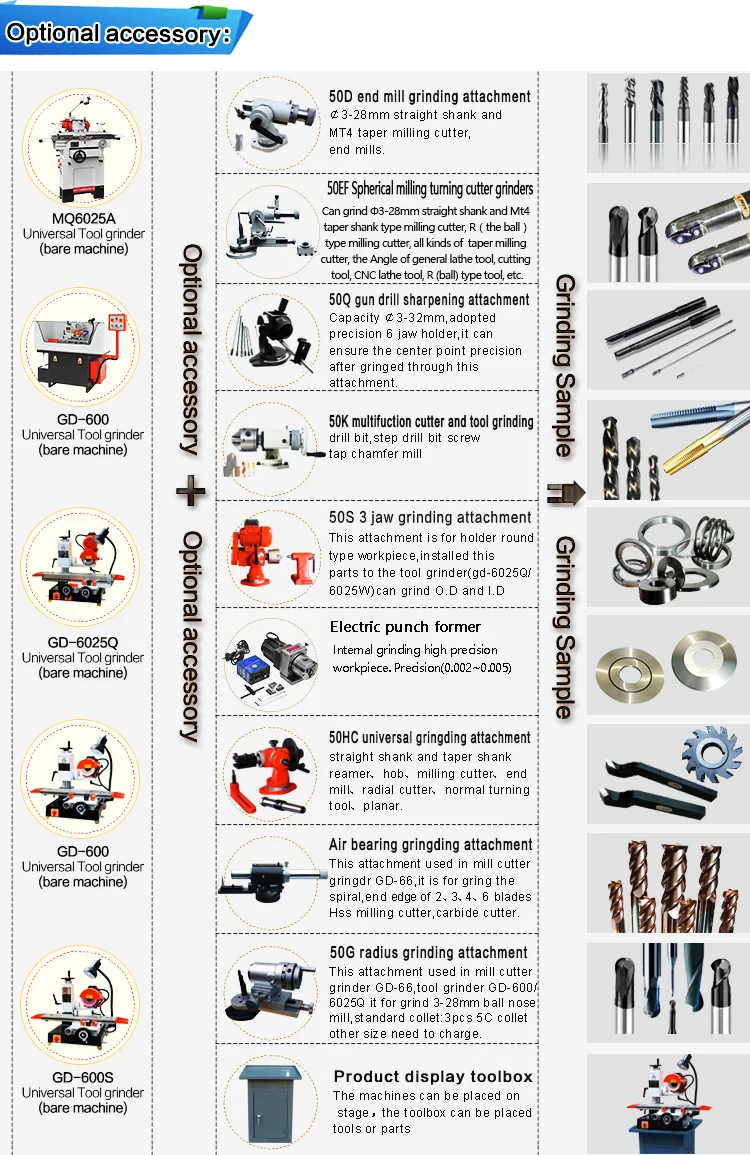

By using additional attachments,you greatly extend the range of application of there
Machinery and can solve individual machining problems ,such as grinding of various hobs
,tools ,spherica cutters,Twist drills and steep taper reamers,etc.
The series machine wheelhead with two -dimensional setting .workhead stock swivels with double air, and supplied with ISO-50 taper hole .worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
Features:
This series machine are specially suitable for shrpening tools in HSS, tungsten carbide and other materials, also for cylindrical, surface, slot and profile grinding wor. By using additionl attachments, you greatly extend the range of application of there machinery and can solve individual machining problems, such as grindign fo various hobs, tools, spherica cutters, twist drills and steep taper reamers, etc. The series machine wheelhead with two-dimensional setting(except MA6025B), workhead stock swivels with double dir. And supplied with ISO-50 taper hole. Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
Parameters |
| |
Swing dia.of workpiece | 250mm | |
Distance between centers | 700mm | |
Area if tge ioeratuib tavke | 940*135mm | |
Longitudinal travel of table | 480mm | |
Swing angle of table | 120°(60°) | |
Max travel of wheel head cross wertica | 225mm | |
Wheel center line of the min distance between the top | 50mm | |
Wheel center line of the max distance bewteen the top | 265mm | |
The max movement in the vertical direction | 270mm | |
Wheel certer line up to the top | 200mm | |
Wheel certer line down to the top | 65mm | |
Swing angle of wheel head in horizontal pline | 360° | |
Swing angle of wheel head in vertical pline | 30°(±15°) | |
The end taper of the spindle | MT3# TAPER ANGLE | |
Grinding head motor power 50Hz | Power | 0.85/1.1KW |
Speed | 1400/2800rpm | |
The speed of grinding head | 3010/6010rpm | |
The Motor of Cylindrical grinding attachment:50Hz | Power | 0.25KW |
Speed | 1400RPM | |
The size of the machine | 1650*1150*1500mm | |
The weight of the machine | 940kg | |

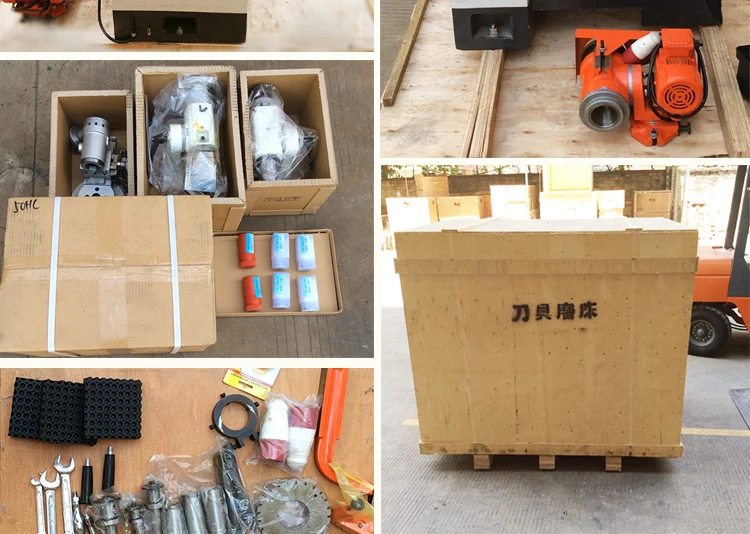

Tail stock | 1 set (2 pcs : left+right ) |
Grinding Wheel Dresser | 1 set |
Grinding Wheel Guard | 2 pcs |
Grinding Inner Round Core Shaft | 1 pc |
Saw Cutter Support Attachment | 1 set |
Cutter Arbor φ22,27,32 | 1 pc/ size |
Pull Rod | 1 pcs |
Inner Hex Wrenches | 1 set |
Foot Pad | 3 pcs |
Grinding Wheel | 2 pcs |
Tool box | 1 pc |
Division Plate | 1 pc |
2# Core Clamper | 1 pc |
Lengthened Grinding Wheel Shaft | 1 pc |
Drill Holder | 3 pcs |
Center Gage | 1 pc |
Operation Instruction | 1 pc |
