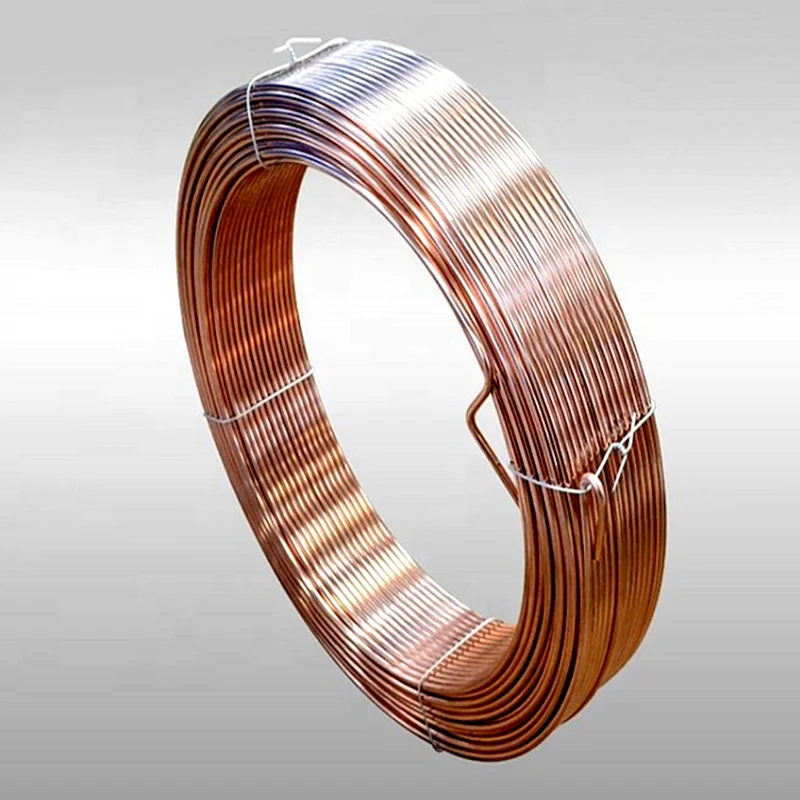

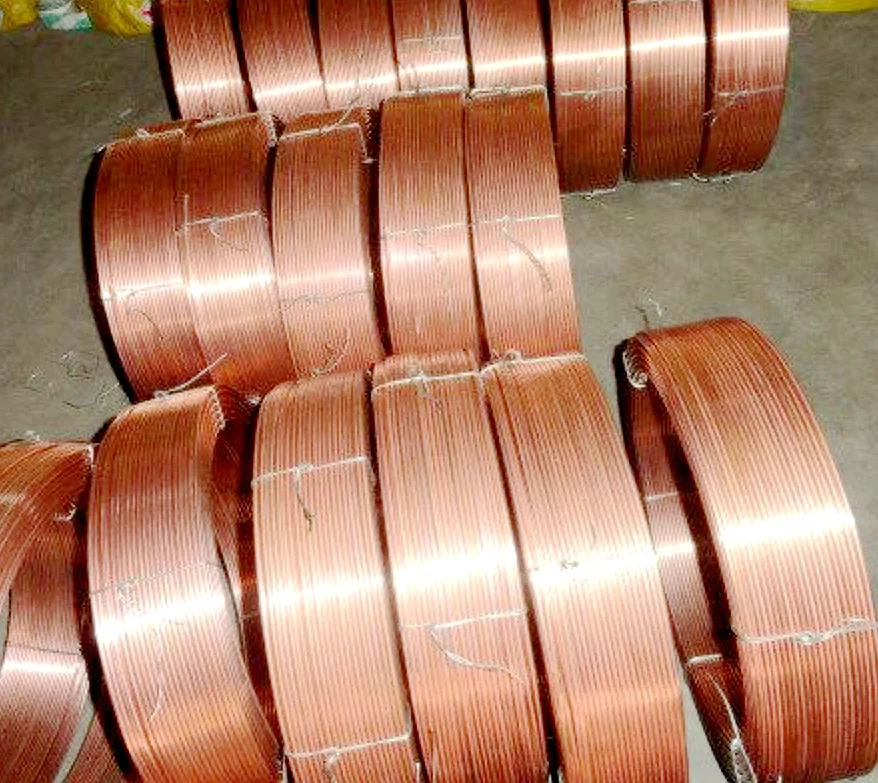

TIANJIN PORT stone Bridge Brand Submerge Arc Welding Wire Aws Eh14 With Copper Coated

Product Overview

Description

free sample copper coated submerged arc welding wire



Description:

Carbon steel submerged arc welding wire are used with corresponding flux and gotten excellent mechanical seam.they have a series

of advantage,such as high effciency,stable welding quality,high depositing efficiency etc.

Application:

They are used to welding important low carbon steel and low allow steel structure,such as boils,nuclear stations,chemical containers,

ships,pressure containers etc.

Specification:

Dia:1.6mm 2.0mm 2.5mm 3.2mm 4.0mm 5.0mm

Type:GB H08A H08MnA H08Mn2SiA H10Mn2

          AWS  EL-8 EM12 EH14

Chemical composition:

	C	Si	Mn	S	P
EL8	0.09	0.02	0.50	0.02	0.03
EM12K	0.09	0.07	1.05	0.005	0.009
EH14	0.12	0.07	1.90	0.011	0.014

Mechanical Properties of deposited metal

performance	Yield strength Mpa	Tensile strength Mpa	Extension (%)	Shock value(°C)
H08A	≥330	≥410	≥22	≥27
H08MNA	≥330	≥410	≥22	≥27
H10Mn2	≥330	≥410	≥22

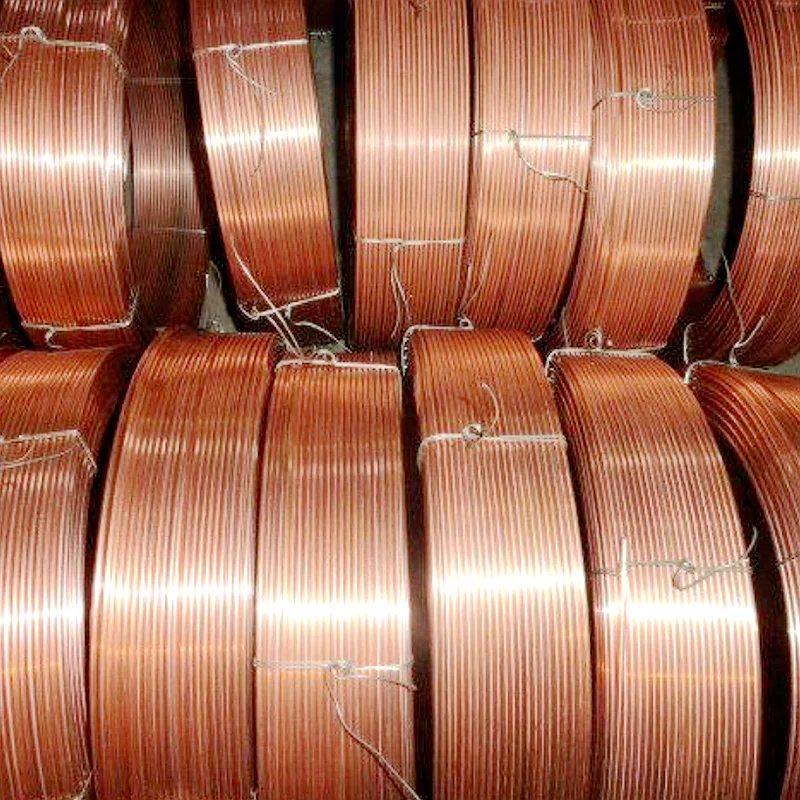

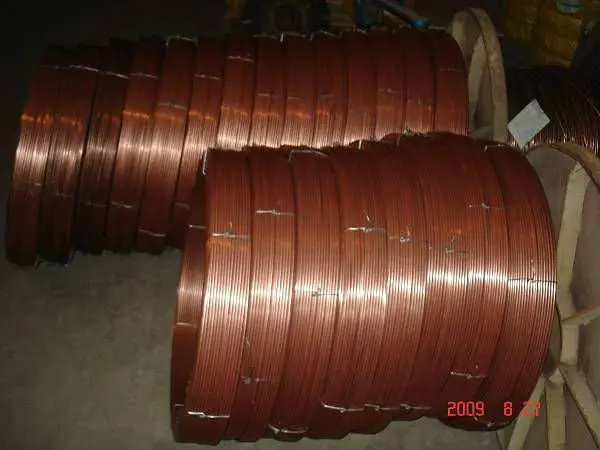

Packaging

Size(mm)	1.6	2.4	3.2	4.0	2.0
25Kilo coil
300kilo coil

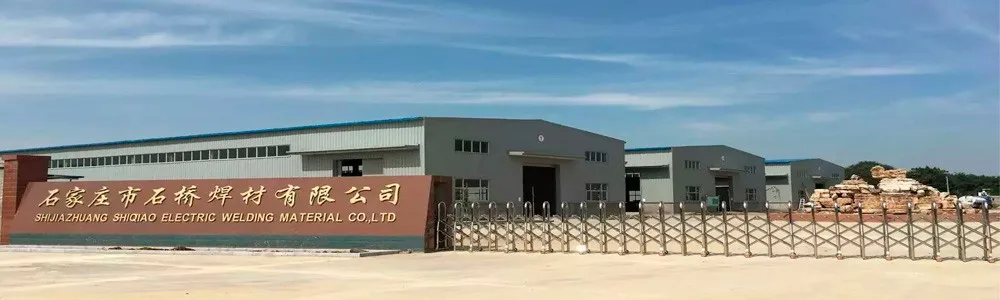

 Business type:manufacturer

Certificate:ISO CE AWS SONCAP
