GSM to pstn converter /GSM wireless terminal sagem RL300 900/1800Mhz

Product Overview

Description

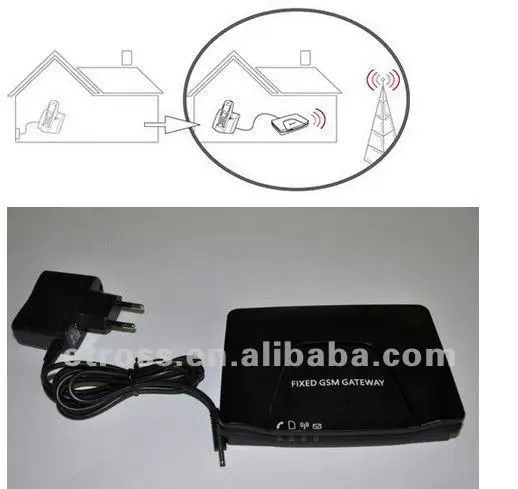

SAGEM RL300 is a convenient GSM gateway used to connect phone to access GSM network plugging your phone

Sagem XS200/MO300 Industry GSM module
Digital Antenna inside
Support voice and SMS
Support CLIP
Visualization and voice

DTMF dial
Support AMR,EFR,FR and HR codec
Call waiting
Multi partite talking

GSM Frequency
-TDMA 850/ PCS 1900
-EGSM 900/ DCS 1800
Support 3V SIM card

Power Supply
DC 6V/1A
AC 100- 240 V. 50-60 HZ

Dimensions: L139 *W95* H30mm
Weight: 200g

The box contains:

-rl300 device,

-external power supply,

Quick installation guide,

Your phone and all networks must support the SMS feature











Call

Make or receive a call is Similar to your fixed line

When your phone is ringing just lift up the handset of the telephone set and speak.

Dial your number, after a timeout (end of dialing timeout default value:4sec)the call Will be launched. To speed up you can press# at the end of the number.

To handle a second call, press r2, to accept, swap between calls.

To join the 2 calls and make a multiparty call, press r3

If voicemail led is blinking, call the 5500 to listen to your messages.

During the call the led will be switched off.



SMS

RL300 supports SMS sending and receiving.*please check your phone manual to check if it supported and usage instructions

Service center configuration:

Number: 0172 227 0333

In order to activate the SMS service you need first to send a SMS to your own number, if failures occur , SMS service will be deactivated. Sending successfully a SMS will reactivate it.
