For iPod/iPhone car adapter audio kit (CD changer interface)

Product Overview

Description

iPod car adapter

Item No.: YT-M05
Brand: YATOUR
Origin: Guangzhou China

Size:

l         Module unit: 94 x 66 x 16mm

l         Packing box: 132 x 50 x 215mm

l         Net weight: 80g;

l         Gross weight:300g;

l         50units/big carton

Introduction:

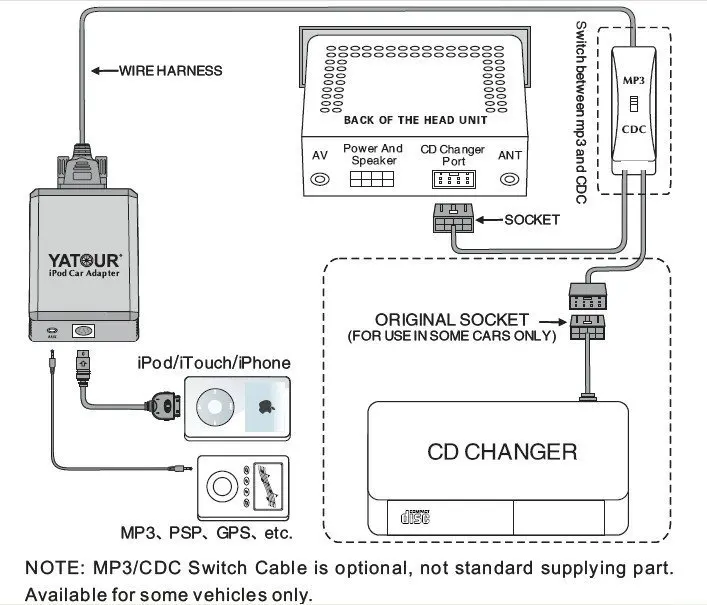

This is a digital integration kit between your iPod (iPhone) and OEM car stereo system for many vehicles. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage. Simply plug iPod to our car adapter , you can play audio through car audio system and enjoy music in your car.iPod car adapter insures CD quality sound from iPod/iPhone to the car stereo speakers.

Features:

.Plug&play

  Direct connection via CD changer port

.Line Level Audio
  Deliver high-fidelity line level audio output from your iPod to your factory car stereo.

.Integrated Controls
  Allows you to control music from your iPod, or radio and steering wheel controls.

.Charges iPod/iPhone
  Always keeps your iPod charged and ready to go. Charges 5V/12V models.

.AUX Input
  Connect any external audio device

.Works with iPhone

  Call in reminding via radio speaker

.Last position memory

  Supports Apple iTunes playlist as Virtual cds

.Specific,not universal

  Different module firmware versions for different types of protocol of Car stereos

Available Solutions:

•  For OEM radios : VW, Audi, Toyota, Honda, Mazda, Smart,BMW, Hyundai, Kia, Acura, Lexus, Skoda Fiat Citroen Ford Volvo Mercedes Nissan Suzuki Renault etc

Specification:

l         Voltage Input : 12V DC

l         Signal-to-Noise : 95DB

l         Max. Current : 600MA

l         Max. Voltage output : 12V

l         D/A Device : 24BIT 192KHZ

l         Total Harmonic Distortion : 0.01%

l         Frequency Response : 20HZ-20KHZ

l         Working Temperature : -10C- 80C

Supported operations

For most car radio, the following operations will be supported

l         Disk Change

When you select Disk number or DISC+, DISC-, MP3 or iPod will jump to the playlist(folder)

l         Next track

When pressed on car stereo,MP3 or iPod will jump to the next song and car stereo track number will represent song number in a current playlist(folder)

l         Previous track

When pressed on car stereo, MP3 or iPod will jump to the previous song and car stereo track number will represent song number in a current playlist(folder)

l         Fast Forward

When pressed, MP3 or iPod will start rewinding current track forward. Time on car stereo will represent actual position within the audio track.

l         Fast Reverse

When pressed, MP3 or iPod will start rewinding current track backward. Time on car stereo will represent actual position within the audio track.

l         Play/Pause

The MP3 or iPod will automatically start play or pause.

l         Repeat

It will switch between MP3/iPod and AUX IN

l         Scan

If without Repeat button in stereo, it will switch between MP3 and AUX IN

l         Disk / Mode / CDC / SOURCE / AUX

It will switch between YATOUR and FM/AM

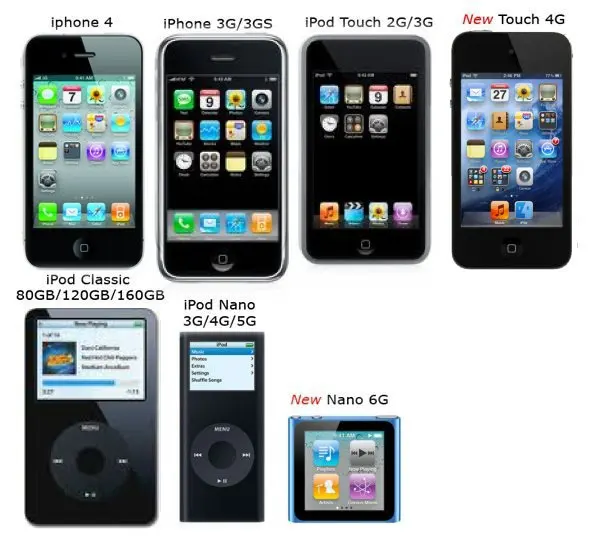

Supports :iPod 4th Generation onwards, classic, Mini, nano,touch,iPhone 2G/3G/3GS/4G

Also compatible with all other iPod Generations including:

• iPod Nano - 3rd Generation
• iPod Nano - 2nd Generation
• iPod Nano - 1st Generation
• iPod Video – 5th Generation
• iPod 4th Generation (Photo)
• iPod 3rd Generation
• iPod Mini - All generations

Note: The interface can only connect to the iPod shuffle via the 3.5mm Aux input
