Popular Plastic PP/PE Wire Drawing Extruder Machine Price/plastic wire making machine
- Category: >>>
- Supplier: Laizhou Liangong Machinery Co. Ltd.
Share on (554671901):
Product Overview
Description

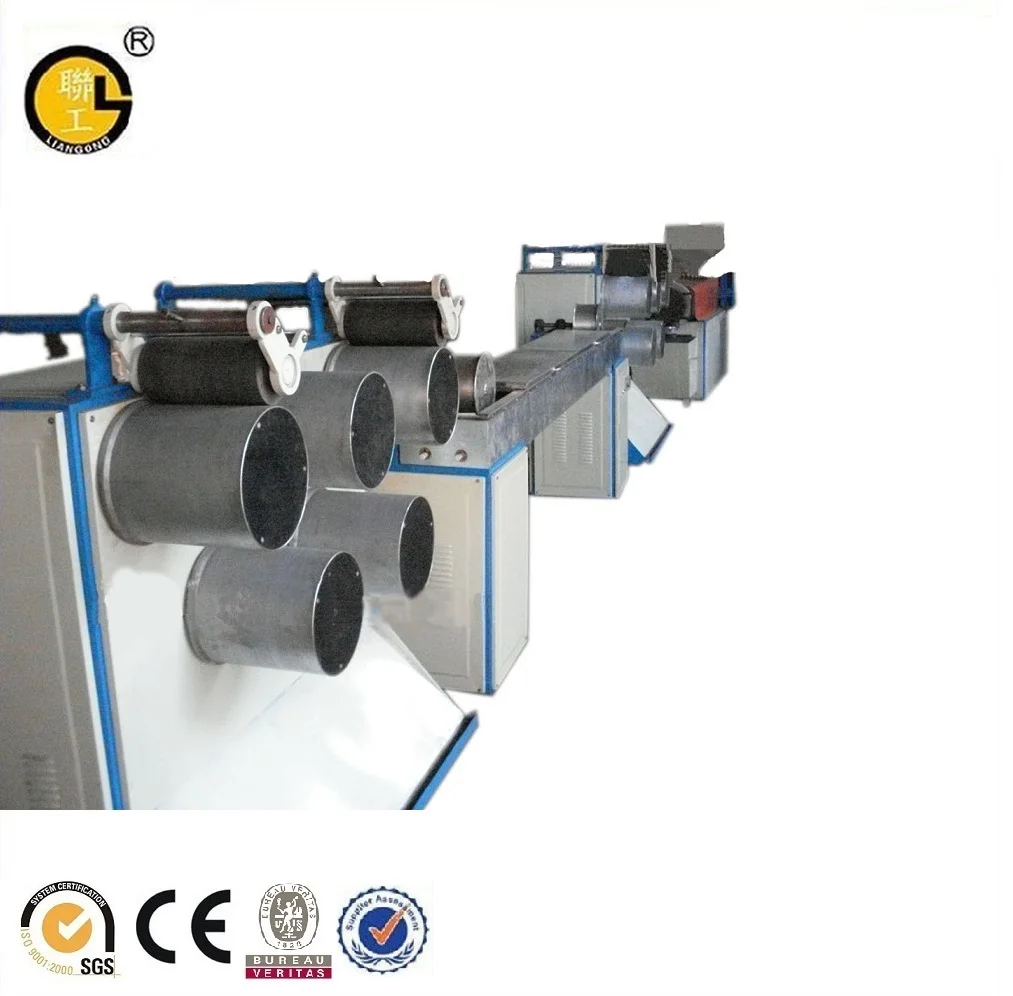

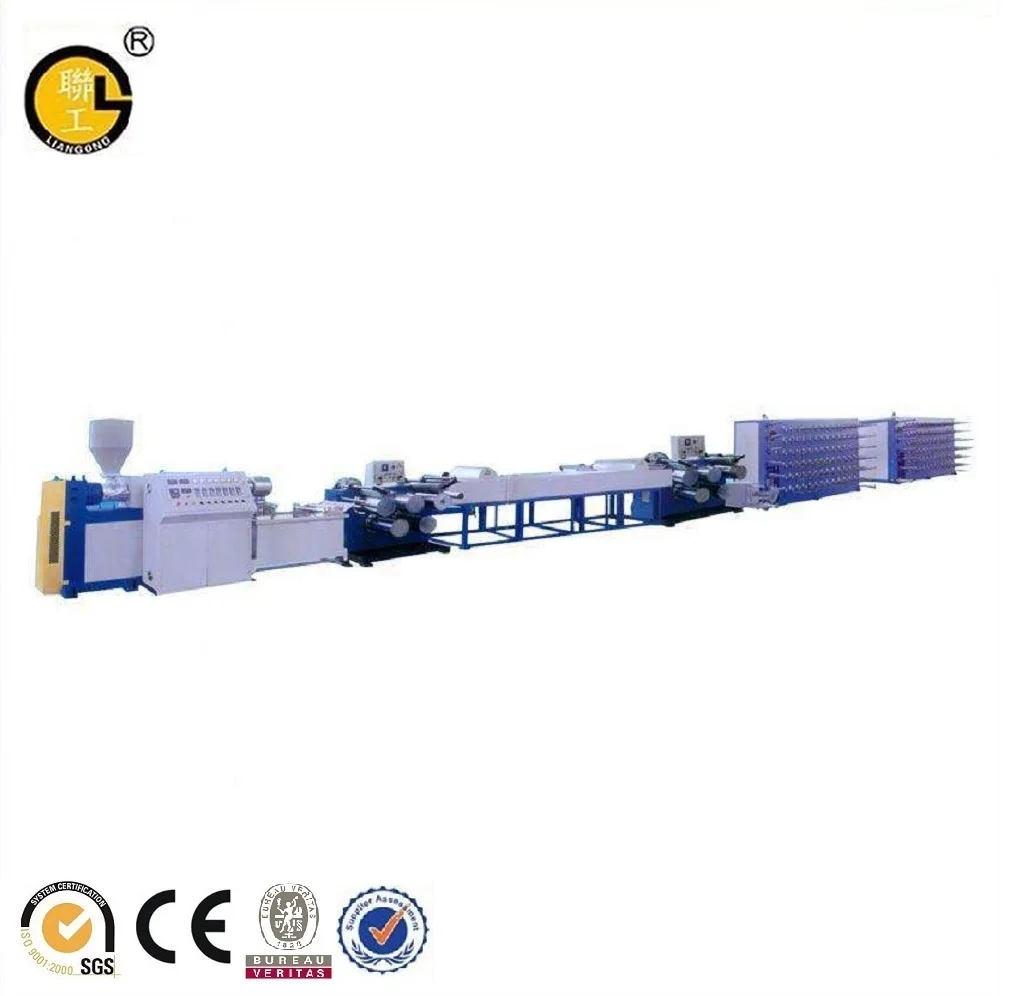

Plastic wire drawing machine
Uses and Features
LGSJ-65 Plastic wire drawing machine production line is special equipment to produce round wire using PE or PP as raw materials.
Replacement of mold or other auxiliary equipment , it also can produce other plastic products. Stability and mechanical properties
of the unit, adopting the latest high quality and efficient screw, a strong extrusion, high output, torque, plasticizing effect is
good; machine with automatic temperature control system, production and product uniformity and stability, and operation procedures
simple. Drawing class can be added or use recycled materials production and processing. according to user needs, with automatic
loading and materials, automatic drying hopper. The unit is a rope, nets and other products ideal for production equipment, with
long hours also produces monofilament yarn machine
LGSJ-65 Plastic wire drawing machine production line is special equipment to produce round wire using PE or PP as raw materials.
Replacement of mold or other auxiliary equipment , it also can produce other plastic products. Stability and mechanical properties
of the unit, adopting the latest high quality and efficient screw, a strong extrusion, high output, torque, plasticizing effect is
good; machine with automatic temperature control system, production and product uniformity and stability, and operation procedures
simple. Drawing class can be added or use recycled materials production and processing. according to user needs, with automatic
loading and materials, automatic drying hopper. The unit is a rope, nets and other products ideal for production equipment, with
long hours also produces monofilament yarn machine
Production name | number | overall dimensions(mm) | notes | Wight (KG) |
extrudor | A set | 2980*880*1750 | 200 Hardened reducer one set Screw set, diameter 80mm, aspect ratio 28:1, materials 38CrMoAl nitrogen treatment Host transmission power 15KW, heating power 16KW, motor adopts frequency control Using quartz tube heating ring, stainless steel spinneret 5, yield 40-60kg / h | 1000 |
First drawing machine | A set | 1300*950*1300 | 7 roller extension, rubber roller 2, the steel roller 5, the electrical power 1.5kw, frequency speed control | 700 |
Heat sink | A set | 3000*300*1300 | Use of electric heating pipe, heating power of 16kw, heat sink length of 3 meters, material stainless steel | 240 |
Second drawing machine | A set | 1600*950*1300 | 7 roller extension, rubber roller 2, the steel roller 5, the electrical power of 5.5kw, frequency speed regulation, the drafting multiple of 5-12 times | 800 |

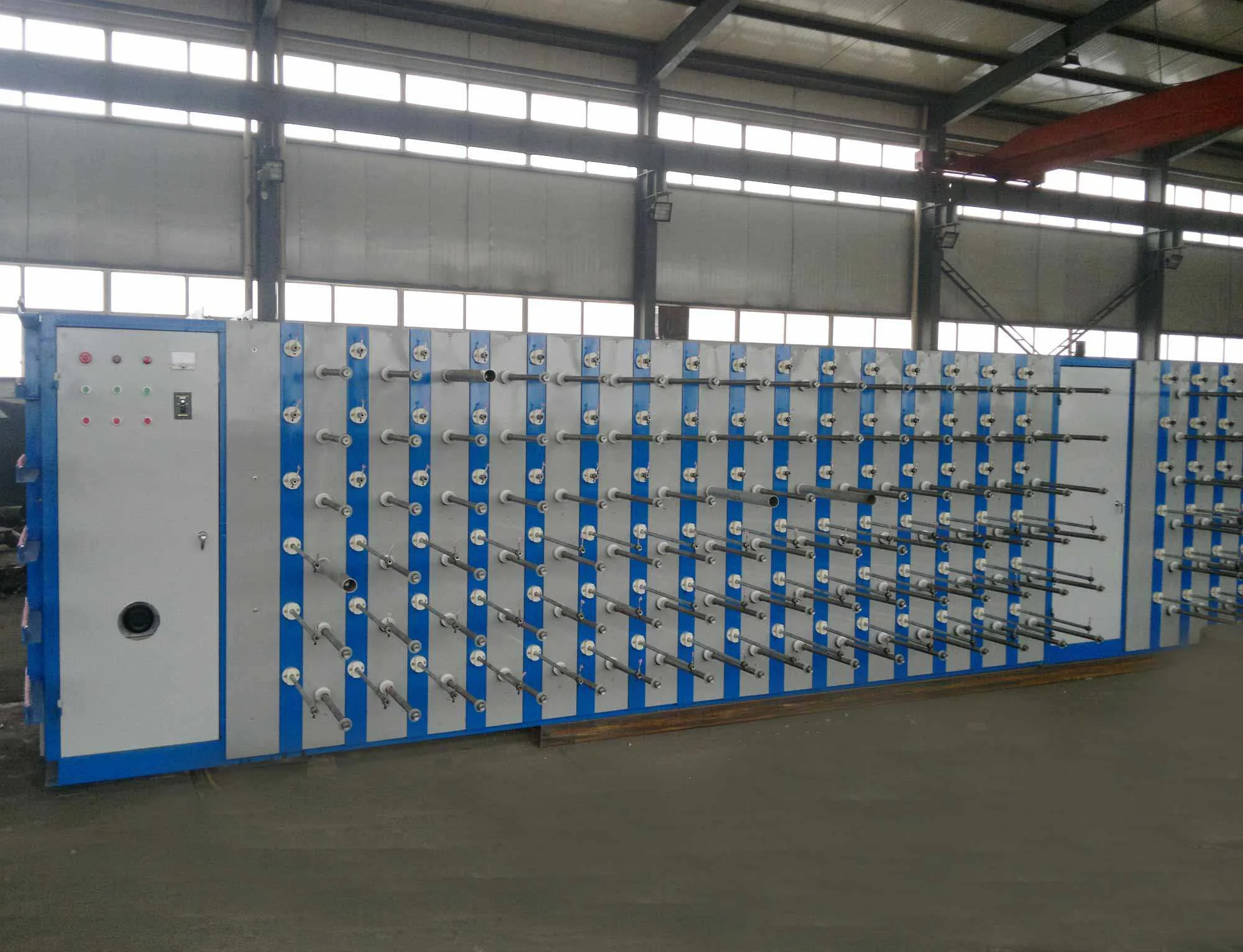

winding | A set | 2800*980*1690 | 6-station winding, motor power 3kw | 500 |
Distribution | A set | 1600*500*800 | And drawing machine supporting | 80 |
Bobbin | 20 Parts | Diameter 250*length 300 | 240 |
Product Description
Specification
item | value |
Application | Wire |
Plastic Processed | PE/PP |
Condition | New |
Screw Design | Single-screw |
Screw Material | 38CrMoAlA |
Screw diameter (mm) | 65 mm |
Screw L/D Ratio | 28:1 |
Screw Speed (rpm) | 70rpm |
Showroom Location | None |
Place of Origin | China |
Shandong | |
Brand Name | Liangong |
Voltage | 380V |
Dimension(L*W*H) | 6m*1.6m*2.5m |
Power (kW) | 48 |
Weight | 3T |
Certification | CE/BV/SGS |
Warranty | 1 Year |
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support | |
Key Selling Points | Competitive Price |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | None |
Applicable Industries | Manufacturing Plant |
Marketing Type | New Product 2020 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
After-sales Service Provided | Engineers available to service machinery overseas |
Name | Plastic Wire Extrusion Machine Line |
Raw material | PP PE Granules |
Usage | Rope Making |
Product Type | Monofilament |
Processing Type | Exturding Machine |
Product | Flat Monofilament Yarn |
Material | PP PE LDPE HDPE |
Color | Customer Choice |
Inverter | ABB Inverter |
Company Profile
Established in 1992, Laizhou Liangong Machinery Co., Ltd. (former Laizhou city Shahe plastic machinery factory) is a professional plastic machine manufacturer. Located in Shahe Town of Laizhou City, enjoying convenient transportation and graceful environment, near Laizhou Bay at the junction of Yantai, Weifang and Qingdao.
Our company has precise machining capacity and superior technicians with many years of experience in design and manufacture, advanced production equipment, perfect management system. From the beginning, we keep: market is the guider, technology is the supporter, make excellence, seek specialty. At present our company is the leading enterprise in domestic plastic machinery field, specialized in manufacturing and selling plastic machinery: plastic recycling granulator series, plastic packing machinery, plastic pipe making machinery, plastic foaming machinery, plastic board, strip, sheet and mat etc series plastic machinery and auxiliary equipments etc. which features advanced technique, high degree of automation, high efficiency, energy-saving and so on. Now our products have been sold to everywhere in domestic, and also exported to Europe, Africa, Southeast Asia and Taiwan etc. more than 50 countries and regions, won the client's trust and support from domestic and overseas.
We look forward to establish business relationship with you! We warmly welcome you to visit our factory and cooperate with us!
Our company has precise machining capacity and superior technicians with many years of experience in design and manufacture, advanced production equipment, perfect management system. From the beginning, we keep: market is the guider, technology is the supporter, make excellence, seek specialty. At present our company is the leading enterprise in domestic plastic machinery field, specialized in manufacturing and selling plastic machinery: plastic recycling granulator series, plastic packing machinery, plastic pipe making machinery, plastic foaming machinery, plastic board, strip, sheet and mat etc series plastic machinery and auxiliary equipments etc. which features advanced technique, high degree of automation, high efficiency, energy-saving and so on. Now our products have been sold to everywhere in domestic, and also exported to Europe, Africa, Southeast Asia and Taiwan etc. more than 50 countries and regions, won the client's trust and support from domestic and overseas.
We look forward to establish business relationship with you! We warmly welcome you to visit our factory and cooperate with us!
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(50.00%),Africa(8.00%),Eastern Europe(8.00%),Mid East(6.00%),Eastern Asia(6.00%),Southeast Asia(6.00%),South America(3.00%),South Asia(3.00%),Western Europe(3.00%),Oceania(3.00%),Northern Europe(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic Machinery (Plastic Recycling Granulator/Plastic Packaging Machine/Plastic Pipe Making Machine/Plastic Foaming Machinery/Plastic Rope Machinery/Plastic Mat Machinery),Plastic Products,Chemical machinery,Construction machinery,Technology Import and Export
4. why should you buy from us not from other suppliers?
Laizhou Liangong Machinery Co.,Ltd. is professional plastic machine manufacturer. Our factory was founded in 1992, had Twenty years plastic machine manufacturing and exporting experiences. The products are well sold to many regions throughout the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,JPY,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese,German,Arabic,French,Russian,Korean
We are based in Shandong, China, start from 2009,sell to Domestic Market(50.00%),Africa(8.00%),Eastern Europe(8.00%),Mid East(6.00%),Eastern Asia(6.00%),Southeast Asia(6.00%),South America(3.00%),South Asia(3.00%),Western Europe(3.00%),Oceania(3.00%),Northern Europe(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic Machinery (Plastic Recycling Granulator/Plastic Packaging Machine/Plastic Pipe Making Machine/Plastic Foaming Machinery/Plastic Rope Machinery/Plastic Mat Machinery),Plastic Products,Chemical machinery,Construction machinery,Technology Import and Export
4. why should you buy from us not from other suppliers?
Laizhou Liangong Machinery Co.,Ltd. is professional plastic machine manufacturer. Our factory was founded in 1992, had Twenty years plastic machine manufacturing and exporting experiences. The products are well sold to many regions throughout the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,JPY,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese,German,Arabic,French,Russian,Korean
