AdBlue dispensing equipment

Product Overview

Description

AdBlue dispensing equipment





Introduction

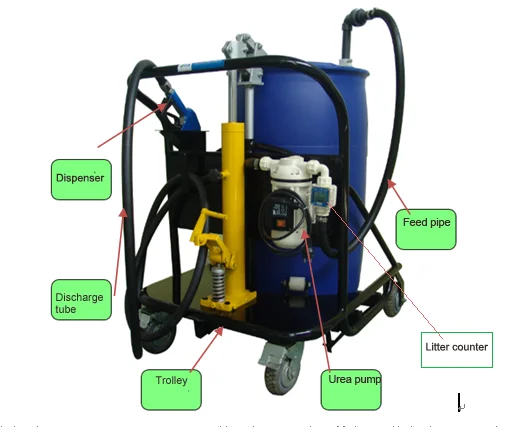

200L  filling equipment is designed for small and medium users with good mobility and convenience.



Configuration

Self-priming pump (316 stainless steel), filling gun (316L stainless steel), PTEF electromagnetic flowmeters, PVC connection pipeline.



Specifications

Horizontal multi-stage centrifugal pump: LOWARA 4HMS7 / A

Rated Flow: 40L-120L/min



Work Environment:

Relative Humidity: 20% ~ 95%

Maximum temperature: 110 °C

Minimum Temperature: -10 °C

Noise at Work (pump): max 73dB

Power Supply: Single phase 220V 50Hz 2850rpm

Power :0.3-0 .9 kw

Maximum pressure: 3.5bar



Filling gun

 Diameter: 19mm

Maximum flow rate: 60L/min

Material: 316L stainless steel



Connecting pipeline

use of rigid PVC pipe, flexible PVC hose used to connect.

2-4m hose length

Diameter: 19mm
