manual paint dispensing machine JY 20B1

Product Overview

Description

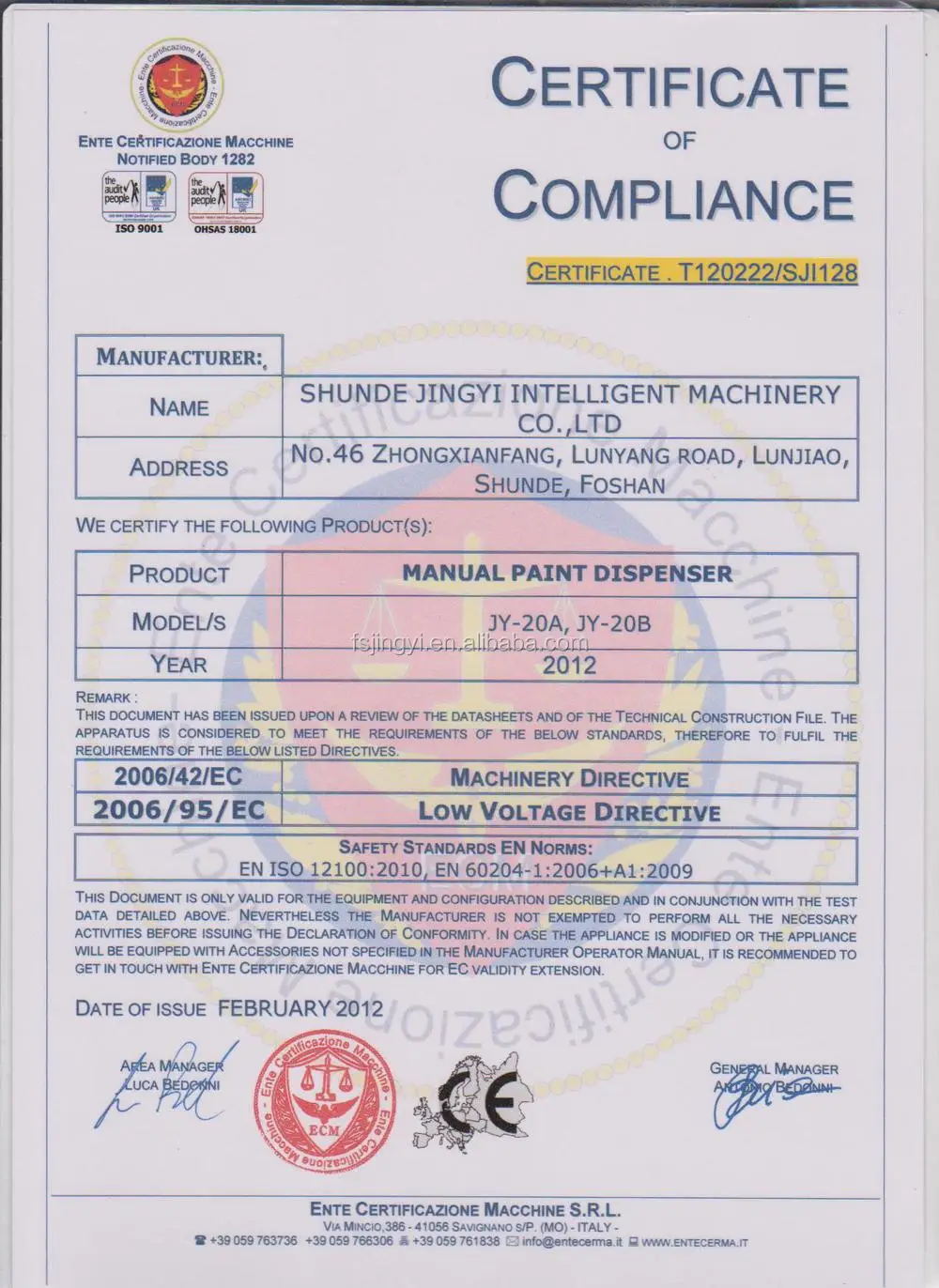

We are the manufacturer for the paint shakers for over 15 years now, have the CE certificate for the machines.



We now looking for agents for the machines, if you are interesting, please contact us.



Below is the JY-20B dispenser information:





Technical data:

1) Application: Water or oil colorant (1 to 24 types)

2) Canister: 1.75L or 2.3L OPP plastic canister (Canisters color can be white or black)

3) Max discharge per time:2 fluid ounce

4) Accuracy: 1/192Y or 1/384Y or milliliters or others

5) Working power: 220V; Frequency: 50/60 HZ; Power supply: 40W

6) Net weight: 80KG; Gross weight: 120KG

7) Machine size: 1350 (H) X 860 (W) X 860 (D) mm

8) Packing size: 1170(H) X 500 (W) X 570 (D) mm

470(H) X 990 (W) X 990 (D) mm



Features:

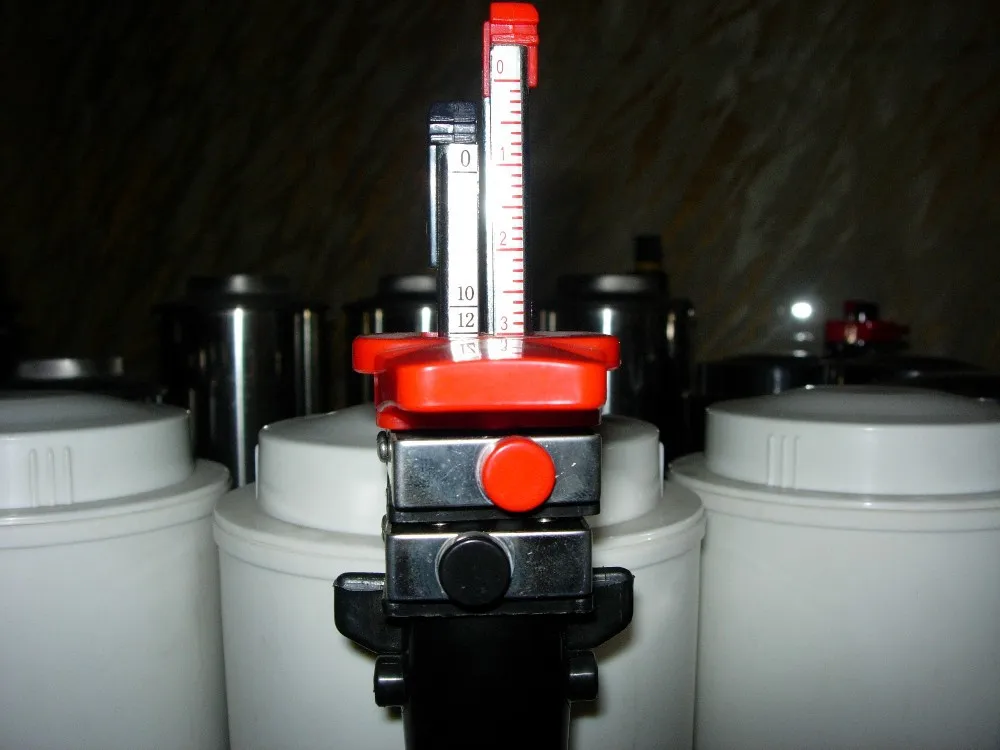

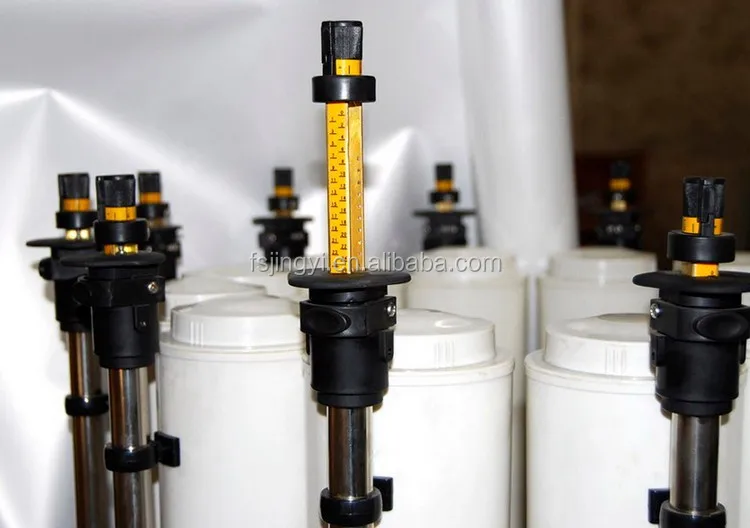

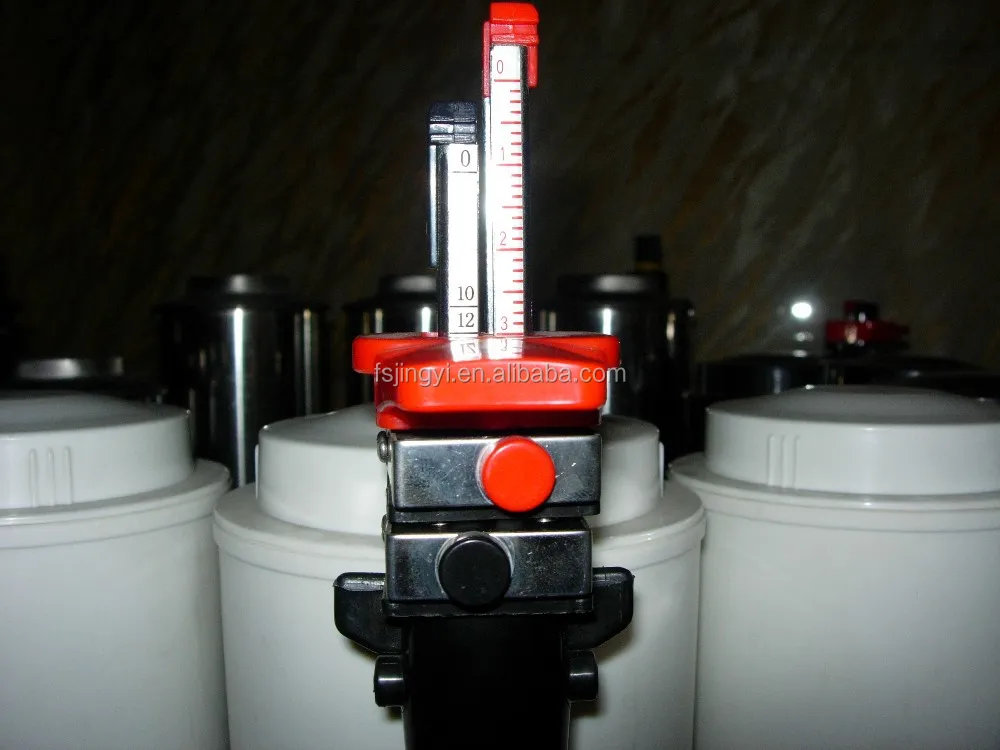

1) Double-pump and double-gauge ensures stability of accuracy and repeatability.



2) Automatic blending of rotating blades ensures equal distribution of colorant and has no deposition.

3) Colorant tray that can automatically rotate fix brings more convenience for operation.

4) Manual control interior case support may be moved up and down easily, which provides enough space for paint dispensing.

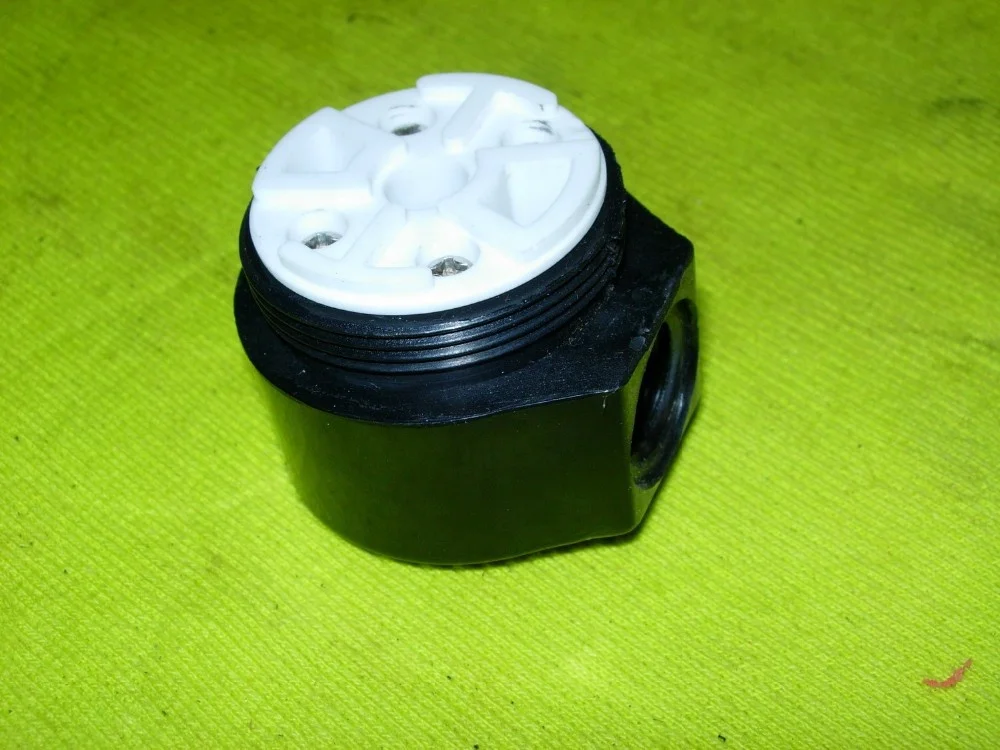

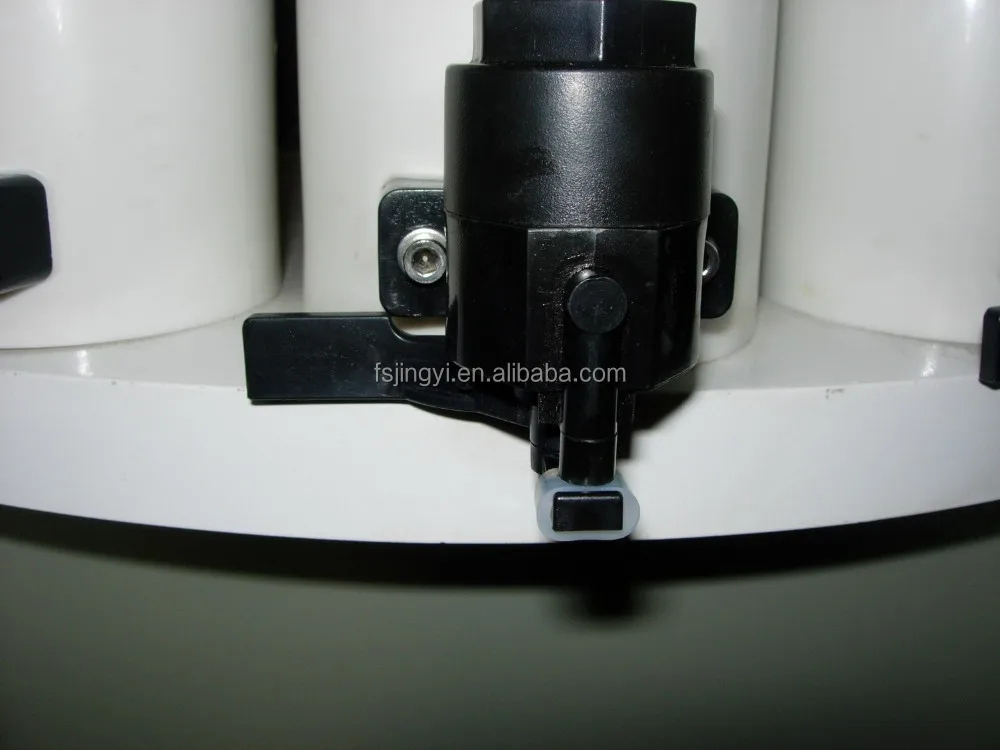

CERAMIC VALVE:
