Diamond tangential fickert grinding abrasive blocks

Product Overview

Description

Products Description:

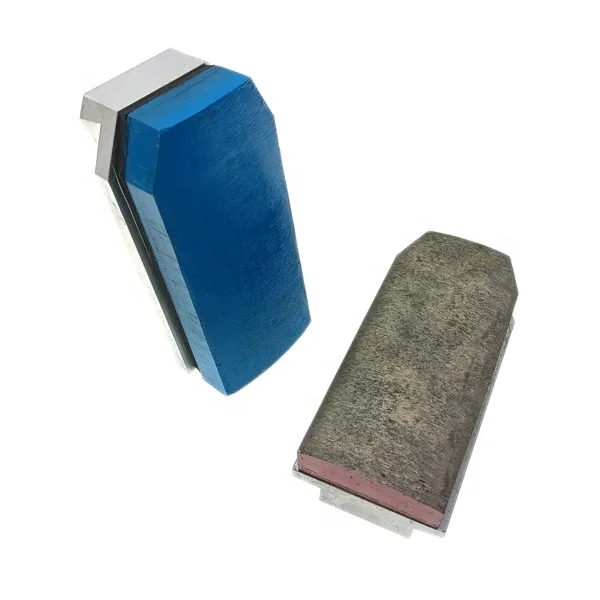

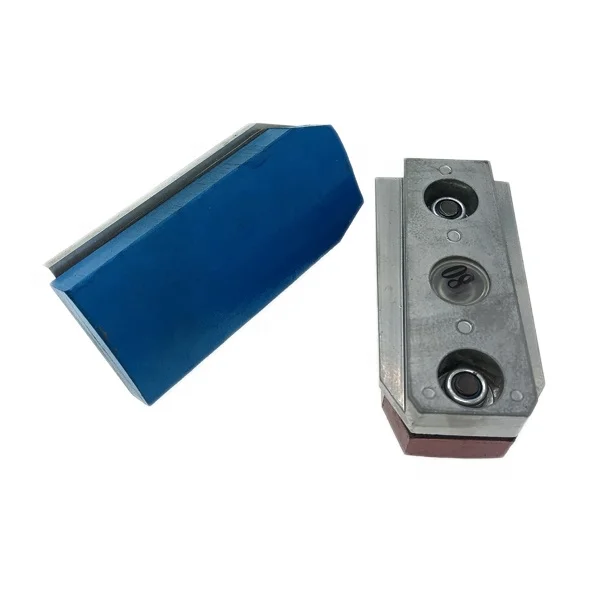

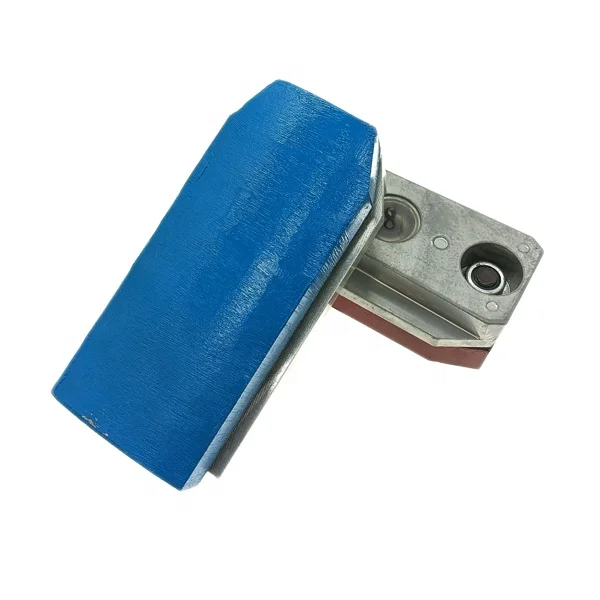

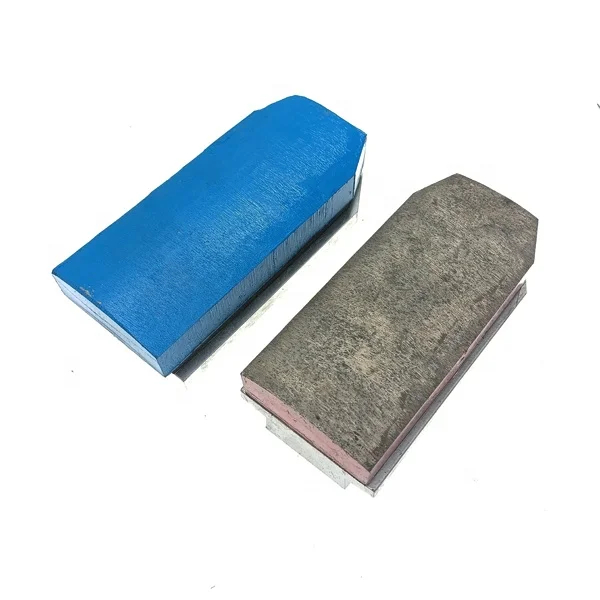

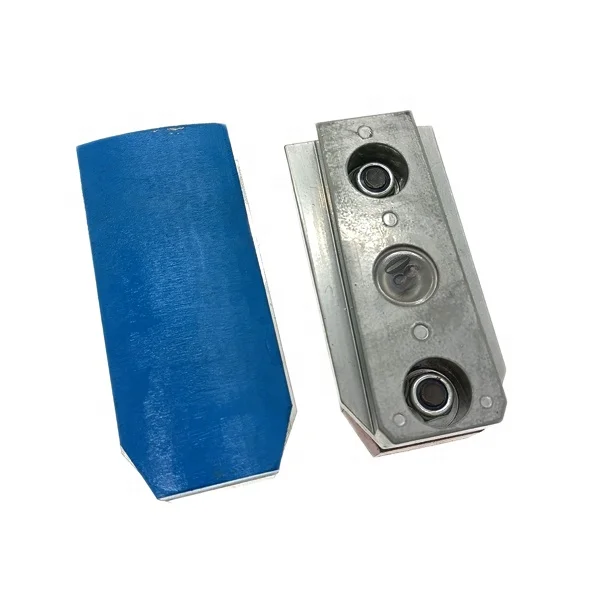

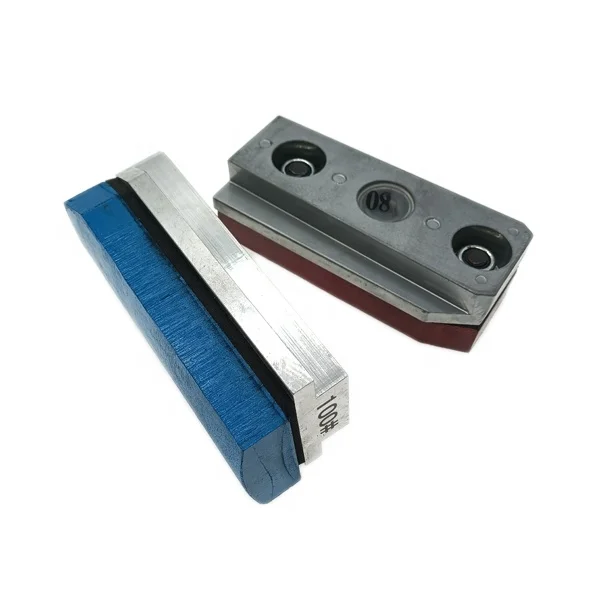

Product Name: Diamond tangential fickert grinding abrasive blocks



Diamond grinding brick adopts diamond chips as grinding granular that was sinterised with the bond made of different metal or metal compound powder by high termperature.



Advantage

Its structure are reasonable that the grinding granulars and the bond are combined firmly and not easy to fall off; long working life;

it is applicable in various hard materils, like marble, granite and Terrazzo etc.;

It improves processing precision, especially while it is applied in Continuous Automatic Granite Polishing Machine, with features of high sharpness, high Anti-abrasive and High Cost- efficiency ratio.





1.Ladder Shape Grinding Brick:140*(13+2) regard as 140*15
INDEX	WATER	GRIT NUMBER	COLOR	BOND TYPE	LONGEVITY m2
1	lots	30/40		metal	9000-10000
2		40/50			10000-13000
3		50/60			13000-17000
4		70/80			17000-22000
5		80/100			24000-29000
6		100/120			32000-37000
7		140/200			37000-40000
8		300		Resin+Grainding granular	20000
9		400		Resin+Grainding granular	22000
10	little	500		resin	25000
11	less	800			27000
12	less	1500			30000
13	less	3000			20000
14	wet	Buff			20000
15		Buff			20000
16		Buff			20000





Detailed Pictures and Similar Products Styles









Quality Control



Factory





Package



Fair Experience





About us

Xiamen Diamond Tools Co., Ltd, is located in Fujian China more than 10 years' history. Our main products are various of specification diamond saw blades, flexible polishing pads, diamond grinding wheels, diamond segments, diamond wire and abrasives etc. At present, our products are mainly exported to USA, Canada, Germany, Italy, Portugal, Poland, Russia, Brazil, Chile, Australia, UAE, South Africa,India, Pakistan ,Israel, etc.
