Float Type Continuous fuel level sender

Product Overview

Description

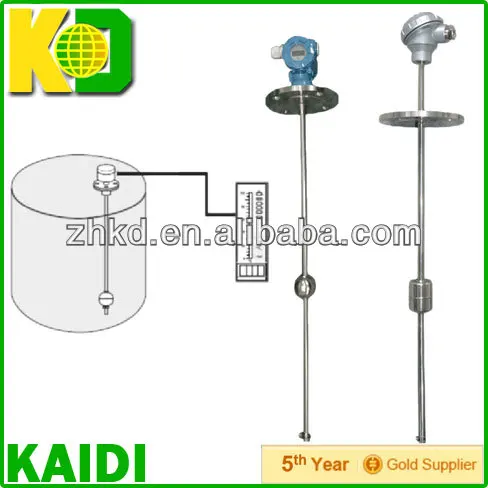

Float Type Continuous fuel level sender



Continuous Float Level Transmitter uses the magnetic inside of the floating ball following as the change of liquid level to change divider circuit composed by the resistor inside of the rod and the magnetic reed switch, thus converted into divider signal which can be turned by transmitter into standard industrial signal of 4~20mA so as to test the liquid level.



The smaller the clearance of the magnetic reed switch is, the higher the accuracy is. This level indicator can also be used for long-distance indication if combined with other secondary instrument. It is a reliable indicator with simple principle. Continuous Float Level Transmitter is widely used in level control and alarm of all kinds of industry such as electronic, electric power, chemical, water treatment, water supply and drainage, dyeing, machinery etc.



Contact capacity	AC220V/1A; DC24V/0.5A
Working pressure	≤ 10Mpa
Share float	0.6
Output signal	4 ~ 20mA
Operating temperature	-20 ~ 125 °C
Protection class	IP65
Float material	SUS304/SUS316L
Body Material	SUS304/SUS316L

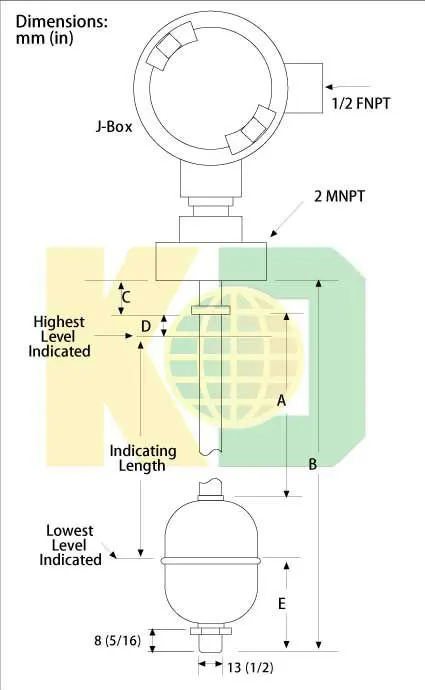

Connection	Flange connection (can be customized)
