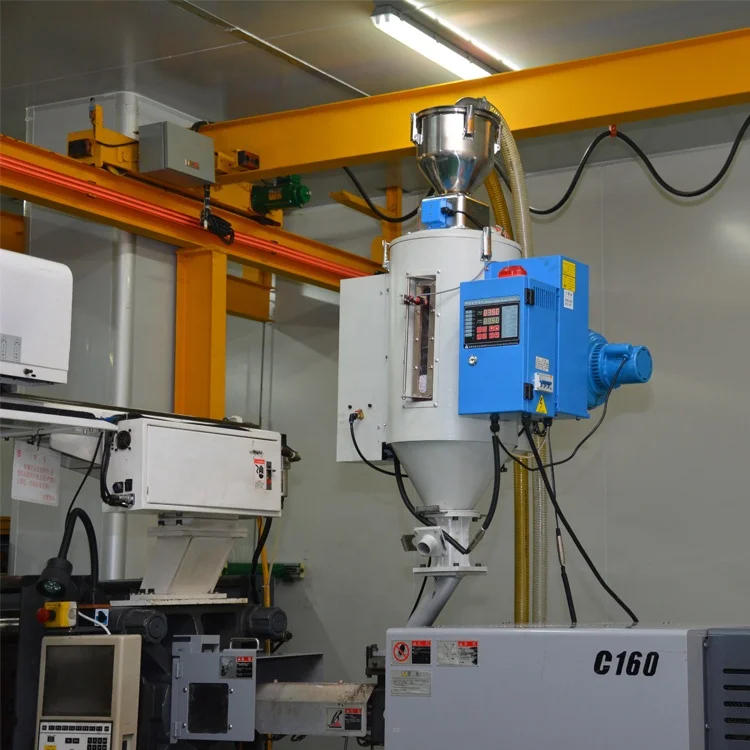

hot air hopper dryer for plastic material

Product Overview

Description

1.Application scope

GHD-U series hopper dryers adopt hot air down-blowing design and use stainless steel made material hopper to avoid contamination. With this design, they are also ideally suitable for use with honeycomb dehumidifiers to dry engineering plastics. There are 18 models available, ranging from 20 to 4500 liters.

2. Features

Standard configuration



1)  The novel appearance, bright.

2)  Double heat preservation hopper and unique design of downblow air pipe can spread hot air

evenly, keeping plastics dry and temperature, stable to raise drying efficiency.

3) Digital P.I.D. temperature control.

4) Overheat protection to ensure reliable operation.

5) Models GHD-80U and above have material clearance door to make the clean more convenient and  effective.

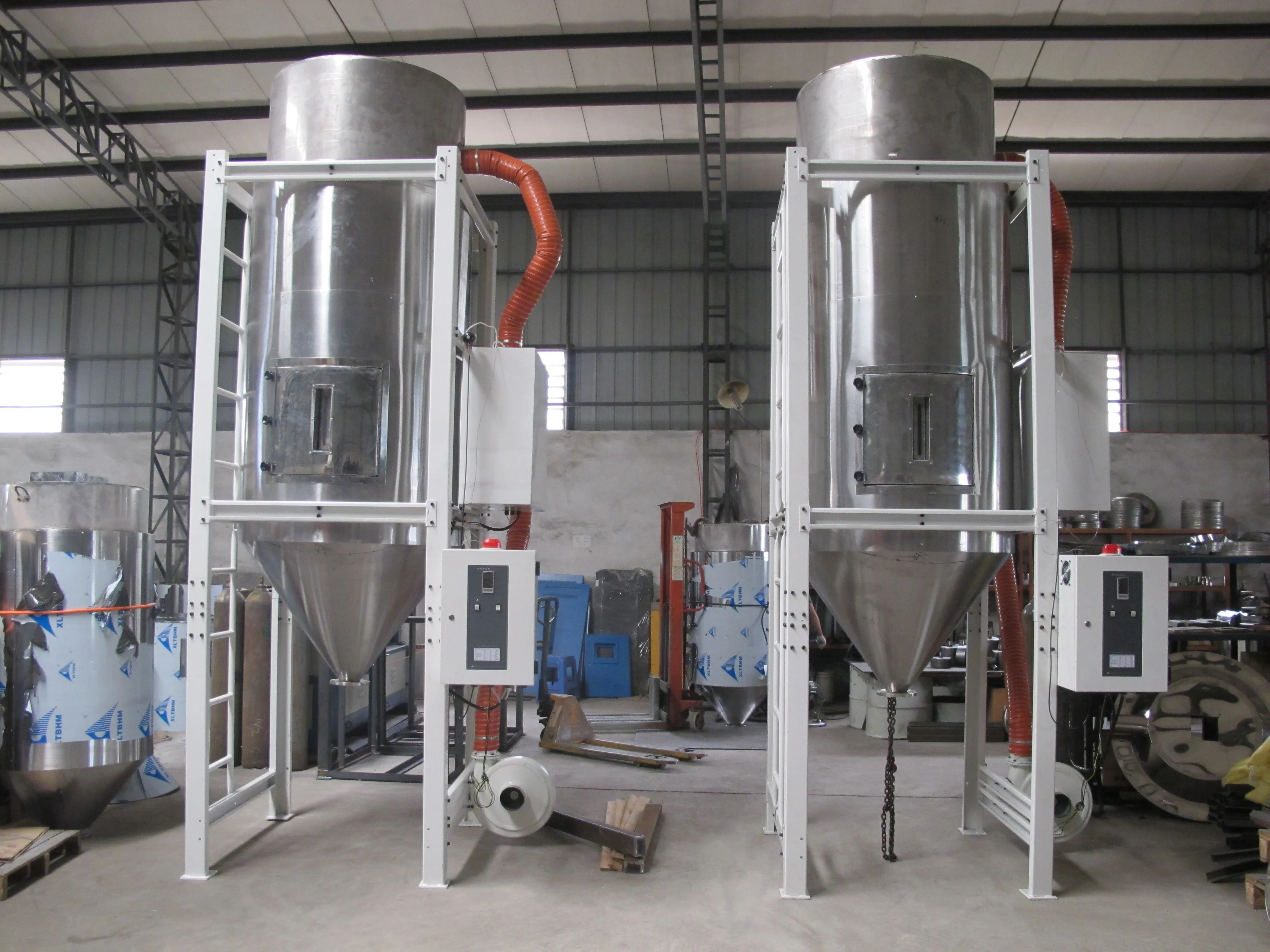

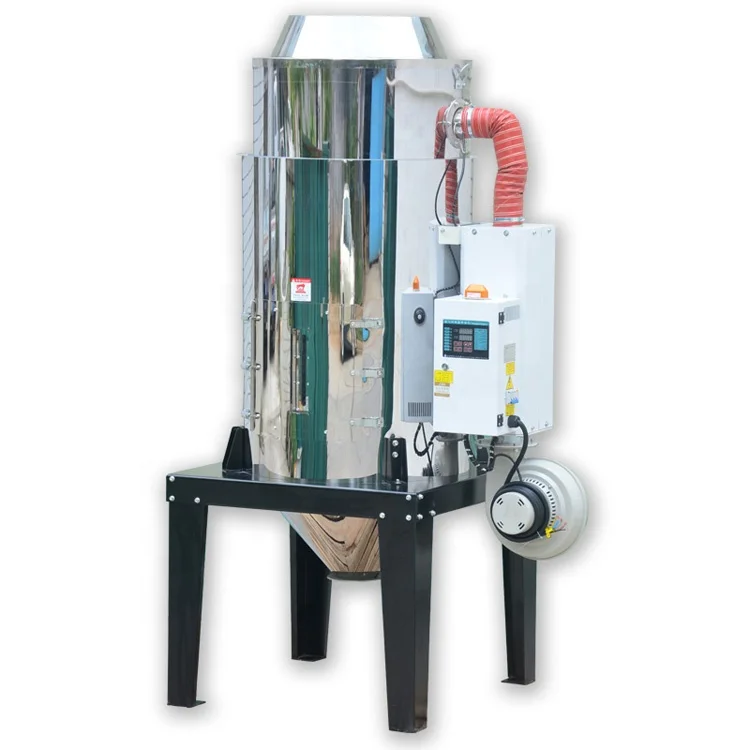

6) Floor stand is standard equipment for GHD-1500U and models above.

Accessory option



1) Cyclone dust separator, magnetic base and blower inlet filter are optional.

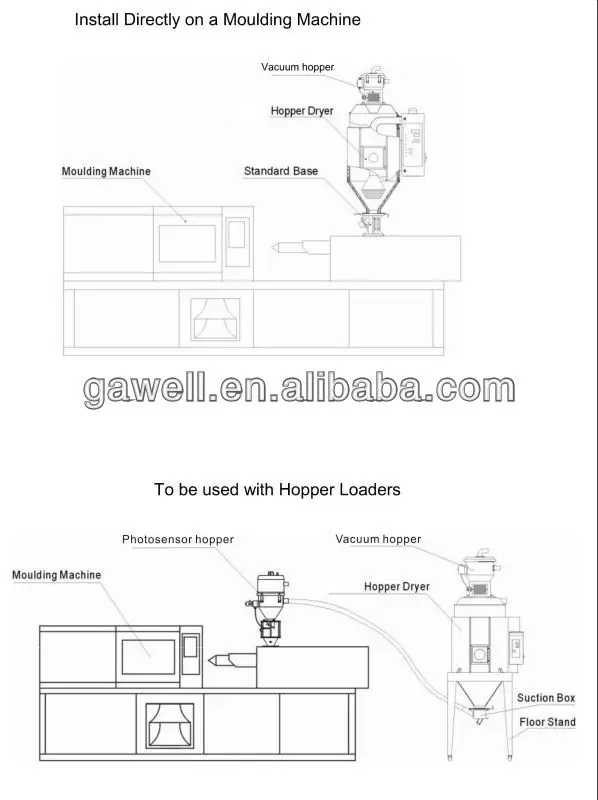

2) Hot air recycler, suction box, hopper magnetic, N type floor stand and storage hopper are  optional.

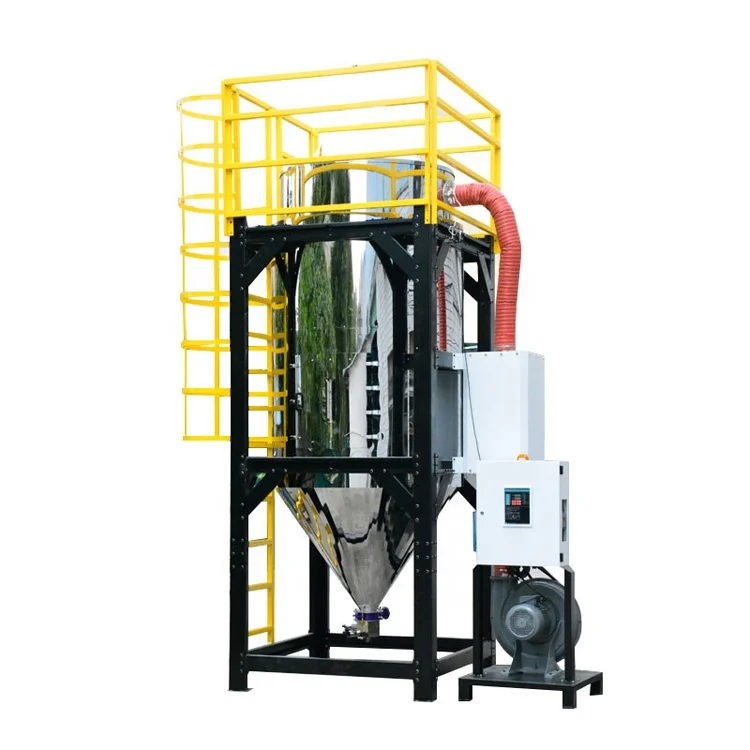

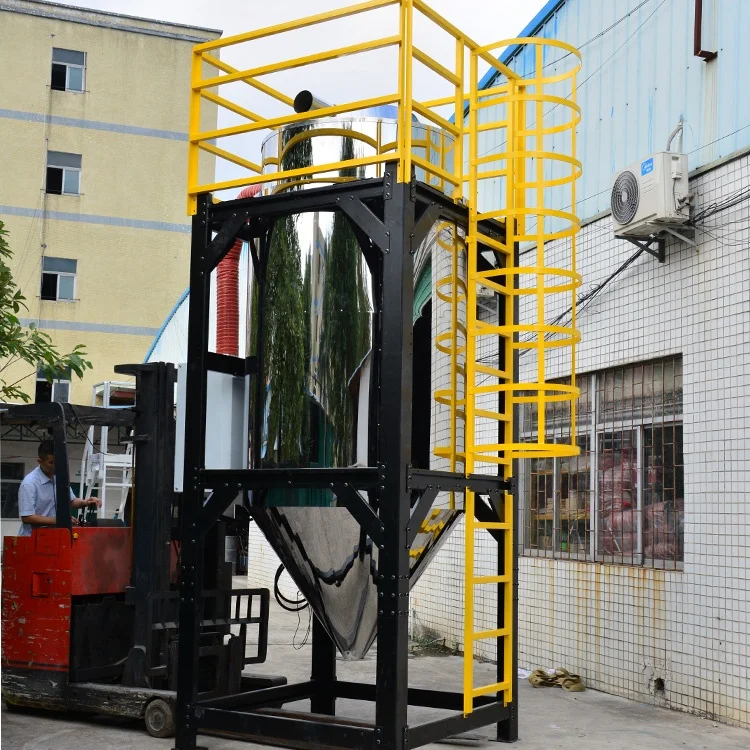

3) Safety protective ladder is optional for GHD-1500U and models above.

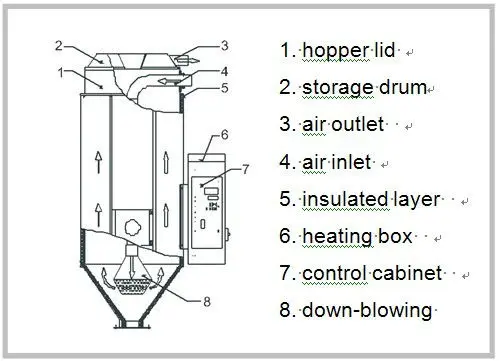

3. Working Principle

In the drying process, hot air with constant temperature is blowed by a blower into a two-layer insulated hopper to dry the materials. Moisture will be separated out and taken away by hot air, thus to gain a satisfied drying effect.

4. Specifications



Model	Hopper Capacity(L)	Heater Power(kw)	Blower (kw)	Dimensions(mm) (H×W×D)	Floor Stand(mm) (H×W×D)	Whole Height (mm) H2	Air Inlet Pipe Dia.(inch)	Air Outlet Pipe Dia.(inch)	Weight (kg)
GHD-20U	20	2.2	0.05	730×575×325	790×450×660	1260	2	1.5	40
GHD-40U	40	3	0.12	760×640×390	790×450×660	1295			45
GHD-80U	80	3.9	0.12	940×722×475	840×552×722	1465	2.5	2	50
GHD-120U	120	3.9	0.12	1210×722×475	840×552×722	1735			60
GHD-160U	160	6	0.12	1225×822×575	920×652×795	1825	3	2.5	90
GHD-230U	230	6	0.12	1505×822×575	920×652×795	2105			100
GHD-300U	300	12	0.18	1450×945×695	970×790×930	2085			130
GHD-450U	450	12	0.18	1850×945×695	970×790×930	2435			160
GHD-600U	600	18	0.55	1820×1170×915	1130×1000×1200	2470	4	3	200
GHD-750U	750	18	0.55	2100×1170×915	1130×1000×1200	2780			220
GHD-900U	900	18	0.55	2070×1340×1050	1320×1200×1200	2730	4	4	410
GHD-1200U	1200	24	1.1	2500×1340×1050	1320×1200×1200	3160			560
GHD1500U	1500	32	3	2950×1542×1250	1400×1500×1500	3470	5	5	685
GHD-2000U	2000	32	3	3350×1542×1250	1400×1500×1500	3870			770
GHD-2500U	2500	58	5.5	3510×1770×1400	1500×1640×1640	4050	6	6	800
GHD-3000U	3000	58	5.5	3910×1770×1400	1500×1640×1640	4400			900
GHD-3500U	3500	64	7.5	4310×1770×1400	1500×1640×1640	4800			1000
GHD-4000U	4000	64	7.5	4050×1980×1600	1650×1900×1900	4550			1160
GHD-4500U	4500	80	11	4350×1980×1600	1650×1900×1900	4850			1260
