High Specific Surface Ceramic Catalyst heat exchanger honeycomb ceramics burner Substrate for Car Exhaust Gas
- Category: >>>
- Supplier: Pingxiangzhongying Packing Co. Ltd.
Share on (556453384):
Product Overview
Description
High Specific Surface Ceramic Catalyst Substrate for Car Exhaust Gas
1.The Description of Product
| Product | Ceramic Honeycomb, Ceramic Substrate,Ceramic Catalyst Substrate |
| Type | Ceramic Honeycomb |
| Available Shape | Round oval racetrack abnormity |
| Metal Coating acceptable | Yes |
| MOQ | 50pcs |
| Application | automobile exhaust syestem, filter |
| Cells | 100,200,300,400,600 CPSI |
| Diameter | 10mm-330mm |
| Material | Cordierite, Alumina |
- Physical and Chemical Charactor
Ceramic Honeycomb Category Measurement Parameter Cordierite % ≥95 Thermal expansion Coefficient (RT-800℃) m/℃ ≤1.3×10-6 Thermal shock resistance(RT-550℃) Cycle times ≥3 Softening temperature ℃ ≥1360 Compressive strength Parallel direction MPa ≥10 Vertical direction MPa ≥3 Mesh Mesh 100-600 Water absorption rate % 20-28 Wall thickness mm 0.13-0.23 Tolerance range mm ≤0.8
- Available Size
| Channel density | Shape | Dimensin (mm) |
| 400cells/square inch2 | Round | Φ150 x100 |
| Φ144 x152.4 | ||
| Φ118 x152.4 | ||
| Φ115.4 x152.4 | ||
| Φ106 x100.4 | ||
| Φ103x100 | ||
| Φ101.6x152.4 | ||
| Φ100x100 | ||
| Φ93 x152.4 | ||
| Φ83 x152.4 | ||
| Φ80x100 | ||
| Φ76x50 | ||
| Φ41x25 | ||
| Racetrack shape(ellipse) | Φ169 X 85.7 x115 | |
| Φ169 X 80.8x115 | ||
| Φ148 X 84x152.4 | ||
| Φ144.8 X 81.3 x152.4 | ||
| Φ127 X 63.5x152.4 | ||
| Φ93 X 61x90 | ||
| Φ120 .6X 80 x152.4 | ||
| Φ143 X 98x152.4 | ||
| Φ147 X 95x152.4 | ||
| Φ177.8 X114.3x170 | ||
| Special shape | 144x84x75 | |
| 114x105x115 | ||
| 120.2x108.2x75 | ||
| 112.2x92x115 | ||
| 119.5x99.5x115 | ||
| 122.3x104.4x80 |

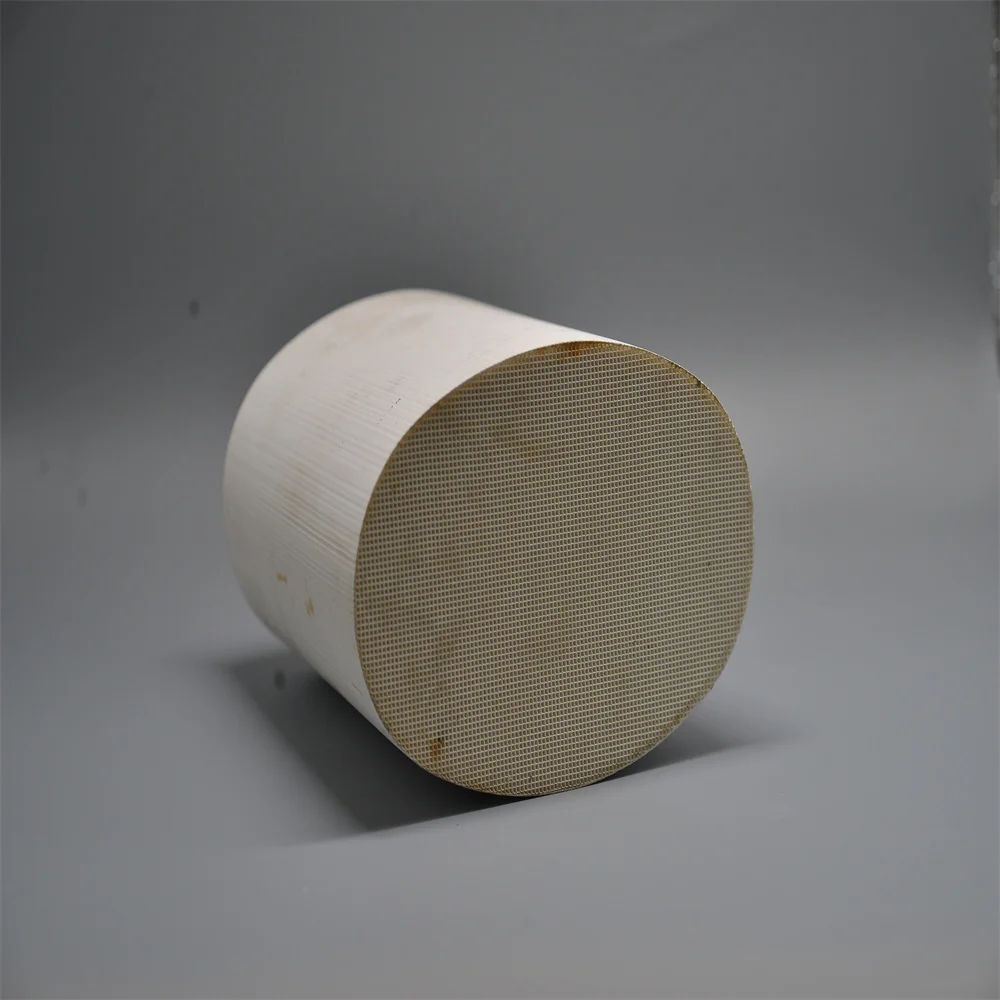

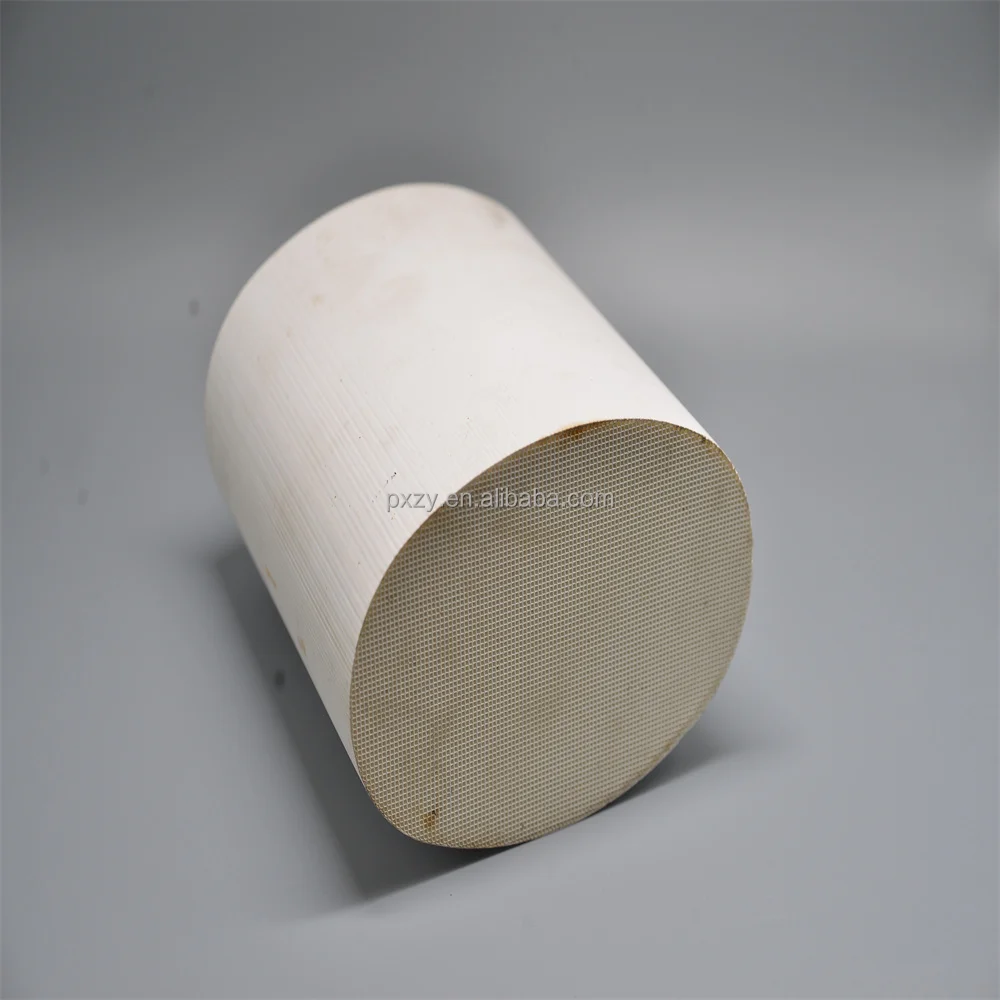

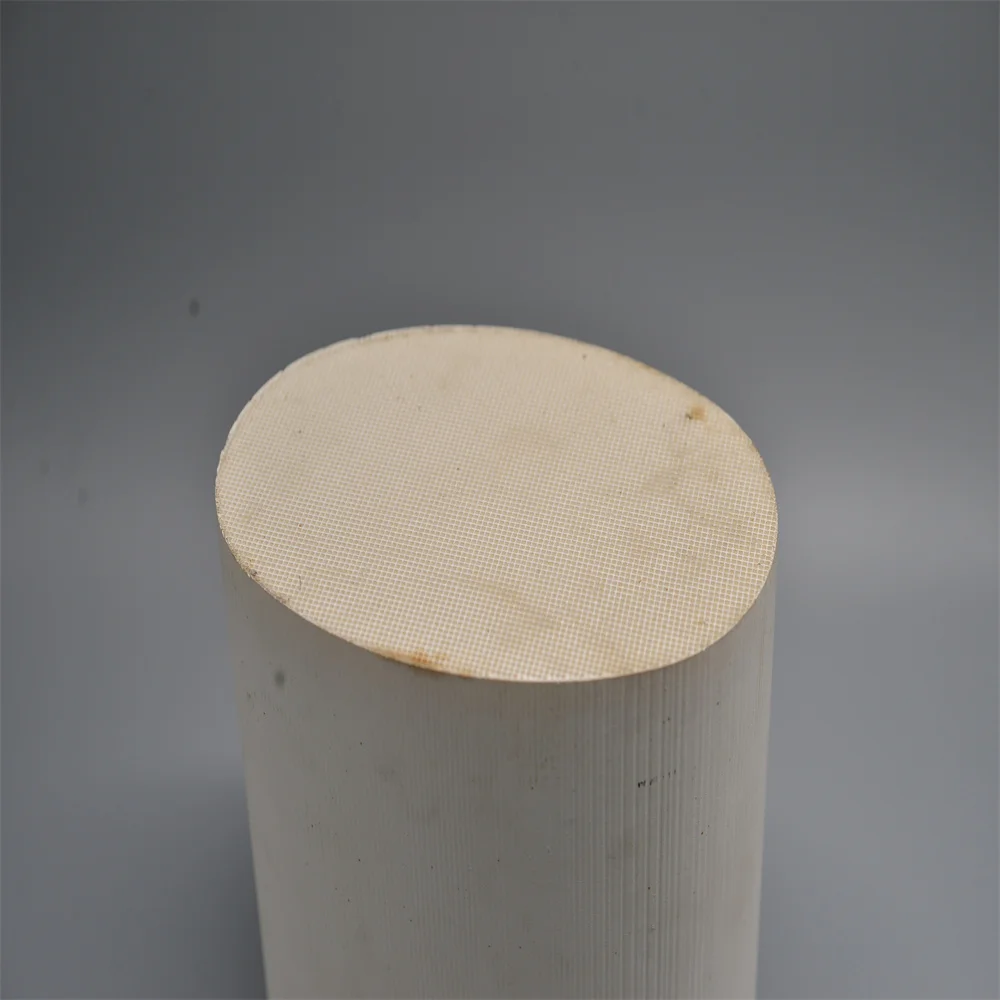

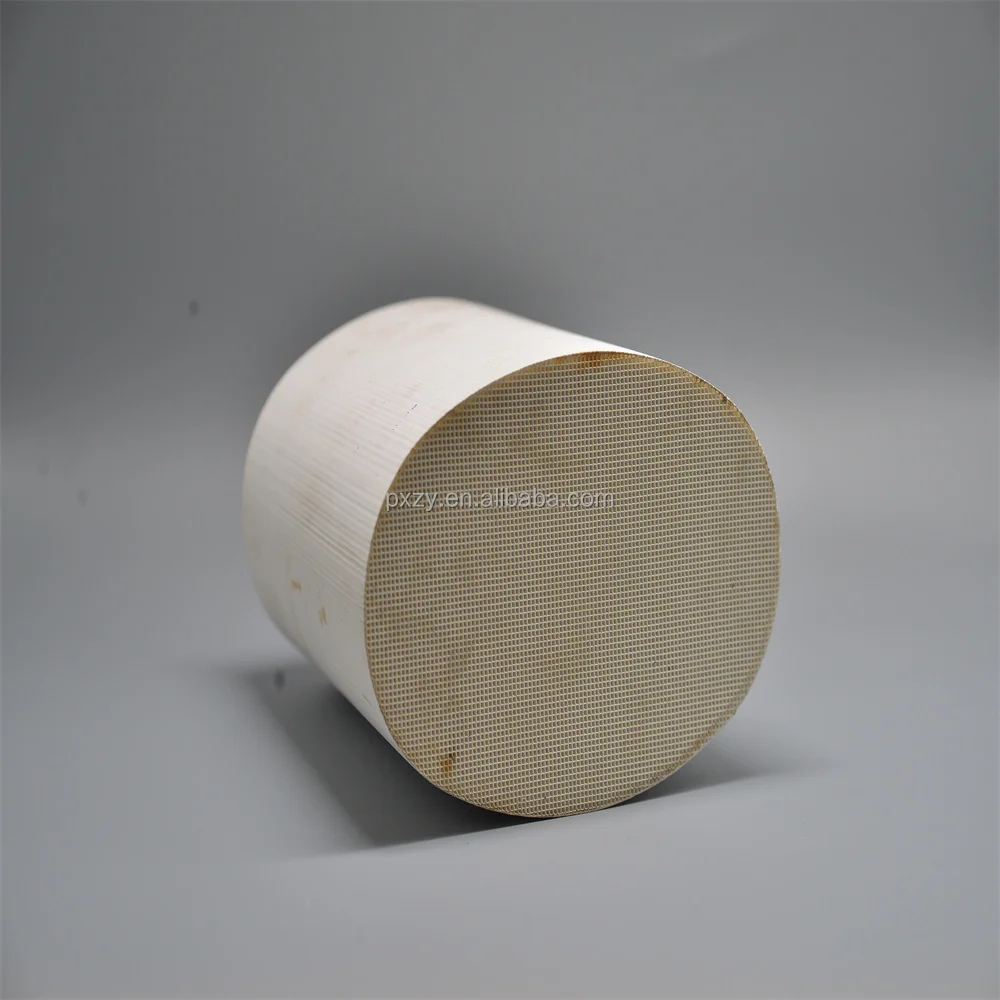

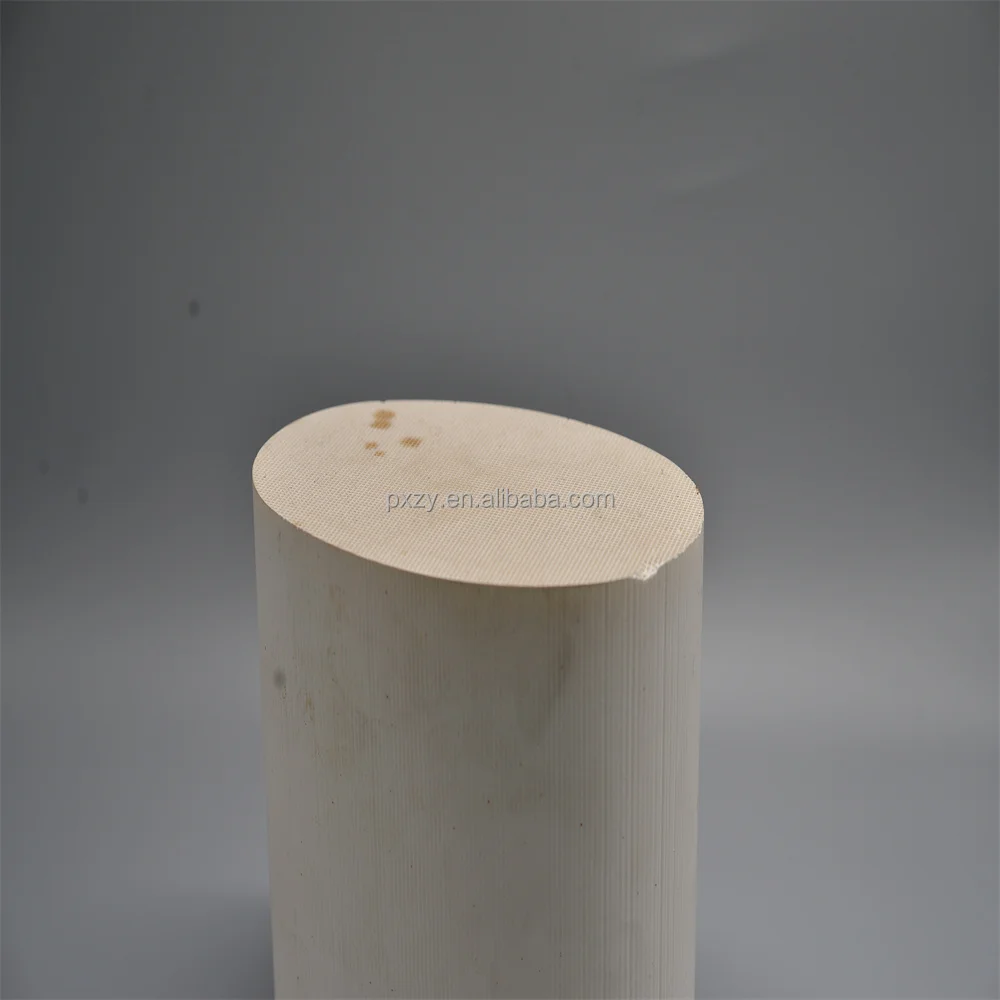

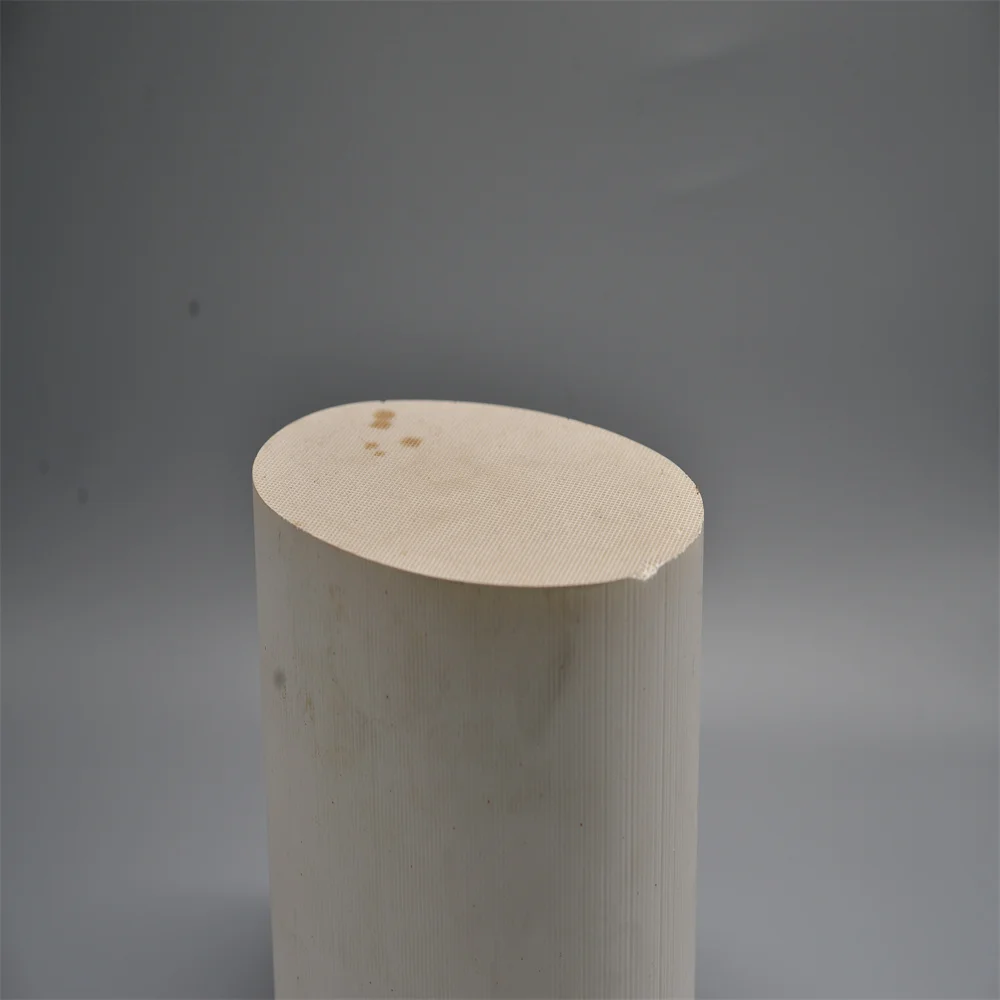

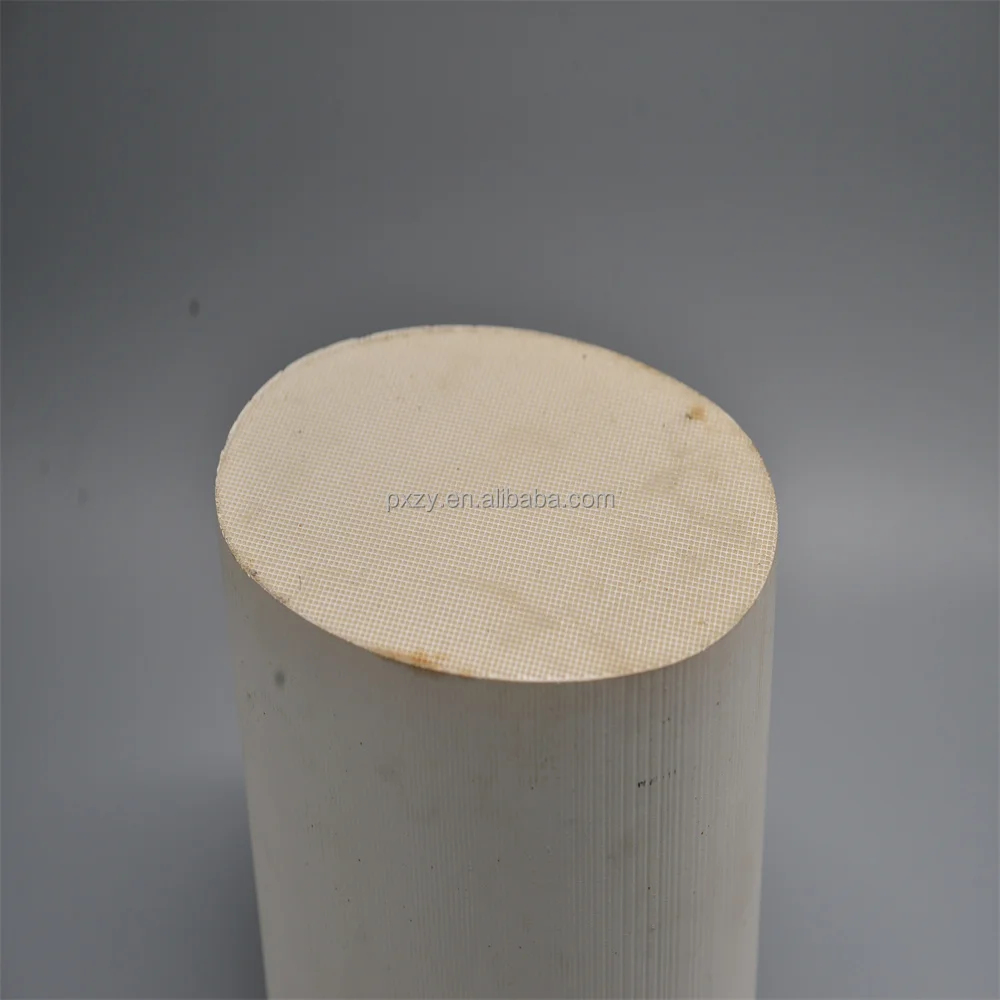

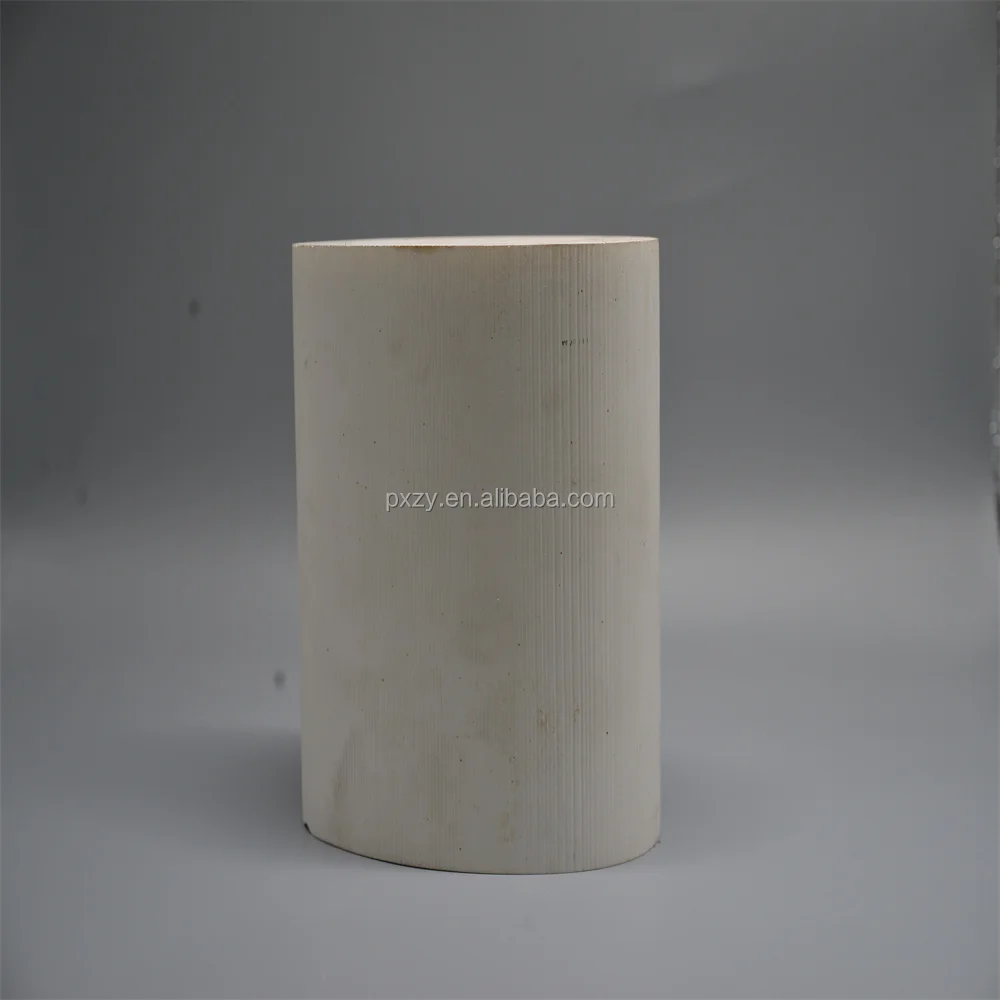

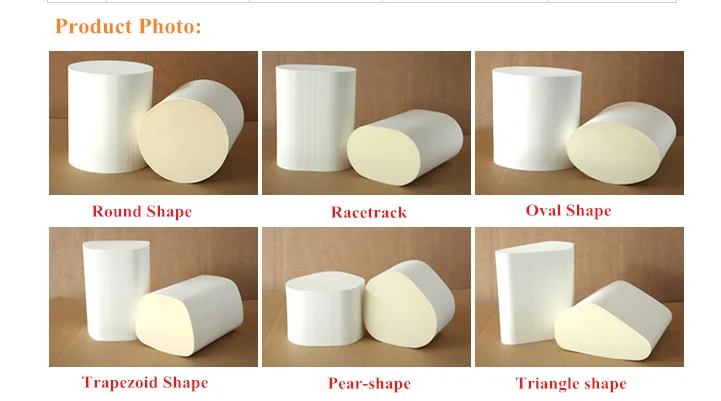

2.The Picture of Product
