single color plastic volumetric doser
- Category: >>>
- Supplier: Guangdong Gainwal Automation Technology Co. Ltd.
Share on (556923813):
Product Overview
Description

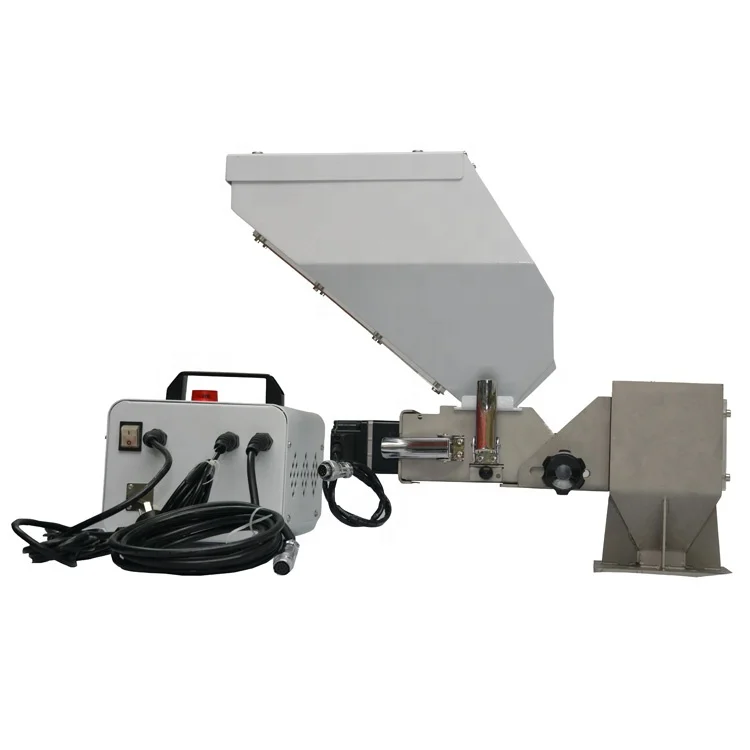

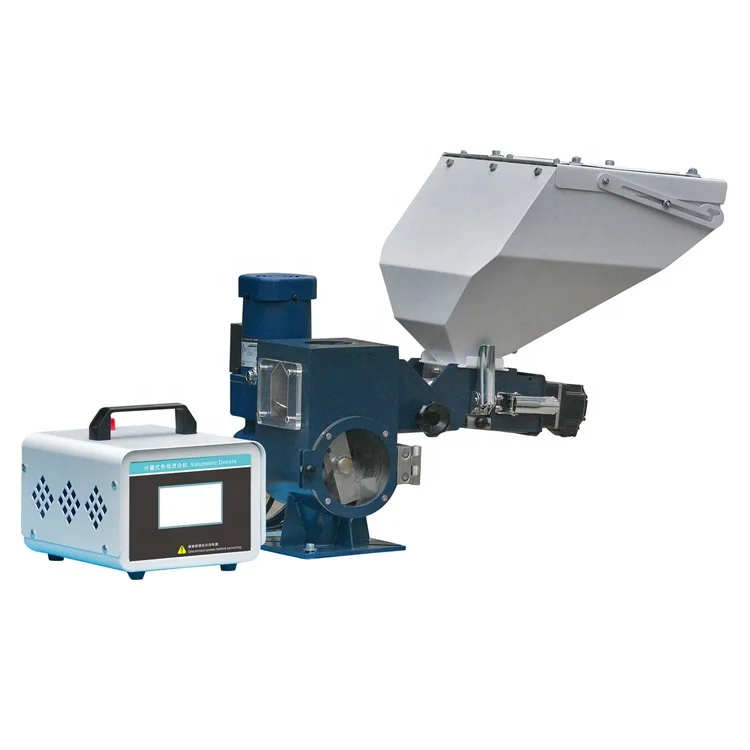

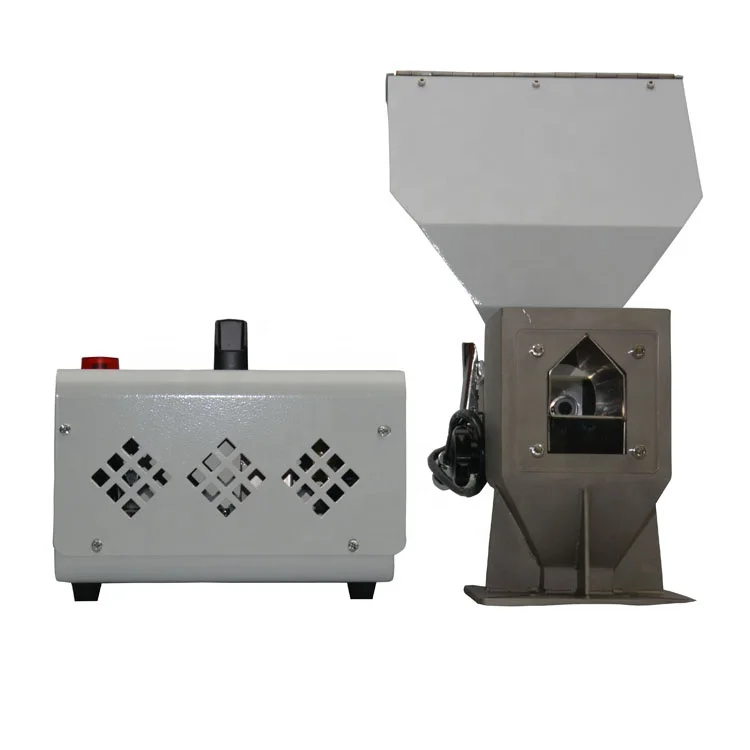

Plastic volumetric dosers
1) Quality Volumetric Dosers.
2) Compact and accurate,Digital display,Drain cover.
3) On time Delivery.
4) Reasonable Price.
Features
•Microprocessor controlled LED indicator for operating status and fault.
•Digital display of set point of speed and time.
•Quick openable latches for motor and screw removal.
•Drain cover for quick batch change and clean out.
•Sight glass to check on material level.
•Compact and accurate DC geared motor
Model | Single color unit | Double color unit | |||||||
GCM30-16 | GCM30-14 | GCM30-12 | GCM75-16 | GCM75-14 | GCM75-12 | ||||
Output Capacity(kg/hr) | 1.1~38 | 0.6~20 | 0.3~10 | 0.5~17 | 0.2~8 | 0.1~4 | * | * | * |
Motor Power(w) | 60 | 60 | 60 | 60 | 60 | 60 | 60*2 | 60*2 | 60*2 |
Motor Speed(rpm) | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 |
Storage Bin (L) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Gear Ratio | 30:01:00 | 30:01:00 | 30:01:00 | 75:01:00 | 75:01:00 | 75:01:00 | 30:1/30:1 | 30:1/30:1 | 75:1/75:1 |
Screw External Dia.(mm) | 16 | 14 | 12 | 16 | 14 | 12 | ** | ** | ** |
Main Material Hopper | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
Mixer | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
Mixer Power | 0.09kw | 0.09kw | |||||||
