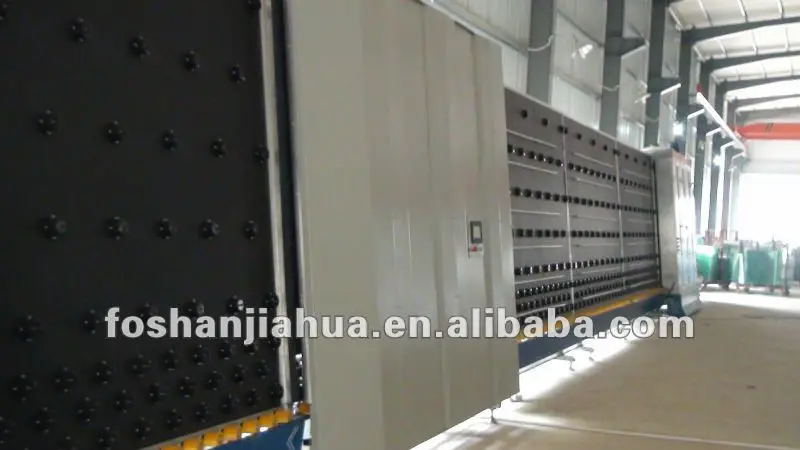

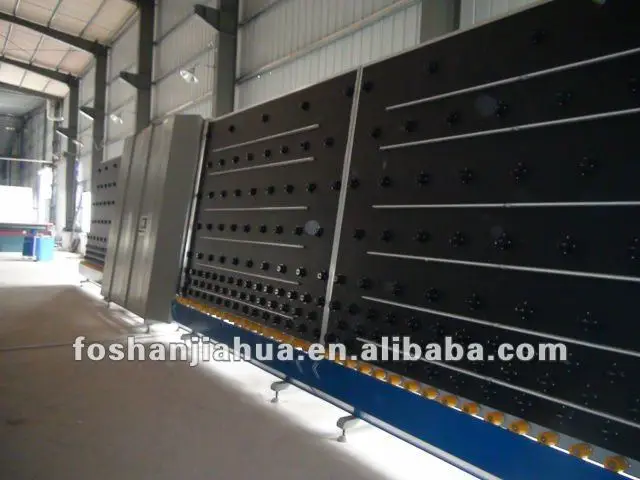

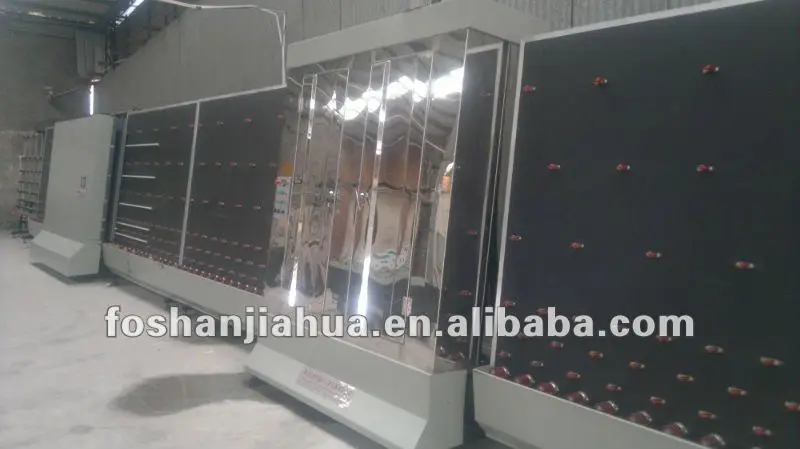

Insulating glass machine Hollow glass machinery Vertical Automatic Inusating Glass Production Line

Brief Introduction

• It is a completely automatic insulating glass production line (can produce LOW-E Insulating glass).
• Then entire machine adopts the PLC controls the working condition.
• Adopts the imported vacuum generator and sucker, the suction effect to the glass could be much better.
• Bases the customers¡¯ different request, the entire machine can be improved and produce the Step IG Unit and three Piece IG production.
• Full distance automatic changeable frequency speed adjustment, which can save work waiting time and improve production efficiency.
• When glass is pressed, the front and back part of flat pressing machine willup the glass with lever- type arm and hand system,( mechanical position + mobile sucking system) all this will ensure no malposition.

Technical Parameter
Input voltage                         380V 50Hz
Input power                           19.5Kw

Minimum processing size         1800×2500mm
Minimum processing size         280×400mm
Glass thickness                      3~18mm
Travel speed                          8~45m/min
Overall dimensions                 16000×2350×2680mm
