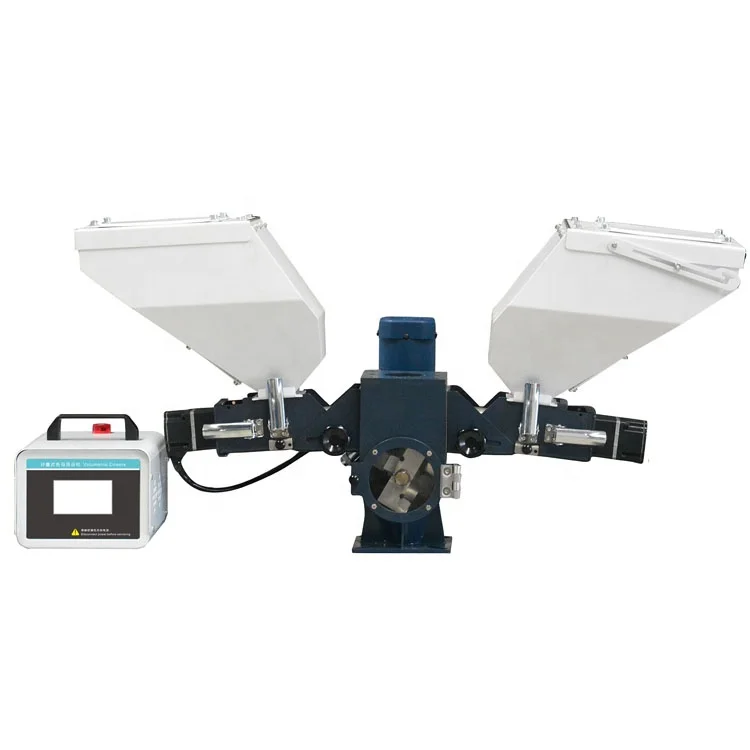

Two color Volumetric Doser in plastic mixer
- Category: >>>
- Supplier: Guangdong Gainwal Automation Technology Co. Ltd.
Share on (557350657):
Product Overview
Description
plastic volumetric dosers
1.Used for mixing the colorant/pigment
2.DC motor adopted free of mainenace
3.Data menory saving
4.Durable chrome plated screw
Features
•Microprocessor controlled LED indicator for operating status and fault.
•Digital display of set point of speed and time.
•Quick openable latches for motor and screw removal.
•Drain cover for quick batch change and clean out.
•Sight glass to check on material level.
Model | Single color unit | Double color unit | |||||||
GCM30-16 | GCM30-14 | GCM30-12 | GCM75-16 | GCM75-14 | GCM75-12 | ||||
Output Capacity(kg/hr) | 1.1~38 | 0.6~20 | 0.3~10 | 0.5~17 | 0.2~8 | 0.1~4 | * | * | * |
Motor Power(w) | 60 | 60 | 60 | 60 | 60 | 60 | 60*2 | 60*2 | 60*2 |
Motor Speed(rpm) | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 |
Storage Bin (L) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Gear Ratio | 30:01:00 | 30:01:00 | 30:01:00 | 75:01:00 | 75:01:00 | 75:01:00 | 30:1/30:1 | 30:1/30:1 | 75:1/75:1 |
Screw External Dia.(mm) | 16 | 14 | 12 | 16 | 14 | 12 | ** | ** | ** |
Main Material Hopper | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
Mixer | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
Mixer Power | 0.09kw | 0.09kw | |||||||
Dimensions |
| ||||||||
H(mm) | 520 | 520 | 520 | 520 | 520 | 520 | 600 | 600 | 600 |
W(mm) | 590 | 590 | 590 | 590 | 590 | 590 | 1000 | 1000 | 1000 |
D(mm) | 355 | 355 | 355 | 355 | 355 | 355 | 355 | 355 | 355 |
Weight(kg) | 16 | 16 | 16 | 16 | 16 | 16 | 33 | 33 | 33 |
