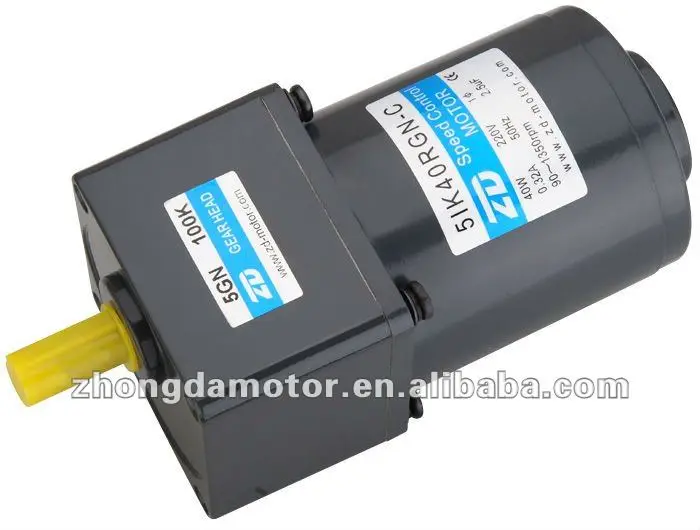

ac gear motor speed controller 40w

Product Overview

Description

ac gear motor speed controller 40w

SPECS (Cont.Rated)

Model * Type		Output power   W	Voltage     V	Frequency     Hz	Speed Control Range  r/min	Allowance Torque		Starting Torque   mN.m	Current       A	Capacitor     μF
Prnion Shaft	Round Shaft					1200r/min   mN.m	90r/min   mN.m
51K40RGN-AJ		40	1ph100	50	90-1400	260	70	180	0.95	12.0
				60	90-1700
51K40RGN-EJ		40	1ph110	60	90-1700	260	65	180	1.05	8.0
			1ph120
51K40RGN-CE		40	1ph220	50	90-1400	300	75	160	0.55	2.5
			1ph230
51K40RGN-HE		40	1ph220	60	90-1700	230	70	145	0.55	2.5
			1ph230



Parallel Shaft Gearhead(Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3,3.6,5,6,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180,200
	5GN10XK(Decimal gearhead)

Enter the gear ratio in the box(*)within the model name



Note : It's just the typical technical data for youreference, The specification such as voltage, speed, torque, shaft cancustomized.



TypicalApplication:

machine tools,textilemachinery, medical appliance, conveying machines, printing mechanism, food machinery,vending machinery, packing machinery, and gumming machinery.
