leather cutting machine

Product Overview

Description

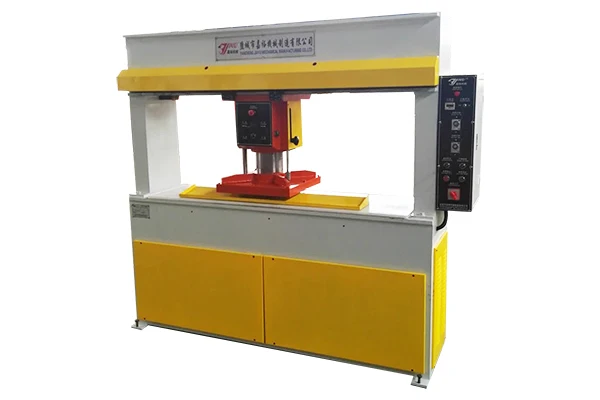

XCLLP2-300 Hydraulic Travelling Head automatic die cutting machine

MachineIt is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;

1. Gantry frame structure is adopted, with high intensity and without deformation.
2. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
4. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
5. Differential oil way is adopted to allow rapid and convenient cutting.



 Main technical parameters:

Maximum cutting force	30 Tons
Adjustment range of travel	5-150mm
Size of worktable	1600×510mm
Cutting head size	500×500mm
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Main motor power	2.2KW
Packing size	2320×750×2200mm
Machine weight	1700KG

























Remark:My factory can make the machine according your order,for example the cutting force,the cutting area etc.
