50Ton Hot chamber Lead / Zinc alloy die casting machine

Product Overview

Description

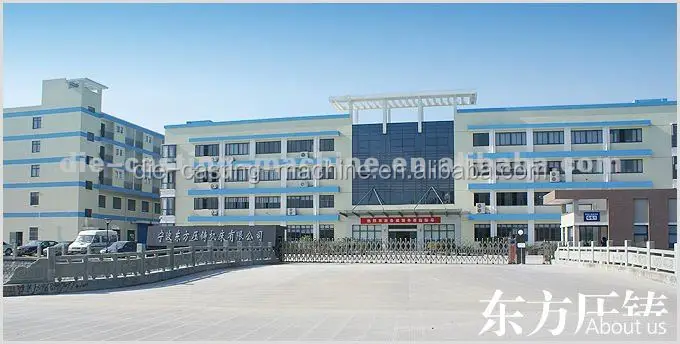

 Our Company Strategy

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect cold/ hot chamber die casting machine and sincere service.



* With a history of over  37  years                                * Factory Area : 40,000 square meters

*Employees : More than 500                                         *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center                * Main Machines: 100sets

Lead & Zinc alloy  Horizontal hot chamber die casting machine

We can supply this lead & zinc alloy die casting machine with the die locking force from 160KN to 1800KN. That is to say the scale of machine is 16ton to 180ton.  This allows you choose the most suitable scale machine for your production. We do best in the manufacturing process from the material,including forging steel and iron plates, to maching, japaning and assembly.









  Have Machine Already



  If you already have machine, you can tell your demand in detail, then let's discuss what can we do for you. We can help you do no matter the mold working or machine spar partes.





-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

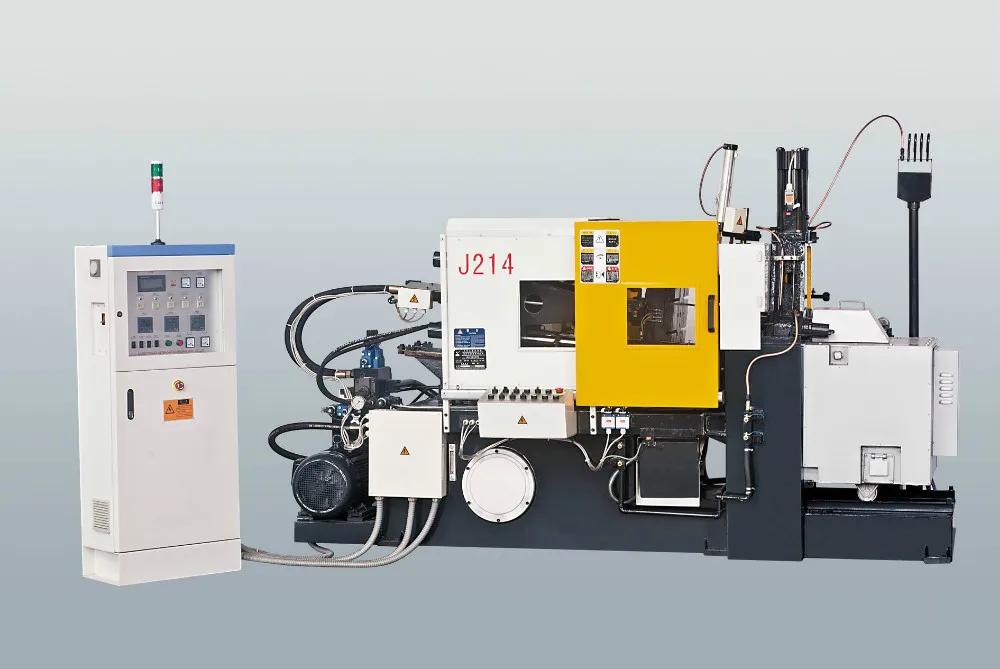

Here, Induction of J214 50ton hot chamber die casting machine



SCAN:

1.50T Hot Chamber Die Casting Machine

2.Suitable for zinc and lead alloy

3.PLC and person-machine interface

4.Industrial level microcomputer

5.Pump --- Japan YUKEN

6.Valve ---- Japan YUKEN & Japan TOKIMEC & Taiwan Northman

7.PLC ---- Japan Misubishi

8.Touch screen ---Japan Misubishi

9.Remote machine control and trouble locating functions

10.Larger-caliber logic ensure die-casting parts have high quality



What product this machine can make? ----- This Zinc alloy die casting machine is suitable for die casting of non-ferrous metal with low melting point. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.

Some machine device ----   This die casting machine is controlled by industrial level microcomputer. The die casting process parameter can be set up through the person-machine interface, which is convenient and time-saving and effortless in operation and maintenance. Besides, the machine has remote machine control and trouble locating functions. The Pump, Valve and PLC all use well know brand product.



Hydraulic system ----- The hydraulic system of the machine adopts pressure double-scale system so that can be adjusted at discretion. The ejecting system use large-caliber logic and cantilever beam-type oil-way, which ensure high ejecting speed. This machine is equipped with high quality electronic and hydraulic parts, ensuring a reliable and safe whole-machine

The detial photos of J214 50T hot chamber die casting machine



 Glories of J214 Zinc alloy die casting machine























National Main New Product Certificate & National program for torch plan

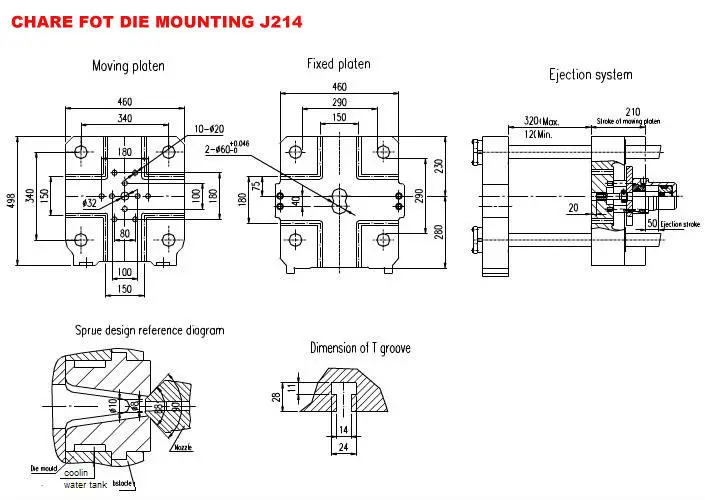

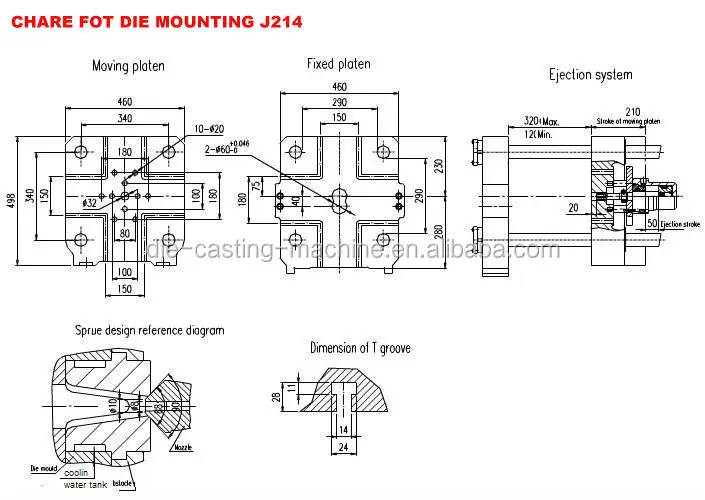

Main Technical Figures Table



	Technical Figures	Unit	Figures
Spotting	Spotting force	kN(ton)	500(50)
	Platen dimension(H×V)	mm	460×498
	Inner space between pull rod (H×V)	mm	290×290
	Diameter of pull rod	mm	50
	Stroke of spotting	mm	210
	Max. thickness of die	mm	320
	Min thickness of die	mm	120
Injection	Injection force	kN	50
	Stroke of Injection	mm	110
	Diameter of standard injection room	mm	50/45(Special)
	Dosage of metal per shot(Zinc)	Kg	1.1/0.9(Special)
Ejection	Ejection Force	kN	50
	Stroke of Ejection	mm	50
Time per Cycle	Total time of die open&close, ejection& ejection return, injection&injection back.	s	7
Core	Moving core(1group)
	Connection dimension	mm	M18X1.5
Cooling water	Machine cooling water let-in rubber hose diameter	Rc	3/4
	Machine cooling water let-in rubber hose diameter	Rc	1 1/2
	Mold cooling water let-in rubber hose diameter	mm	10
	Mold cooling water let-out rubber hose diameter	mm	10
	Quantity of cooling water valve	PC	4
Air compression	Pressure	MPa	0.6

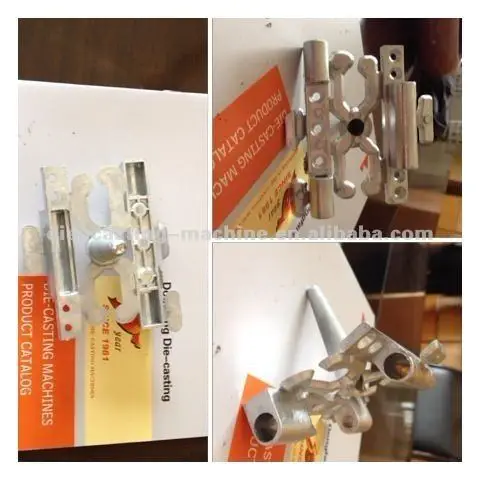

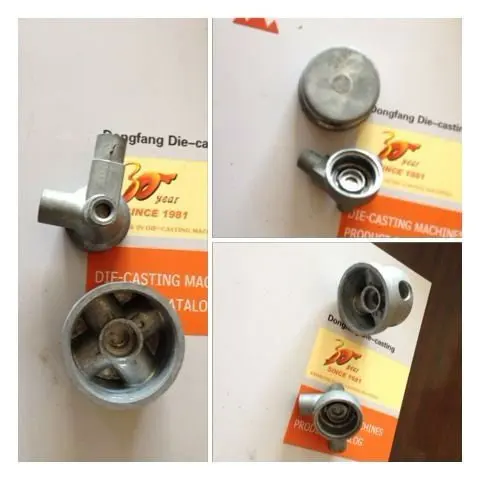

Product samples for reference



Model J214(50Ton) 500KN hot chamber die casting machine









If you want to know more information, pls contact us without  hesitate.
