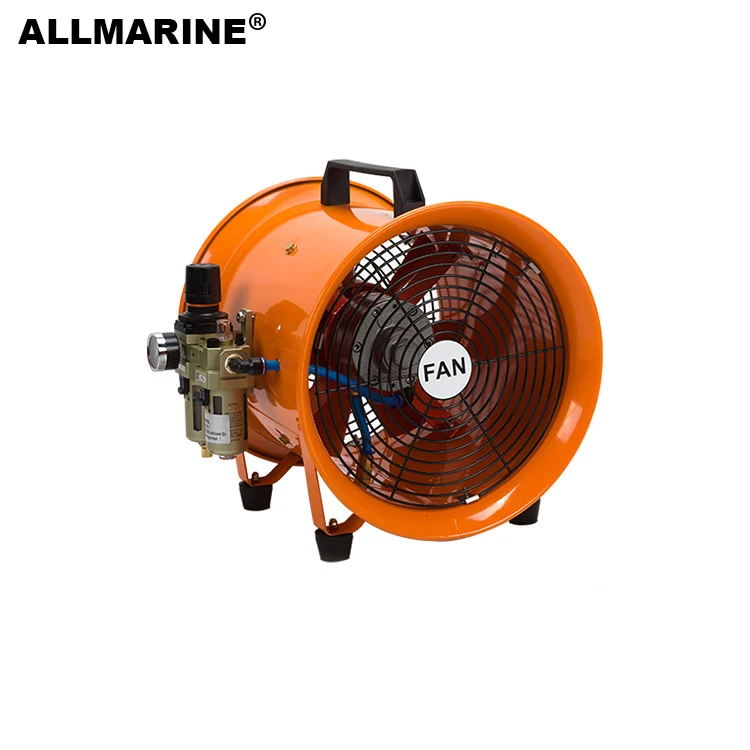

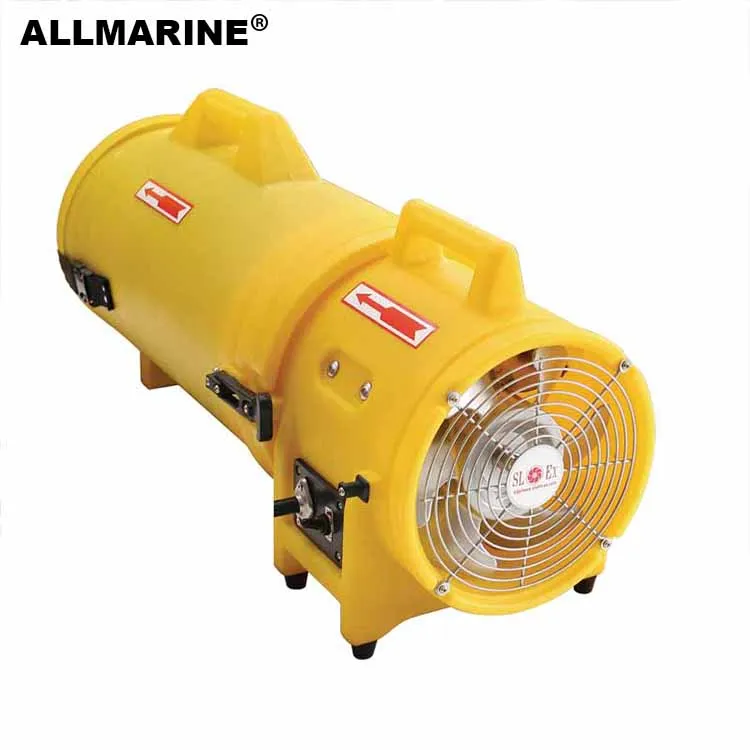

The portable high speed ventilator is blessed with low power consumption, large wind volume, high wind pressure and low noise.
Features
Saving energy and strong wind power
Low noise and die-casting aluminum alloy case
Every fan installs Temp Sensor Device.
Application
Ventilation for tunnel, basement, ship building, electric soldering and waste gas exhaust out.
Technical Date
Model | Size Dia. | Voltage | Frequency | Speed | Watts | Capacity | Static |
BTF | mm | V | Hz | R/Min | W | m³/min | PA |
BTF-20-110 | 200 (8'') | 110 | 50/60 | 2800 | 180 | 25 | 240 |
BTF-20-220 | 200 (8'') | 220 | 50/60 | 2800 | 180 | 25 | 240 |
BTF-25-110 | 250 (10'') | 110 | 50/60 | 2800 | 300 | 45 | 280 |
BTF-25-220 | 250 (10'') | 220 | 50/60 | 2800 | 300 | 45 | 280 |
BTF-30-110 | 300 (12'') | 110 | 50/60 | 2800 | 350 | 65 | 360 |
BTF-30-220 | 300 (12'') | 220 | 50/60 | 2800 | 350 | 65 | 360 |
BTF-40-110 | 400(16'') | 110 | 50/60 | 2800 | 1100 | 105 | 600 |
BTF-40-220 | 400(16'') | 220 | 50/60 | 2800 | 1100 | 105 | 600 |
BTF-50-110 | 500(20'') | 110 | 50/60 | 1400 | 1100 | 130 | 260 |
BTF-50-220 | 500(20'') | 220 | 50/60 | 1400 | 1100 | 130 | 260 |
BTF-60-110 | 600(24'') | 110 | 50/60 | 1400 | 1500 | 240 | 380 |
BTF-60-220 | 600(24'') | 220 | 50/60 | 1400 | 1500 | 240 | 380 |
BTF-60-380 | 600(24'') | 380 | 50/60 | 1400 | 1500 | 240 | 380 |
