Kaplan Turbine Hydro Generator
- Category: >>>
- Supplier: Chongqing Hi-Sea Marine Equipment Import & Export Co. Ltd.
Share on (558422592):
Product Overview
Description
hydro generator:
Kaplan Turbine Hydro Generator
The hydropower generator made by Hi-Sea Marine are synchronous generator which are manufactured with advanced technology and excillent machining equipment and can meet different technical conditions of all kinds of turbines. We provide all kinds of generators covering a capacity from 0.2 to 120MW, maximum speed up to 1500r/min, F grade insulation class and maximum voltage for coil up to 13.8KV.
This is technical parameters of 320kw kaplan turbine generator
Design Head(m) | Design Flow(m3/s) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Valve Model |
9 | 4.48 | 333 | 320 | 400 | 91 | Φ1500 Butterfly Valve |
10 | 4.03 | 375 | 320 | 400 | 91 | Φ1400 Butterfly Valve |
11 | 3.80 | 500 | 320 | 400 | 92 | Φ1400 Butterfly Valve |
12.5 | 3.15 | 600 | 320 | 400 | 91 | Φ1200 Butterfly Valve |
12.5 | 3.20 | 600 | 320 | 400 | 92 | Φ1400 Butterfly Valve |

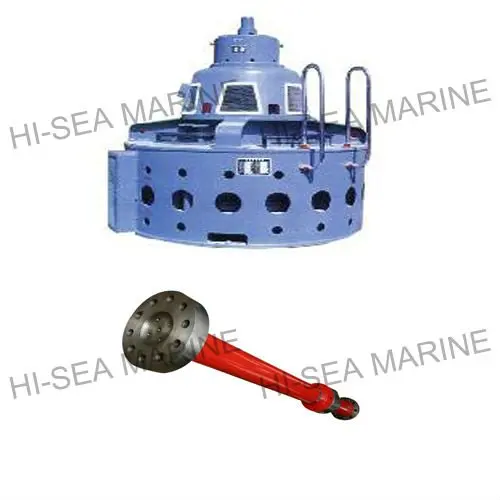

hydro generator of kaplan turbine
