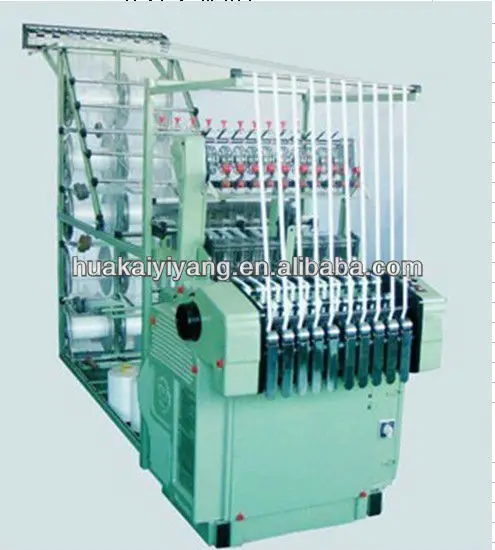

High speed metal plastic nylon zipper tape/belt/webbing/ribbon needle loom

Product Overview

Description

Model:HKT-0102(10/25)P/M
Tapes:8
Reed Width:25 25 20
Motor:1.5HP
Speed :1400-1600RPM
Head Frame:12PCS 6PCS
Chain Repeat:8 Cam styles
Weft Density:3.5-36.7weft/cm
Normal attachment: Back-off device,Creel place,Nomal attachment
zipper
Optional Attachment:Beam

Detailed Product Description:
1.Cam oil auto circulation and lubrication device
2.Yarn automatic breking ststem with indication light
3.Produce many tapes at the same time

Applicable Scope:
"This machine is specially used in producing elastic and unelastis zipper belts for many
kinds of zippers,including metal zipper belt  plastic zipper belt, and
other many kind of zipper belts"
Features:
1. Special-type machine for producing many kinds of zipper belts, such as metal, resin and nylon zipper belts.
2. Adopt automatically stop device, once the yarn break, the machine will stop automatically.     3. Adopt automatic lubrication device, the oil can cycle and lubricate the machine automatically.
4. Auto regulate device for zipper belt, easy for operator to check the finished belts.
5. Simple structure, stable, low-noise, easy to maintain and repair, long operating life, spare parts available
