Product Overview
Description
Double hook shot blasting machine/Shot blasting cleaner/Sandblasting equipmen/Double Hanger Spinner Hanger Hook Type

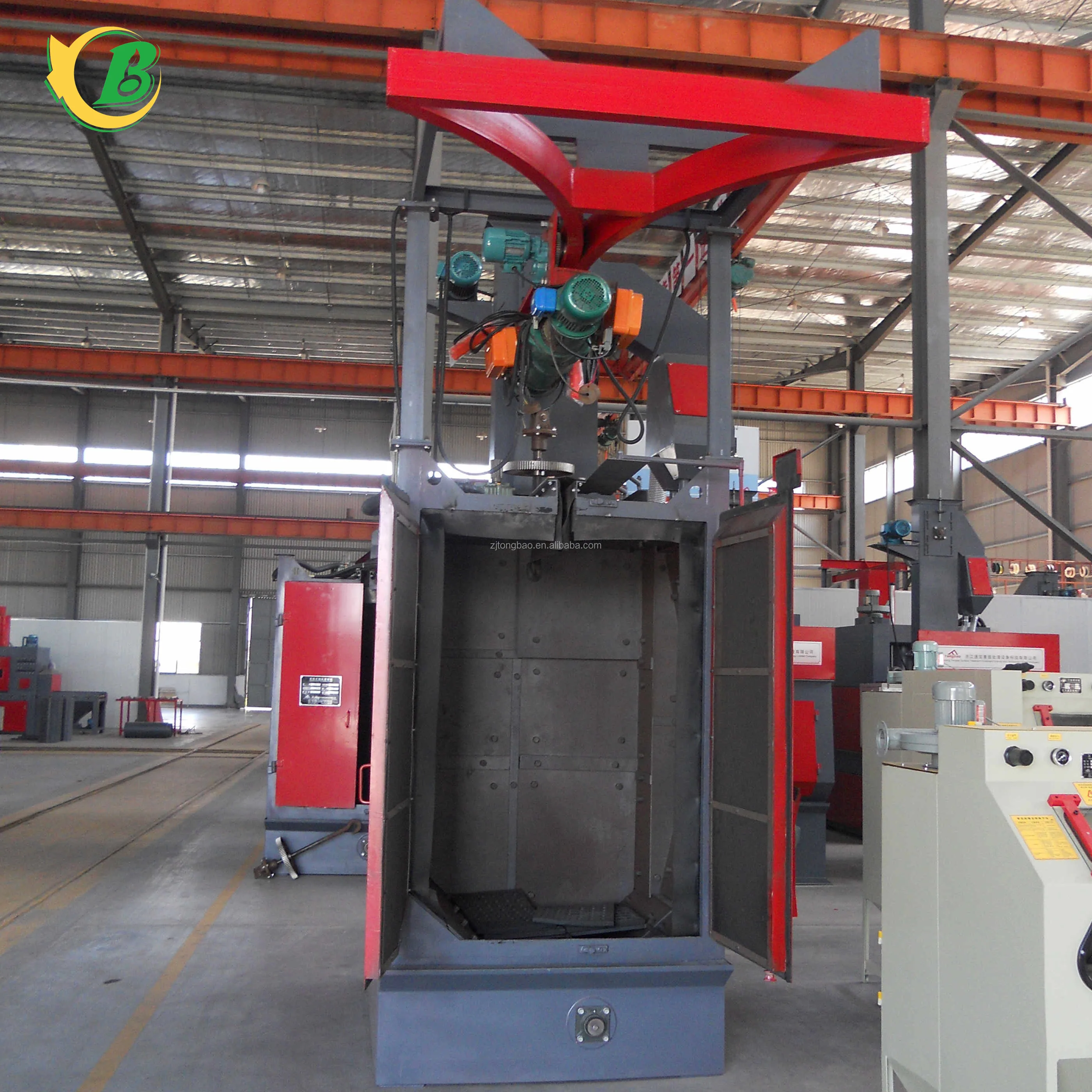

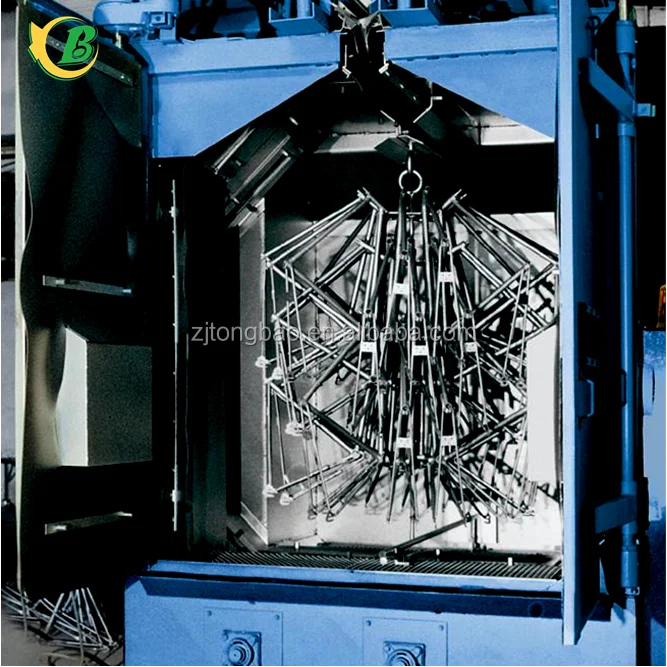

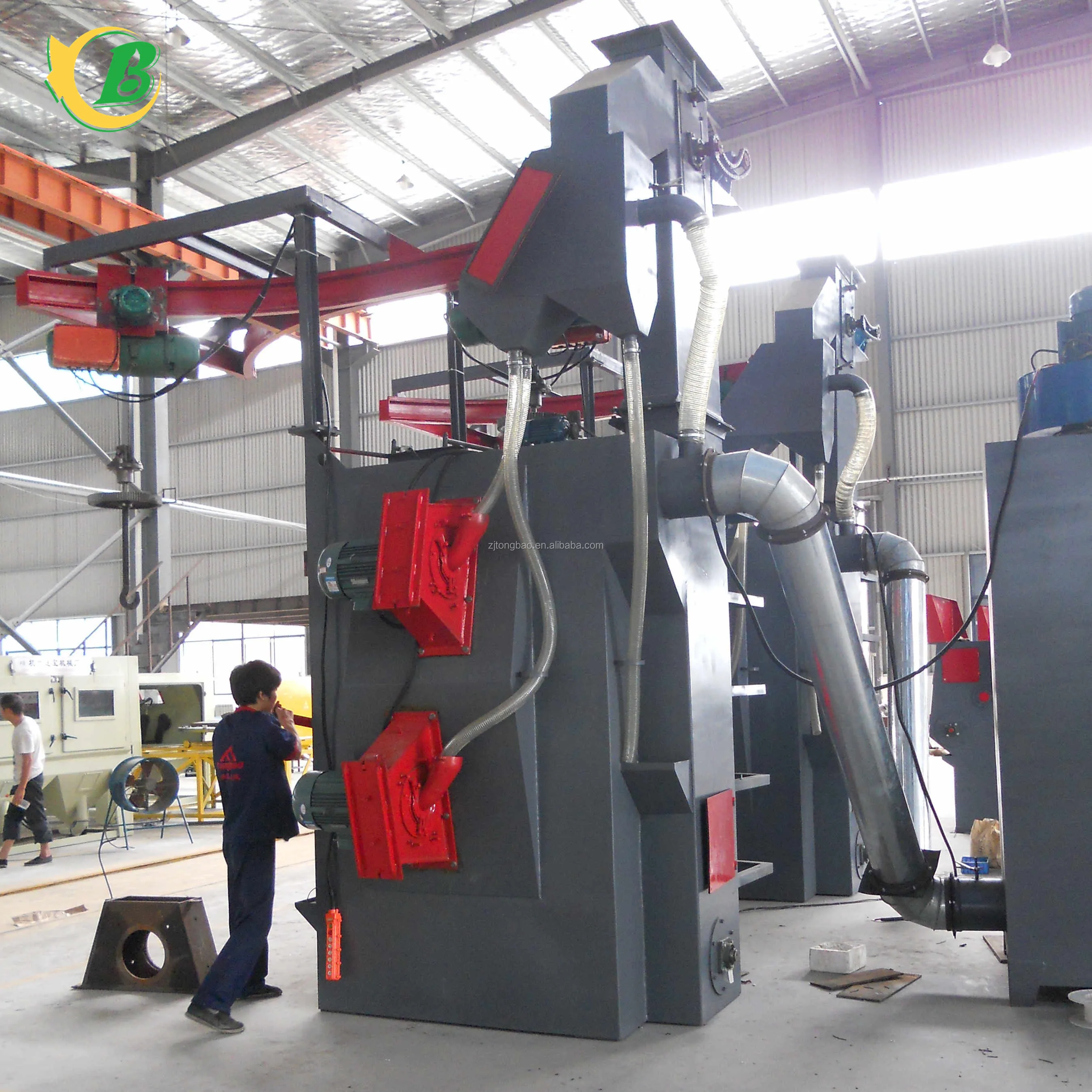

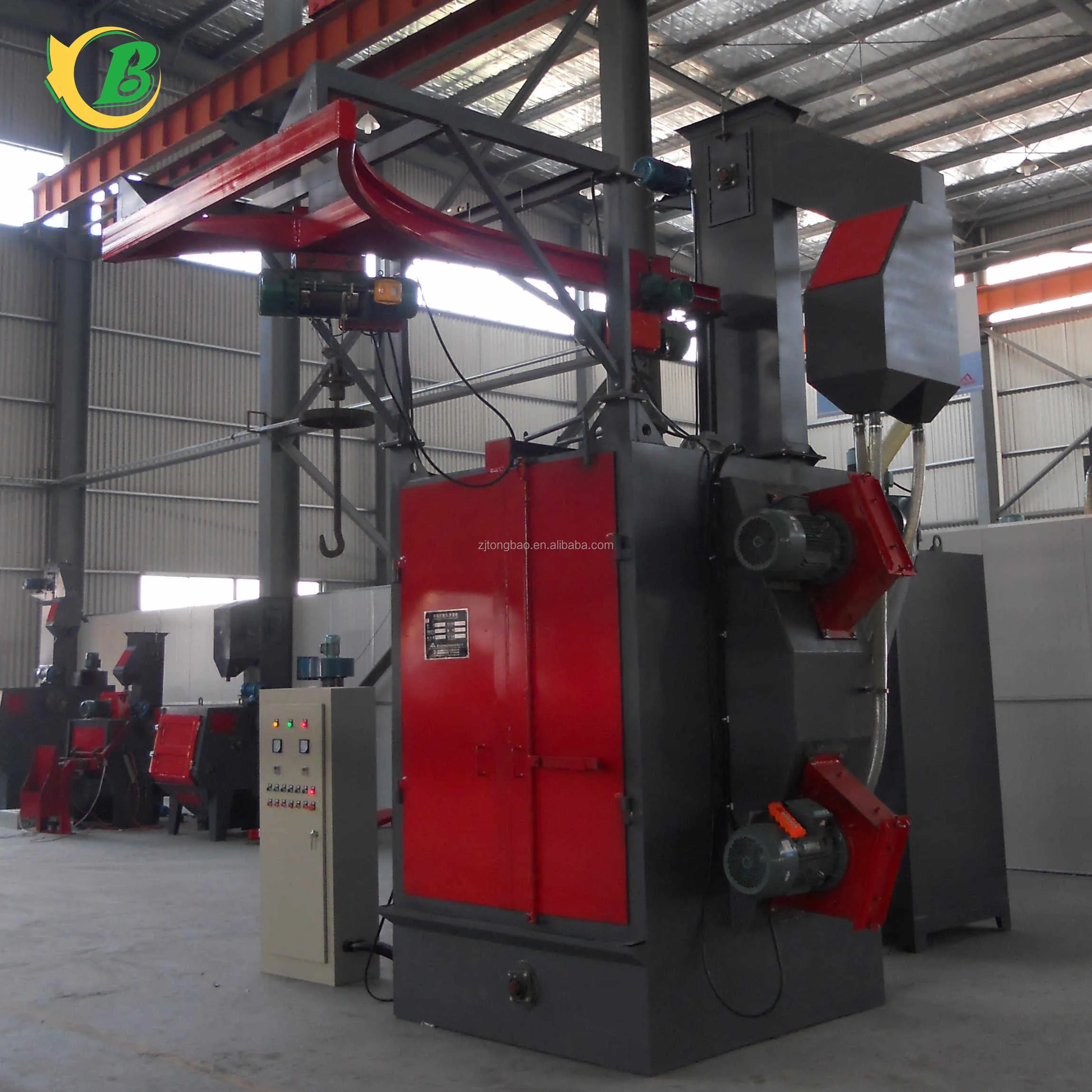

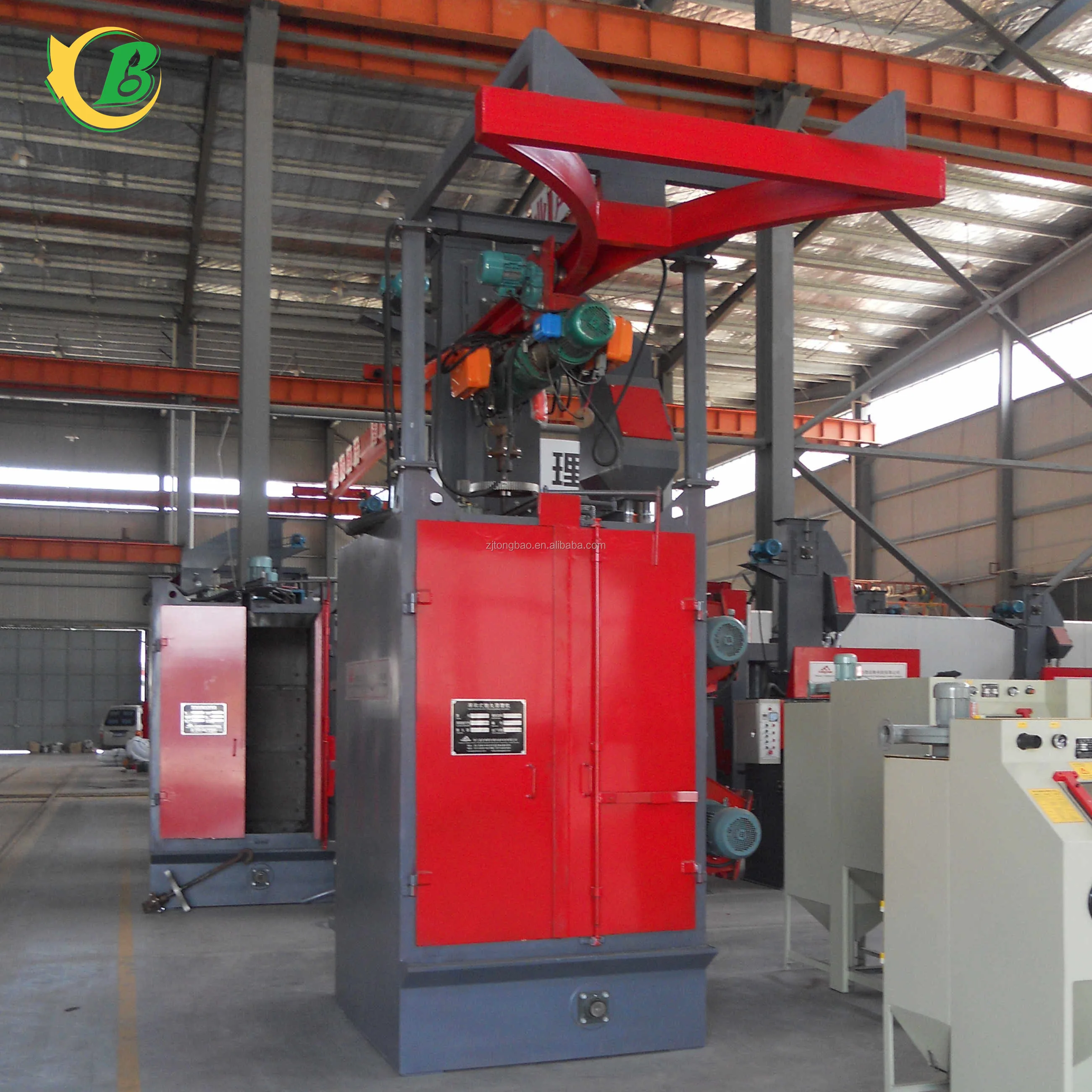

Double hook shot blasting machine
Detail Product Description
The Q37 series lift hook type throws the pill cleaning up achiness mainly use in the steel structure, the casting, the aluminum alloy and other components superficial cleaning up and the strengthening, widely applies to profession and so on casting. Forging and stamping, machinery, steel and iron.Q378E cleaning up machinery and tools pit, are the structure whether there is compact, the productivity higher merit.
No. | Equip.name | Hanger type Shot blast | Hanger type Shot blast | Hanger type Shot blast | Hanger type Shot blast | Hanger type Shot blast | Hanger type Shot blast |
Serial number | Q375 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 | |
1 | Work piece dimension(mm) | 700*1000 | 800*1500 | 1000*1800 | 1400*2300 | 1850*2200 | 1800*2500 |
2 | Max hang weight(kg) | 500 | 800 | 1000 | 2000 | 3000 | 5000 |
3 | Hanger rotate speed(r/min) | 4.0 | 4.3 | 4.0 | 4.3 | 4.0 | 4.6 |
4 | Steel pill Dia (mm) | 1-1.5 | 1-2 | 1-2 | 1-2 | 1-2 | 0.8-1.2 |
5 | First loading quantity(kg) | 500 | 1000 | 1000 | 1500 | 2000 | 2500 |
6 | Shot wheel type | YH31 | 130 | 130 | 130 | 130 | 130 |
7 | Power (KW) | 2*7.5 | 2*11 | 2*11 | 3*11 | 4*11 | 5*11 |
8 | Raise capability (T/h) | 15 | 25 | 25 | 35 | 45 | 80 |
9 | Raise power (KW) | 1.5 | 2.2 | 2.2 | 1.5 | 2.2 | 4 |
10 | Blast capability (kg/min) | 120 | 170 | 170 | 170 | 170 | 170 |
11 | Separator capability (T/h) | 15 | 25 | 25 | 35 | 45 | 63 |
12 | Conveyor capability (T/h) |
| 25 | 25 | 35 | 45 | 63 |
13 | Conveyor power (KW) |
|
|
| 1.1 | 1.5 | 2.2 |
14 | Total vent amount (m 3/h) | 4500 | 6000 | 6000 | 85000 | 11000 | 18000 |
15 | Total power (KW) | 17 | 29 | 29 | 51 | 61 | 78 |
16 | Machine size (length*width*height)mm(for reference) | 2035* 1956* 3762 | 4500* 2450* 5100 | 4500* 2450* 5900 | 6100* 3599* 7842 | 6960* 3670* 7918 | 7060* 5460* 8650 |
