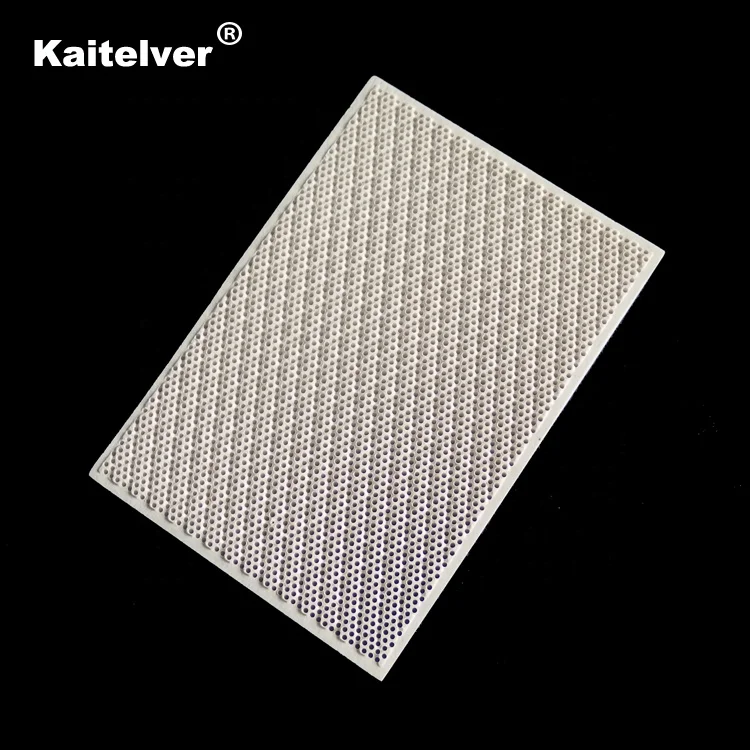

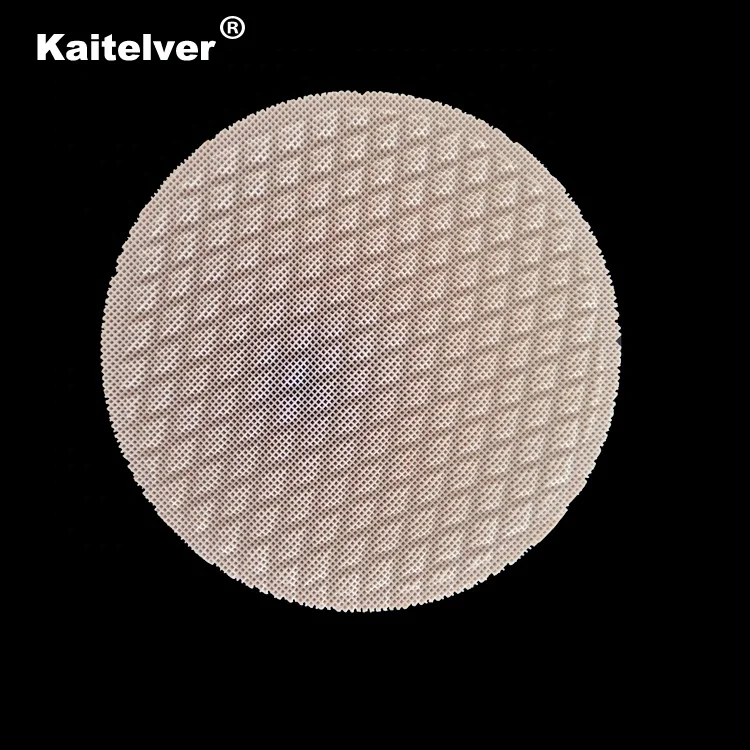

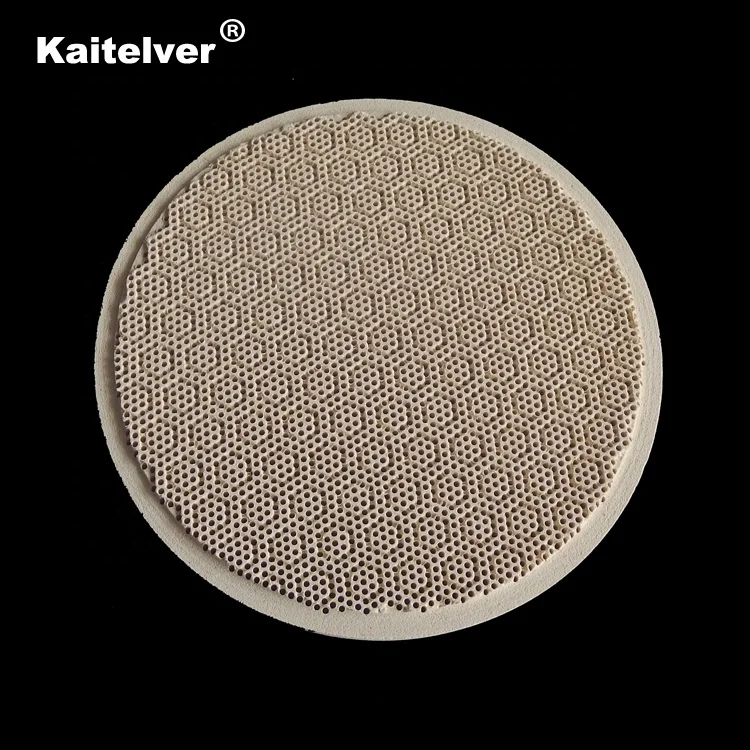

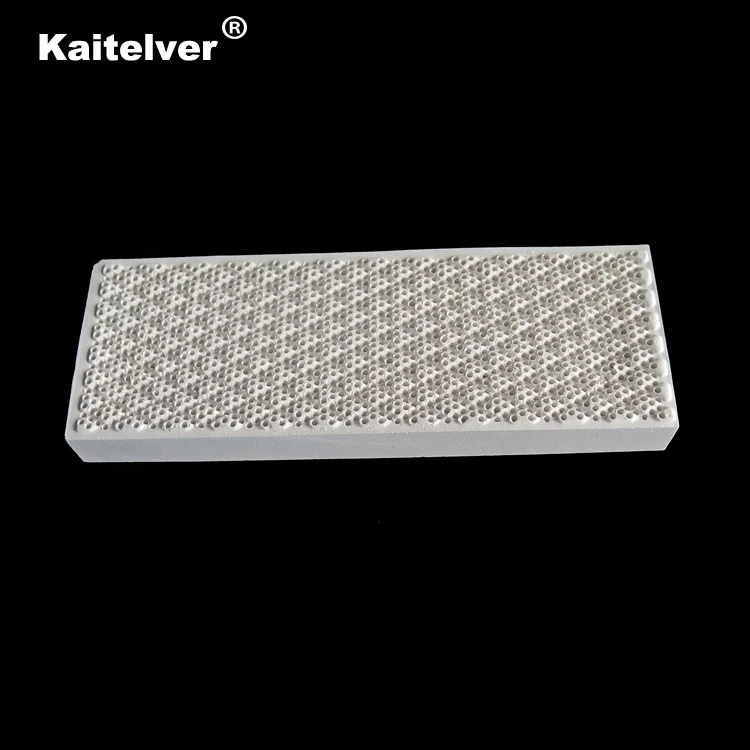

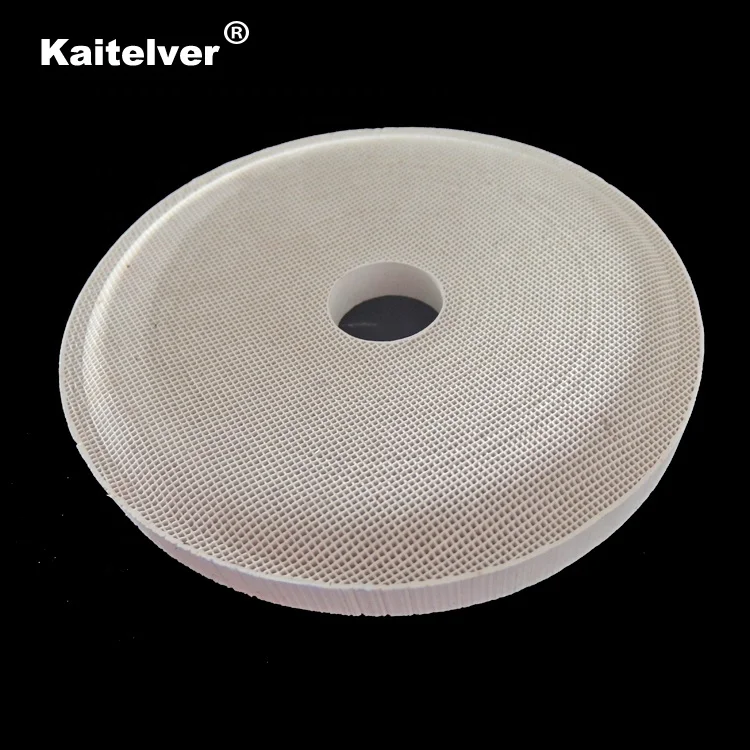

Catalyst infrared cordierite honeycomb ceramic combustion plaque for gas heater

Our production of infrared ceramic plate use of modern advanced science and technology, selecting high-purity and high-quality cordierite. It has the characters of improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range.
Application of rare earth catalytic combustion technology on infrared burner & heater, which can save 40 to 50% energy than non-catalytic infrared heater.
Pattern of surface: Flat, plum-blossom shape, diamond-shape, “8” pattern or as your requirement.
Color of plate: Black, coffee, brown, yellow, etc.
Size-Square(L×W): <200×140 mm.
Size-Round shape: Dia.50-200 mm
Thickness: 8-15mm.

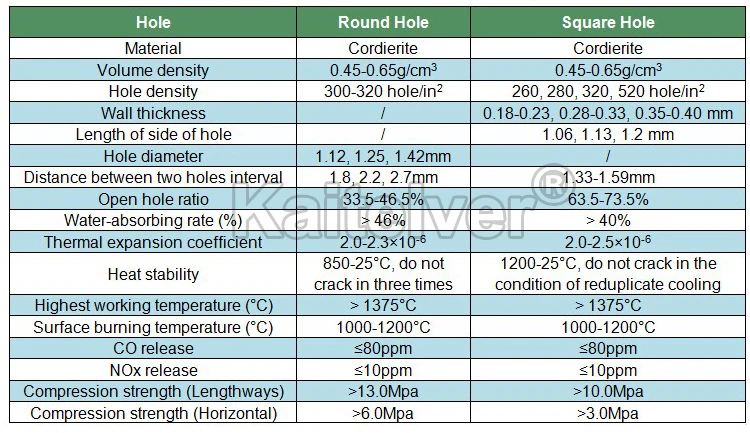

Hole Diameter: 1.1-1.8mm.
Holes interval: 1.649-2.086 mm.

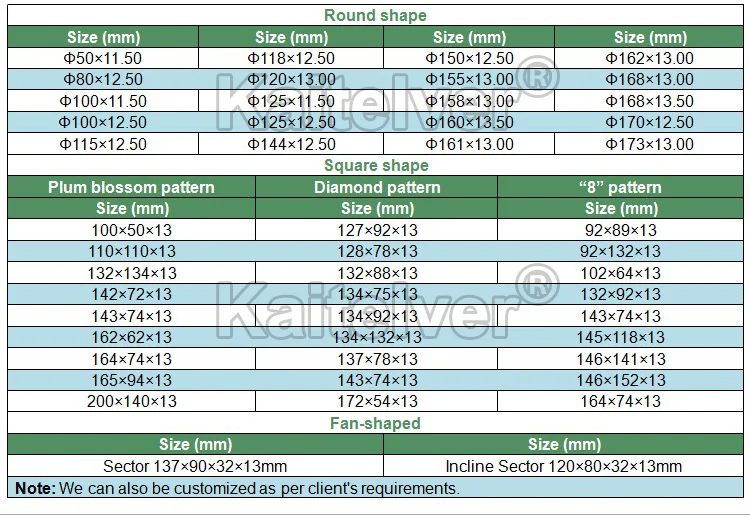

Dimension & Shape

1. Gas stove/cooker.
2. Gas water heater.
3. Gas burner oven.
4. Roaster, broilers, grill cooker, BBQ stove.
5. Barbecue grill & bakeout furnace.
6. Pizza oven & rotisserie oven.
7. Gas room heater.

1. Economical and practical, energy saving up to 40-50%.

2. High performance completely burning, burn without flame, high burning efficiency, low noise.

3. Reducing 90% of harmful exhausts (such as the NOx, CO, etc.).

4. Balanced and uniform radiant burning.

5. Excellent thermal shock resistance & mechanical strength.
