5 дюймов эта панель ЖК дисплея с сенсорным экраном панель, VSTY2662V1 lcd плата контроллера

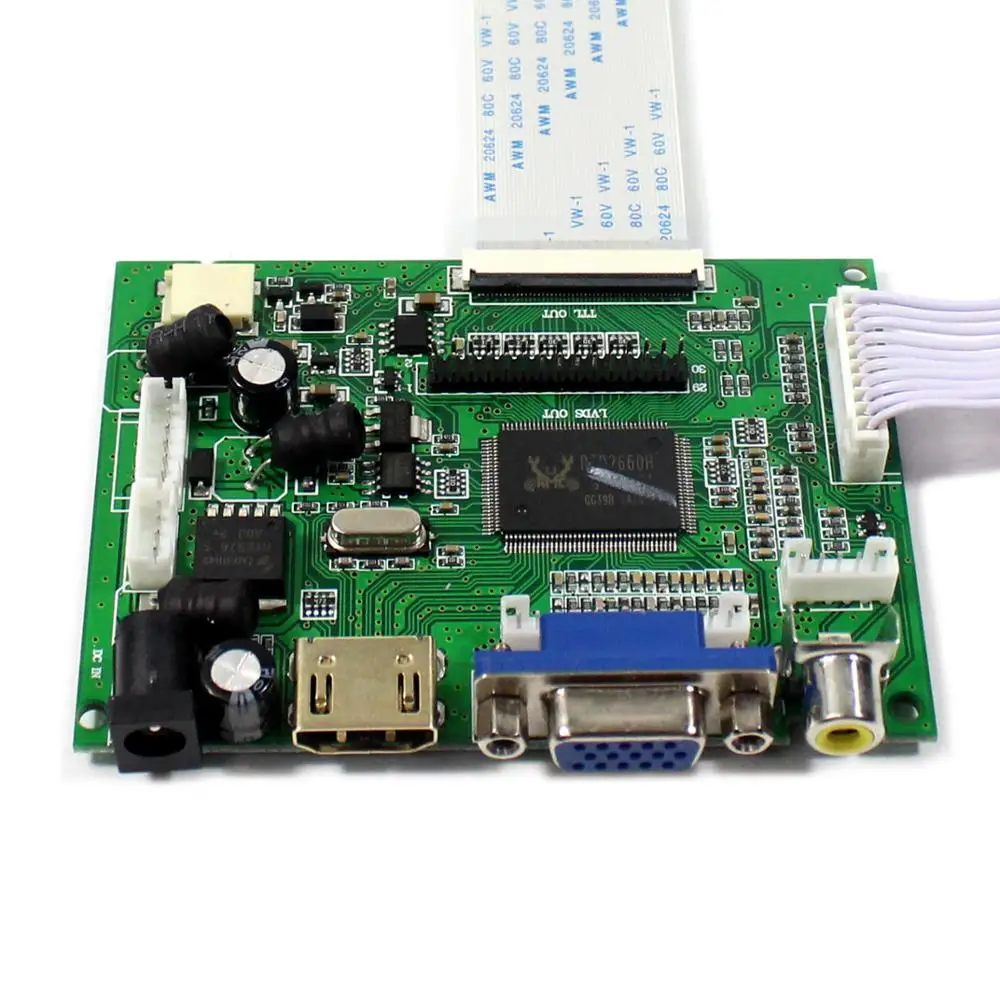

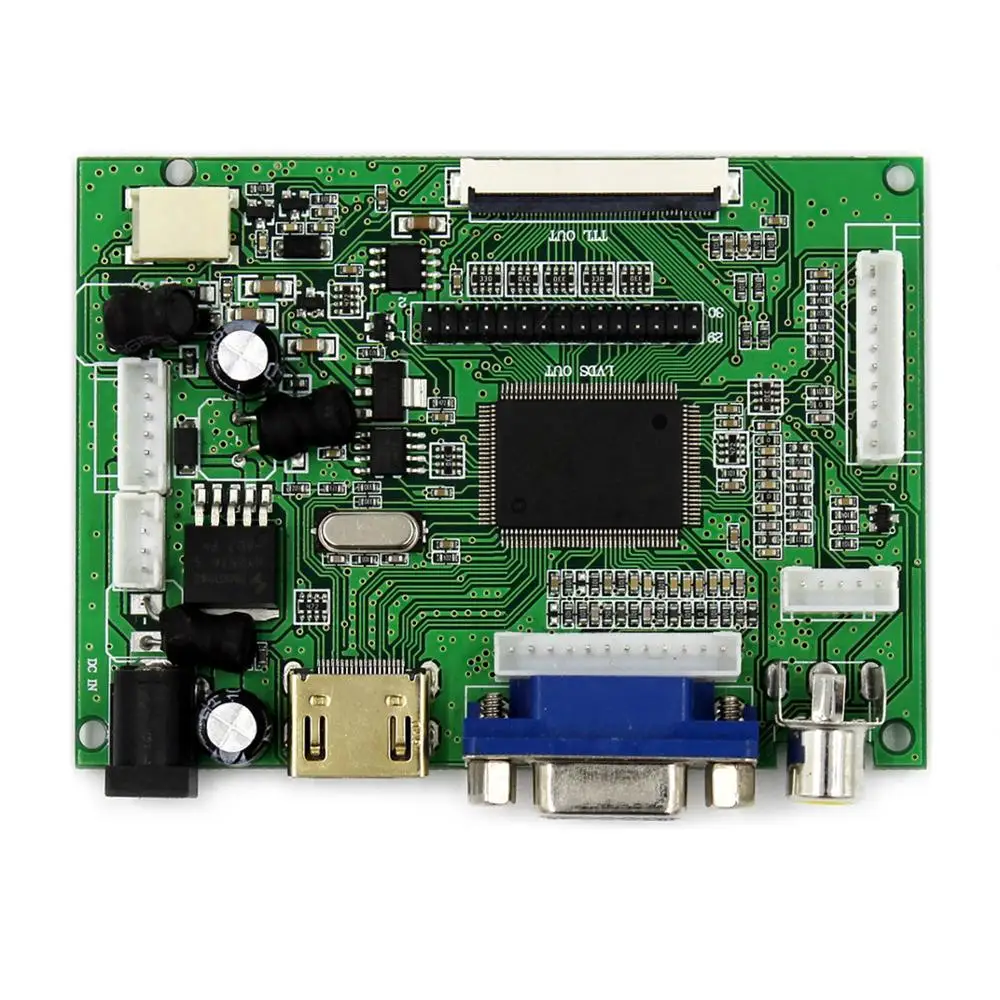

LCD Controller Board VS-TY2662-V1:

VS-TY2662-V1 is a LCD control board, it supports between 7 and 22 inch LCD panel with single /dual LVDS interface.

Support reversing function

Size: 90.58mm(L)*65.6mm(W)*12mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

standby< 1W

Panel Interface: 50PIN TTL/6Bit 8it Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

5" 800x480 LCD Screen AT050TN43:

Display Mode TN, Normally White, Transmissive

Type: LCM , a-Si TFT-LCD

Resolution: 800×480

Signal Interface: TTL (1 ch, 8-bit) , FPC , 40 pins

Backlight: WLED

Outline Size: 118.15 × 77.55 × 3.3 (H×V×D)

Display Area: 108 × 64.8 (H×V)

Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)

Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)

Voltage Supply: 3.3V

Operating Temp:-30 ~80 °C

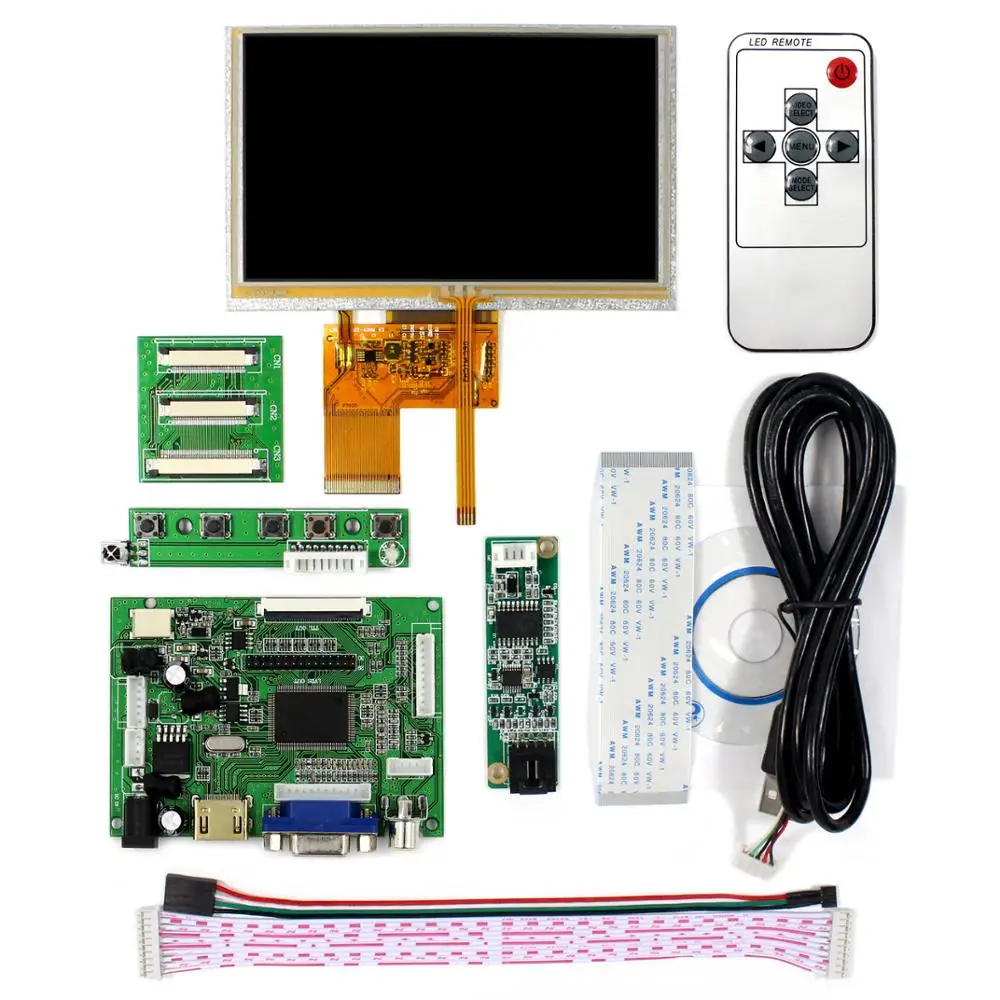

1× LCD Controller Board VS-TY2662-V1 (Support Automatically switch to AV2)

1× 5inch 800X480 TFT LCD Screen AT050TN43

1× 50Pin->40Pin Converter Board

1× 50Pin 150mm Flat Cable

1× Keyboard with Wire

1× Remote control (Battery not included. Battery Model No CR2032)

 1 year warranty from the day the product sold. Some technical issue can be solved online.

Trade Term:  EXW Shenzhen  or  FOB Shenzhen

Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment: T/T HSBC, Paypal, Western Union

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA),  mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
