VGA AV LCD Controller Board with 5.0 Inch tft lcd Touch Screen Note:This driv

Share on (559690116):


Price:RUB 3,121.74

Quantity:


Product Overview

Description

VGA 2AV driver board with 5inch 800x480 LCD panel touch panel remote



VS-TY40-V1+HSD050IDW1+VS050TP-A4+Remote

Product Description

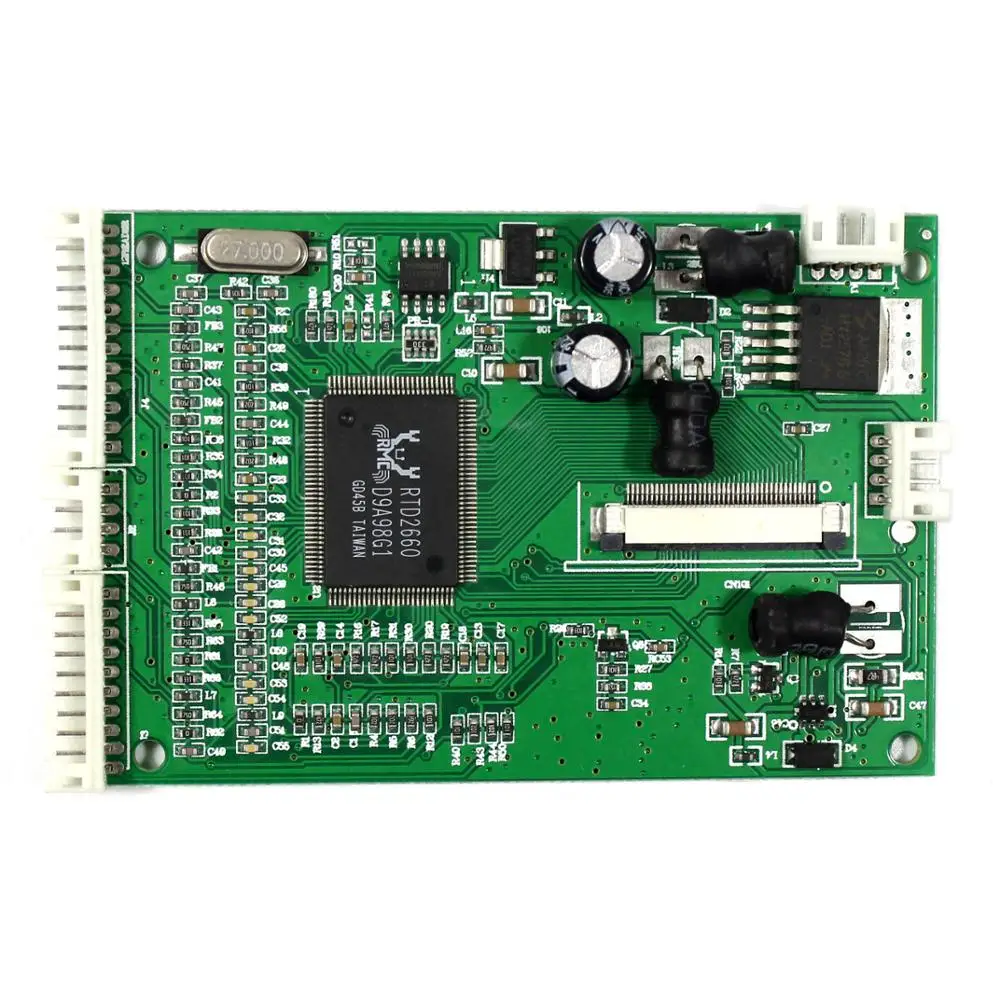

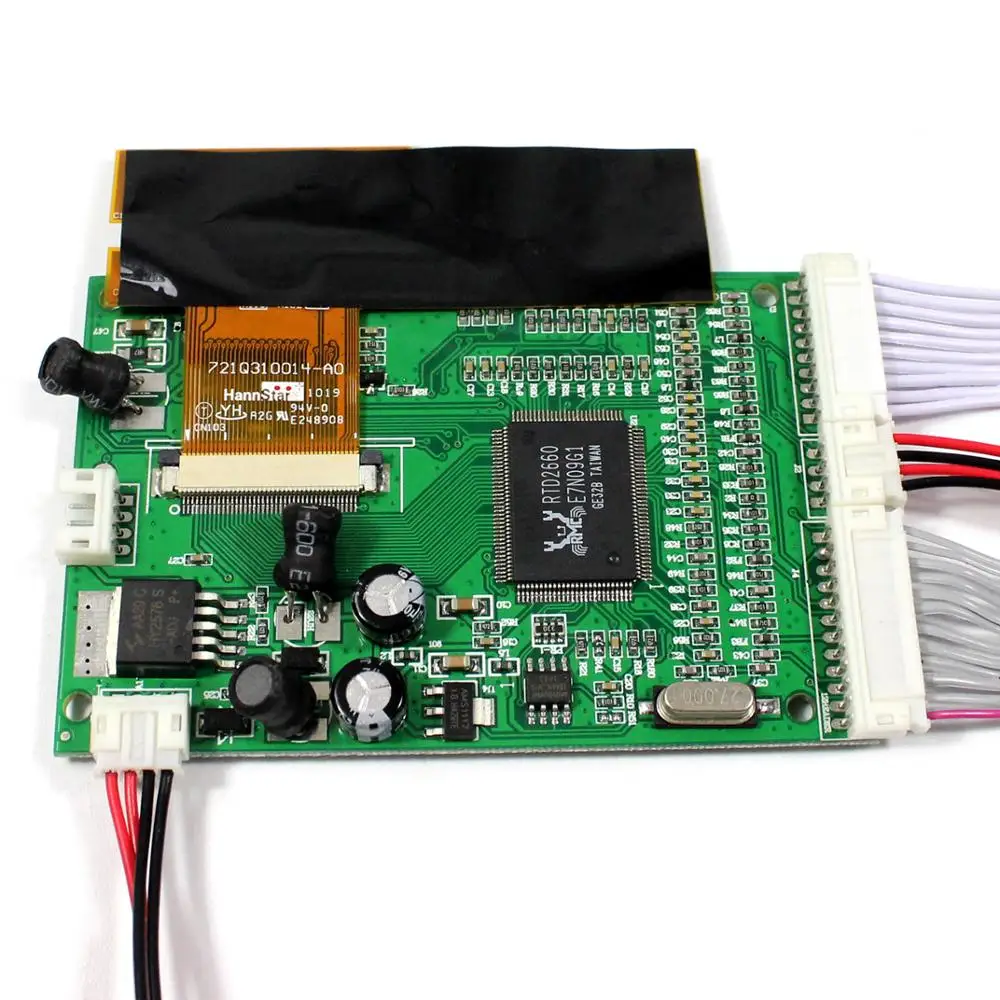

VGA+2AV LCD Driver board VS-TY40-V1:



VS-TY40-V1 Driver board is mainly designed for 4.3inch, 5.0inch with 40pin LCD Panels.



It is widely use for Car Monitor, Visual Intercom, Video Phone, Monitoring Equipment.



Input Power Adapter: 12Vdc More than 2A



INPUT: VGA+2AV



Multi function OSD Operation



Operation temperature: -10~60°C.



GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

Note:

This driver board support Automatically Switch to AV2(Reversing View Function). Please connected ACC to 12V.

If you only need VGA or AV signal as input. Please contact us, We will update the firmware for you.



5" HSD050IDW1 800x480 LCD Screen:



Display Mode N, Normally White, Transmissive



Resolution: 800×480



Signal Interface: TTL (1 ch, 8-bit) , FPC , 40 pins



Backlight: WLED



Outline Size: 118.5 × 77.55 × 3.4 (H×V×D)



Display Area: 1108 × 64.8 (H×V)



Brightness: 400 cd/m² (Typ.)

Contrast Ratio: 600:1 (Typ.) (TM)

Viewing Angle: 75/75/60/70 (Typ.)(CR≥10)



Operating Temp:-20 ~ 70 °C

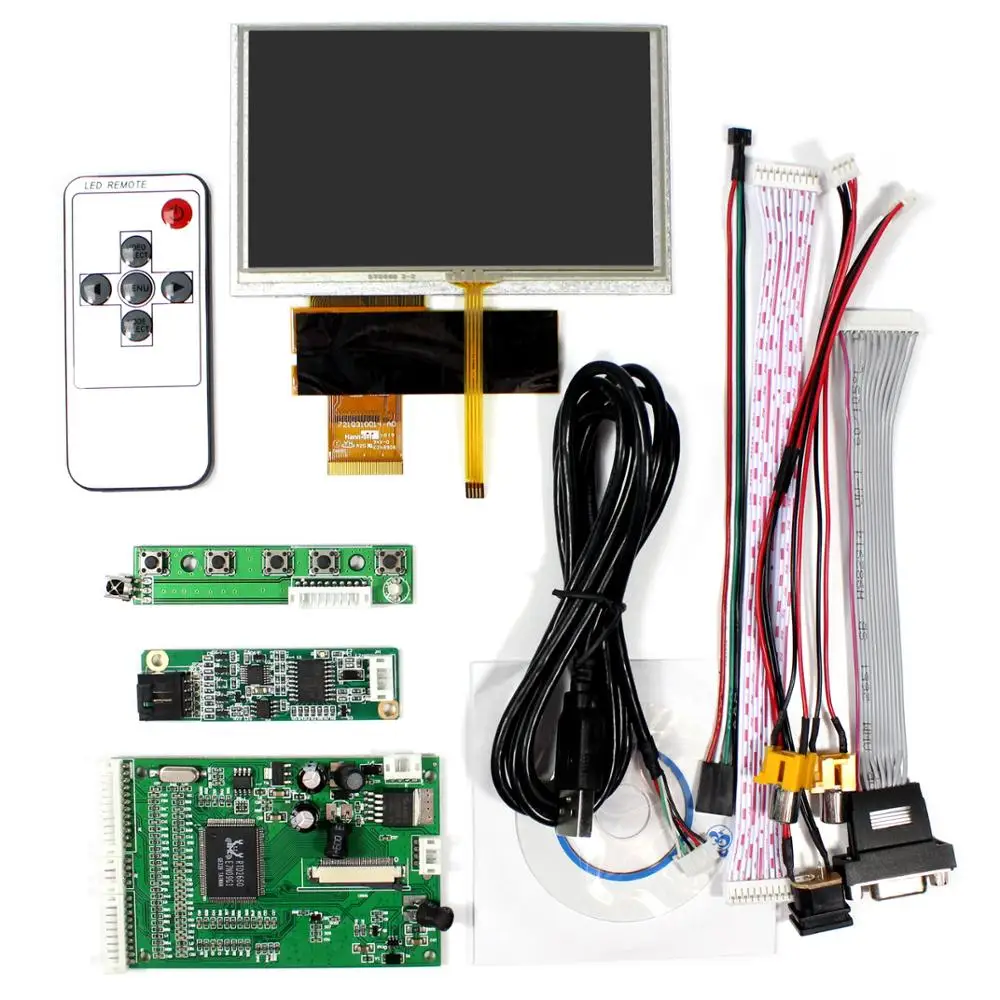

Packaging & Shipping

1× VGA 2AV LCD Controller Board VS-TY40-V1



1× 5inch 800X480 TFT LCD Screen HSD050IDW1-A20 with VS050TP-A4



1× Keyboard with Wire



1×USB port touch panel controller card



1×USB Cable



1×CD Driver for touch control card Support LINUX Windows CE XP and Win7



1× Remote Control (Battery not included Battery Model No CR2032)

Our Services
1 year warranty from the day the product sold. Some technical issue can be solved online.



FAQ

Trade Term:  EXW Shenzhen  or  FOB Shenzhen



Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post



Payment: T/T HSBC, Paypal, Western Union

Company Information



 VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.



The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA),  mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.



VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.



All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.



Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines
